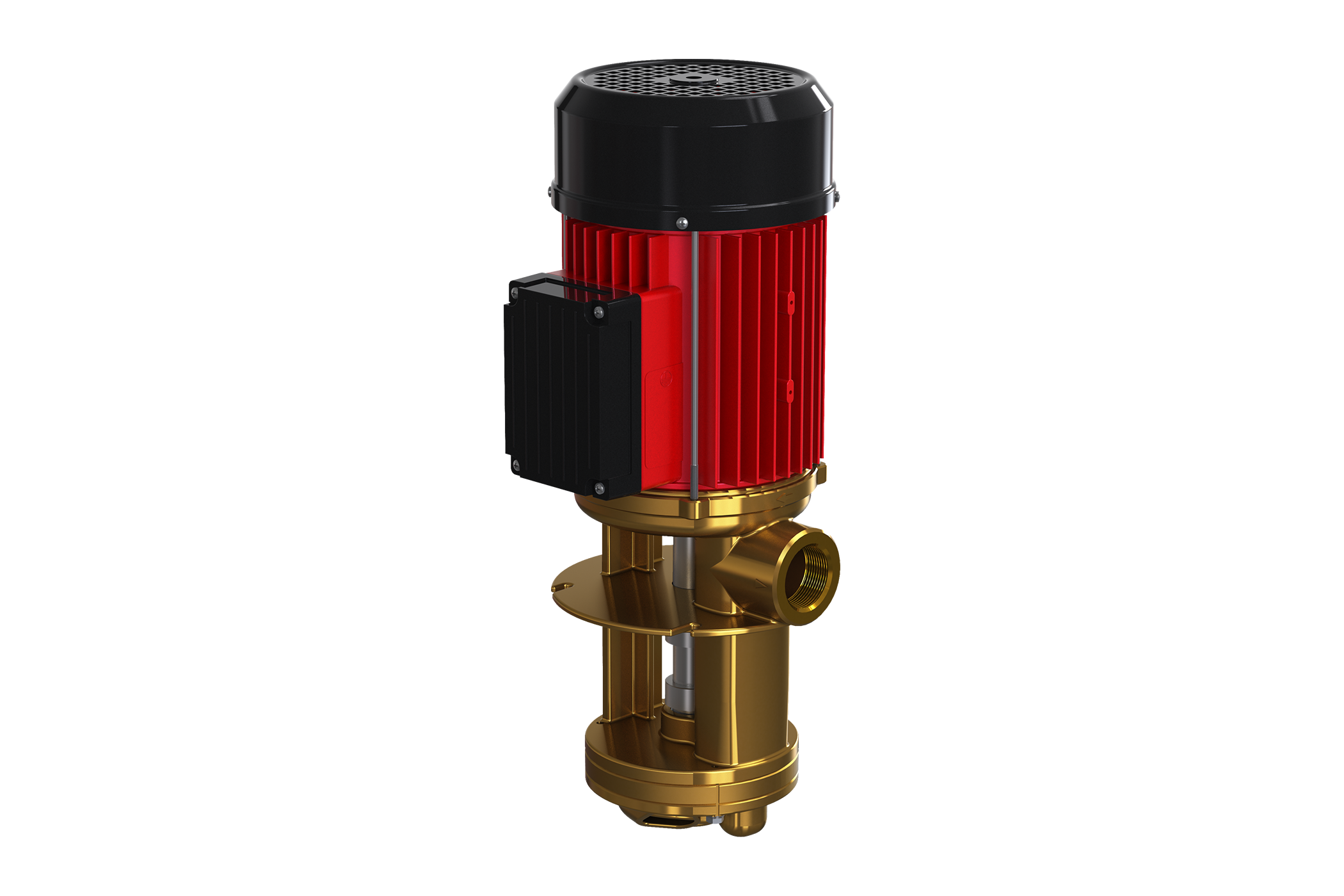

A close-up of a compact, vertical pump with a black and red motor casing and a brass body, set against a plain background.

T-1001/T-2001 Series

  • 50 Hz SI

    Total head/pressure 5.00 - 200.00 m

    Flow rate 20.00 - 200.00 l/min

    • Regenerative turbine pump

    • Vertical close-coupled pump

    • Seal-less

    • Range of submersible depths

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Plastics processing

      • Tool tempering for injection moulding

    • Product type: Regenerative turbine pump

    • Shaft sealing: None

    • Pump design:
      Close-coupled pump
      vertical

    • Typical media:
      Water max. +90 °C
      Oil max. +150 °C, on request max. +200 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–200 m

    • Flow rate: 20–200 l/min

    • Nominal pressure: PN 10

    • Motor current type: 3~

    • Type of motor: Asynchronous motor
      Speed-controlled synchronous motor available on request

    • Nominal motor power: 2.2 – 2.8 kW

    • Nominal motor speed: 2800 rpm

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G 1 ¼”

    • Material designs:
      Brass

    • Explosion protection: None

Enquire now

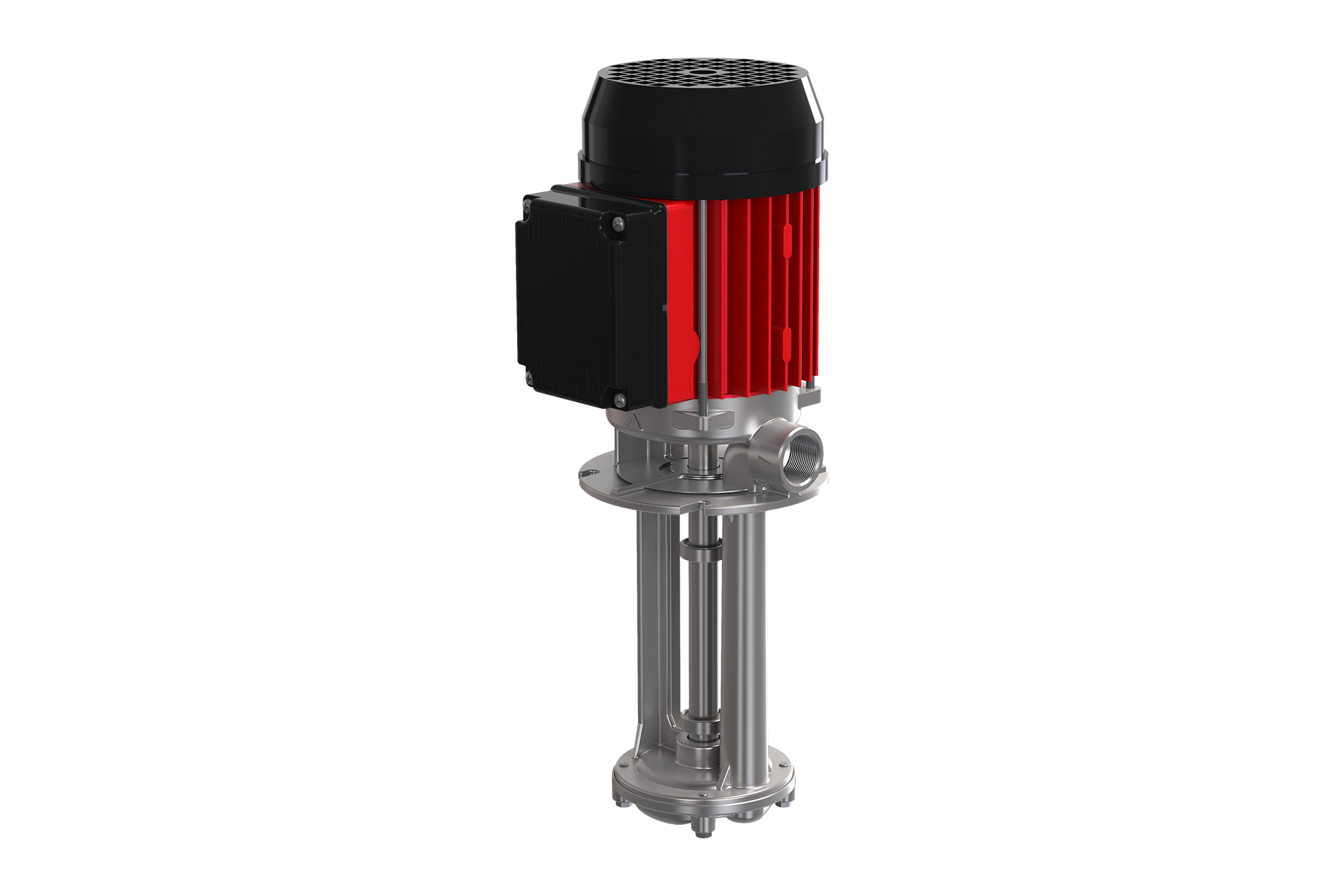

Close-up of an industrial pump or motor with a black and red component, mounted on a metallic stand, attached to a horizontal surface with piping connections.

T-401 Series

  • 50 Hz SI

    Total head/pressure 3.00 - 33.00 m

    Flow rate 3.00 - 38.00 l/min

    • Regenerative turbine pump

    • Vertical close-coupled pump

    • Seal-less

    • Range of submersible depths

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Tool tempering for plastic injection moulding

      • Oil tempering devices

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Plastics processing

      • Tool tempering for injection moulding

    • Product type: Regenerative turbine pump

    • Shaft sealing: None

    • Pump design: Close-coupled pump, vertical

    • Typical media:
      Water max. +90 °C
      Oil max. +150 °C, on request max. +200 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 3–33 m

    • Flow rate: 3–38 l/min

    • Nominal pressure: PN 10

    • Motor current type: 3~

    • Type of motor: Asynchronous motor
      Speed-controlled synchronous motor available on request

    • Nominal motor power: 2.2 – 2.8 kW

    • Nominal motor speed: 2800 rpm

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G 1 ¼”

    • Material designs: Brass

    • Explosion protection: None

Enquire now

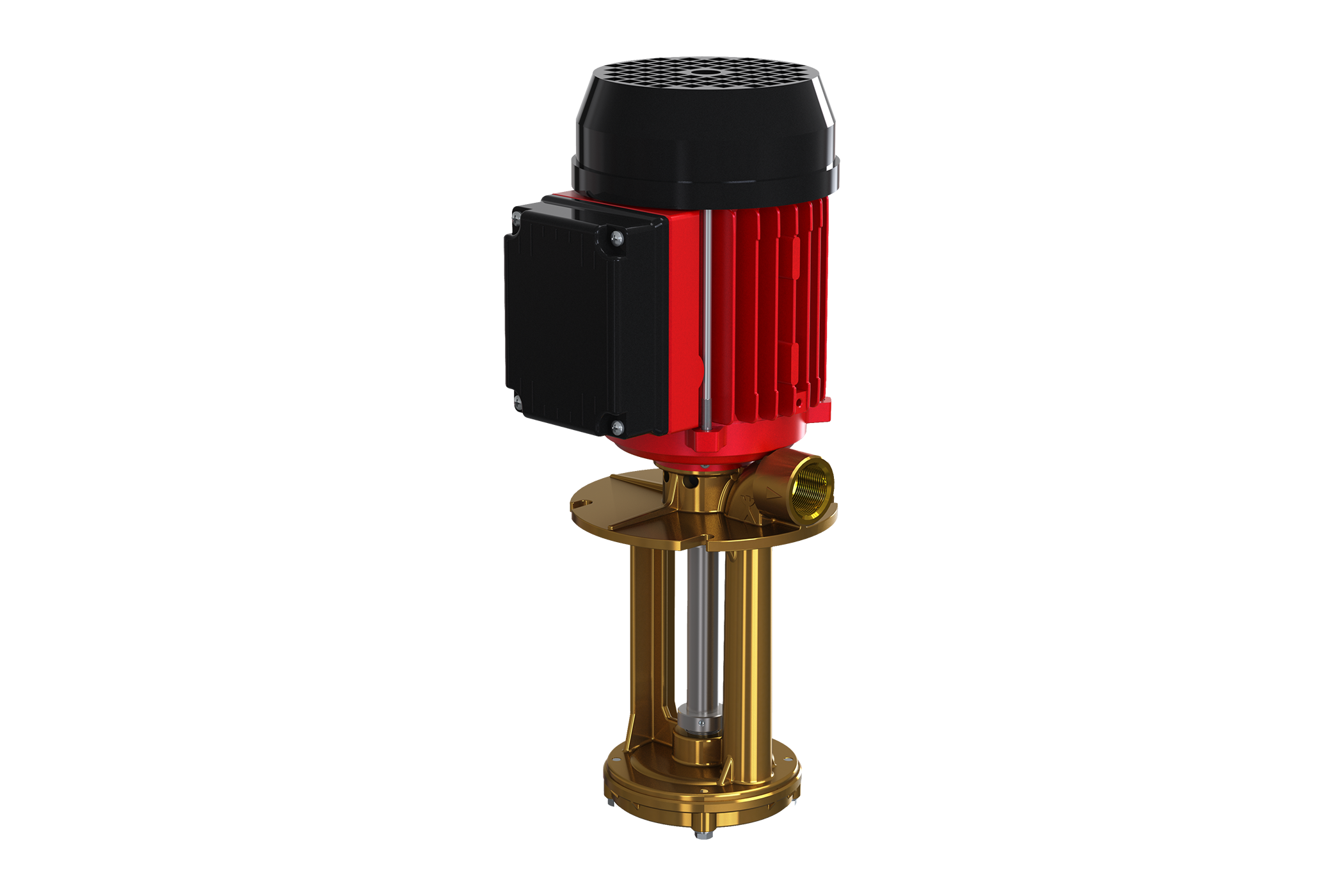

a vertical water pump with a red motor, black top cover, and gold-colored base and piping

TM Series

  • 50 Hz SI

    Total head/pressure 2.00 - 85.00 m

    Flow rate 5.00 - 70.00 l/min

    • Regenerative turbine pump

    • Vertical close-coupled pump

    • Seal-less

    • Range of submersible depths

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Plastics processing

      • Tool tempering for injection moulding

    • Product type: Regenerative turbine pump

    • Shaft sealing: None

    • Pump design: Close-coupled pump, vertical

    • Typical media:
      Water max. +90 °C
      Oil max. +150 °C, on request max. +200 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 2–85 m

    • Flow rate: 5–70 l/min

    • Nominal pressure: PN 10

    • Motor current type1~
      3~

    • Type of motor: Asynchronous motor
      Speed-controlled synchronous motor available on request

    • Nominal motor power: 0.5 – 1.0 kW

    • Nominal motor speed: 2800 rpm

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ¾”

    • Material designs:
      TM–201/.../TM–602: Brass
      TM–701: Bronze

    • Explosion protection: None

Enquire now
Close-up of an industrial mechanical device with a black motor, red casing, brass components, and metal pipes.

TS Series

  • 50 Hz SI

    Total head/pressure 2.00 - 63.00 m

    Flow rate 5.00 - 69.00 l/min

    • Regenerative turbine pump

    • Vertical close-coupled pump

    • Seal-less

    • Range of submersible depths

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Plastics processing

      • Tool tempering for injection moulding

    • Product type: Regenerative turbine pump

    • Shaft sealing: None

    • Pump design: Close-coupled pump, vertical

    • Typical media:
      Water max. +90 °C
      Oil max. +150 °C, on request max. +200 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 2–63 m

    • Flow rate: 5–69 l/min

    • Nominal pressure: PN 10

    • Motor current type:
      1~
      3~

    • Type of motor: Asynchronous motor
      Speed-controlled synchronous motor available on request

    • Nominal motor power: 0.5 – 1.0 kW

    • Nominal motor speed: 2800 rpm

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ¾”

    • Material designs: Stainless steel

    • Explosion protection: None

Enquire now
