50 Hz SI

Total head/pressure 2.00 - 143.00 m

Flow rate 2.00 - 16.00 l/min

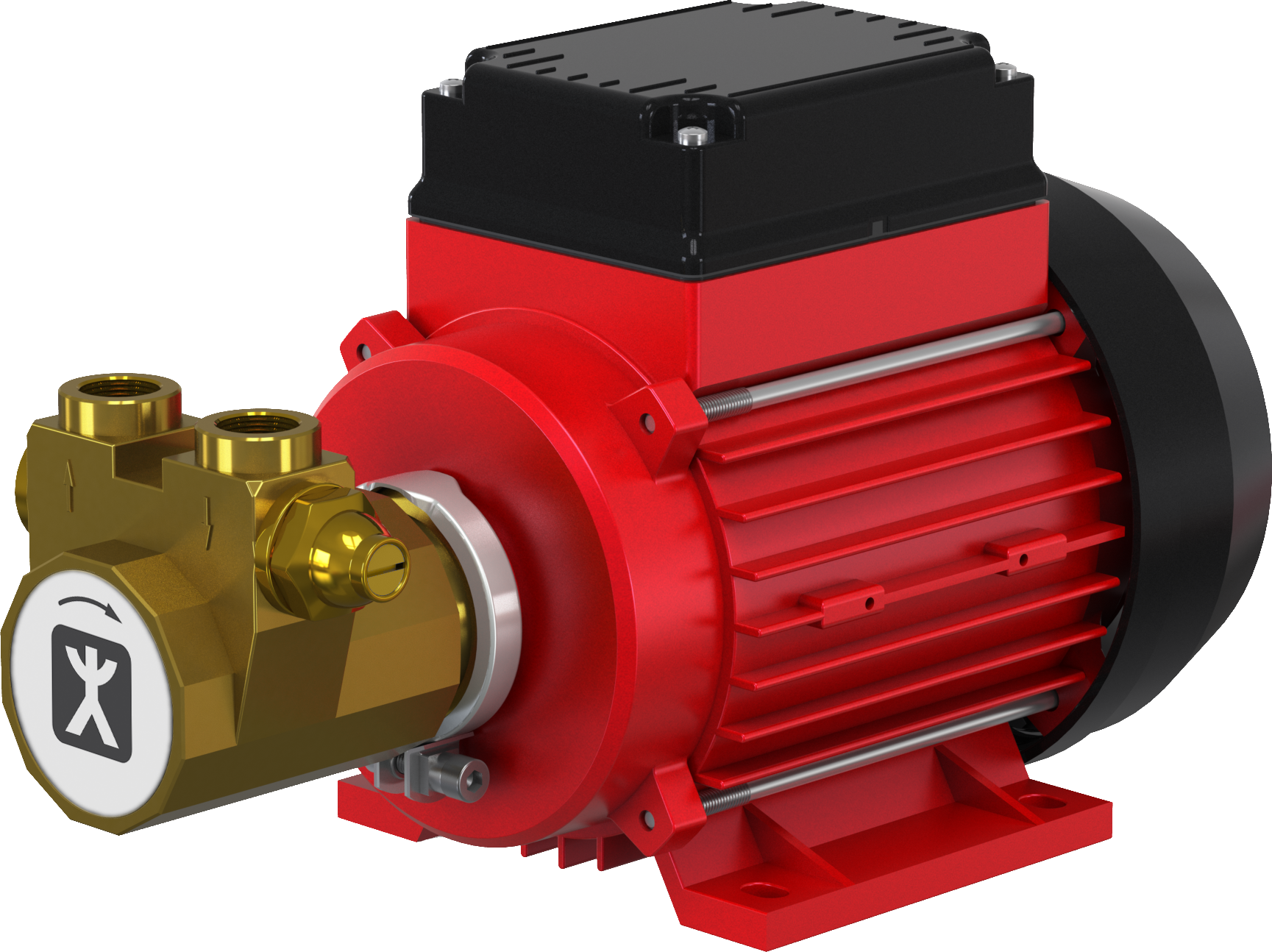

• Roller vane pump

• Bracket pump

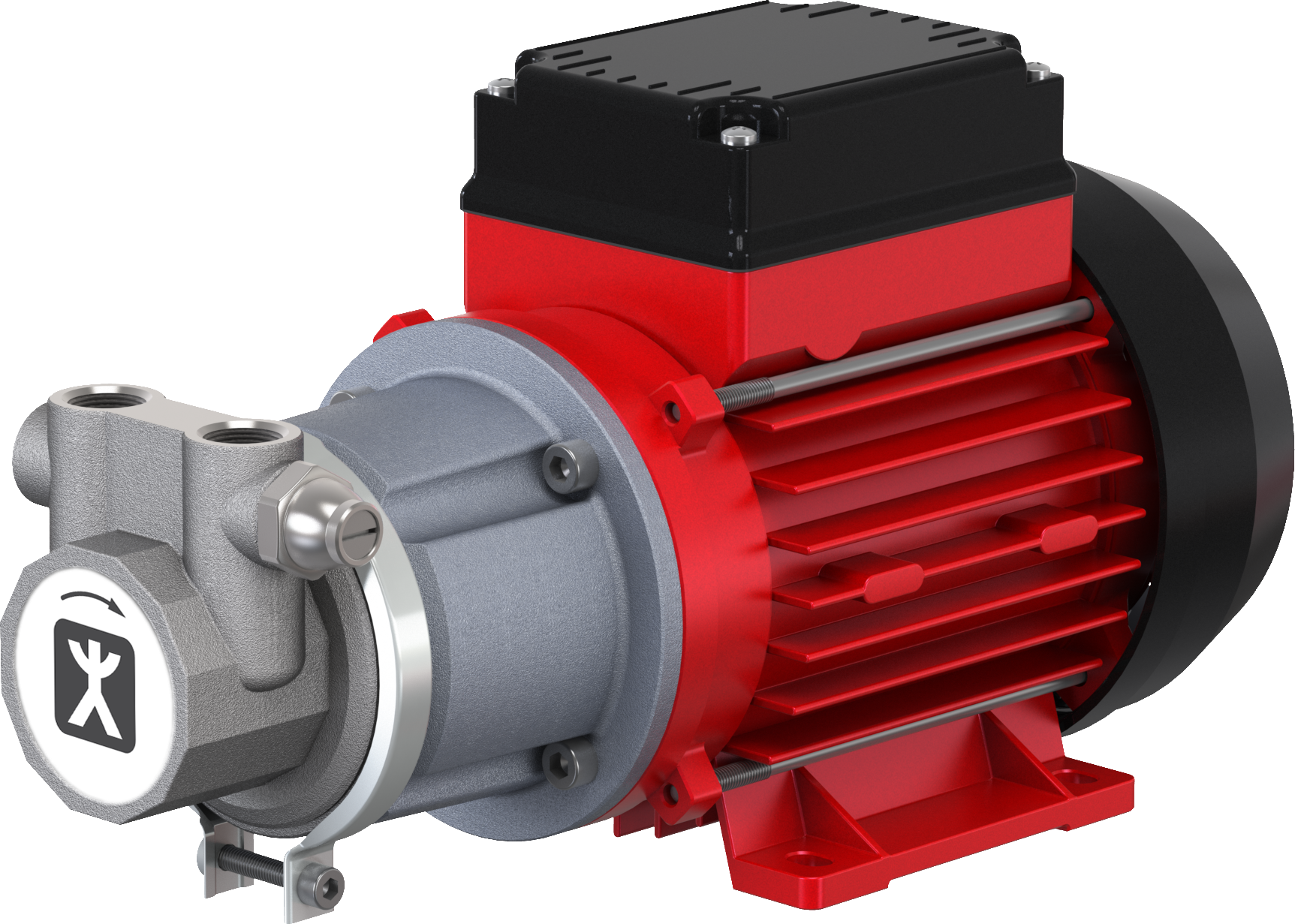

• Magnetic coupling

• Hermetically sealed

• Industrial cooling

  • Welding appliances

• Food and beverage industry

  • Reverse osmosis systems

• Road and rail

  • Windscreen wiper systems

  • Fuel pumping

• Energy technology

  • Pumping of fuel in emergency power plants

• Product type: Roller vane pump

• Shaft sealing/coupling:
  None
  magnetic coupling

• Pump design: Bracket pump

• Typical media: Water max. +70 °C

• Self-priming: Yes

• Variable speed: Frequency-converter-compatible motor on request

• Outlet pressure: 0.2–14.0 bar

• Flow rate: 2–16 l/min

• Nominal pressure: PN 20

• Motor current type:
  1~
  3~

• Nominal motor speed: 2800 rpm

• Suction-side connection design: Threaded

• Suction-side connection size: G ⅜” and G ½”

• Pressure-side connection design: Threaded

• Pressure-side connection size: G ⅜” and G ½”

• Explosion protection:
  None
  II 3G, II 3D
  II 2G, II 2D

• Product data sheet
