50 Hz SI

Total head/pressure 5.00 - 103.00 m

Flow rate 83.00 - 9,000.00 l/min

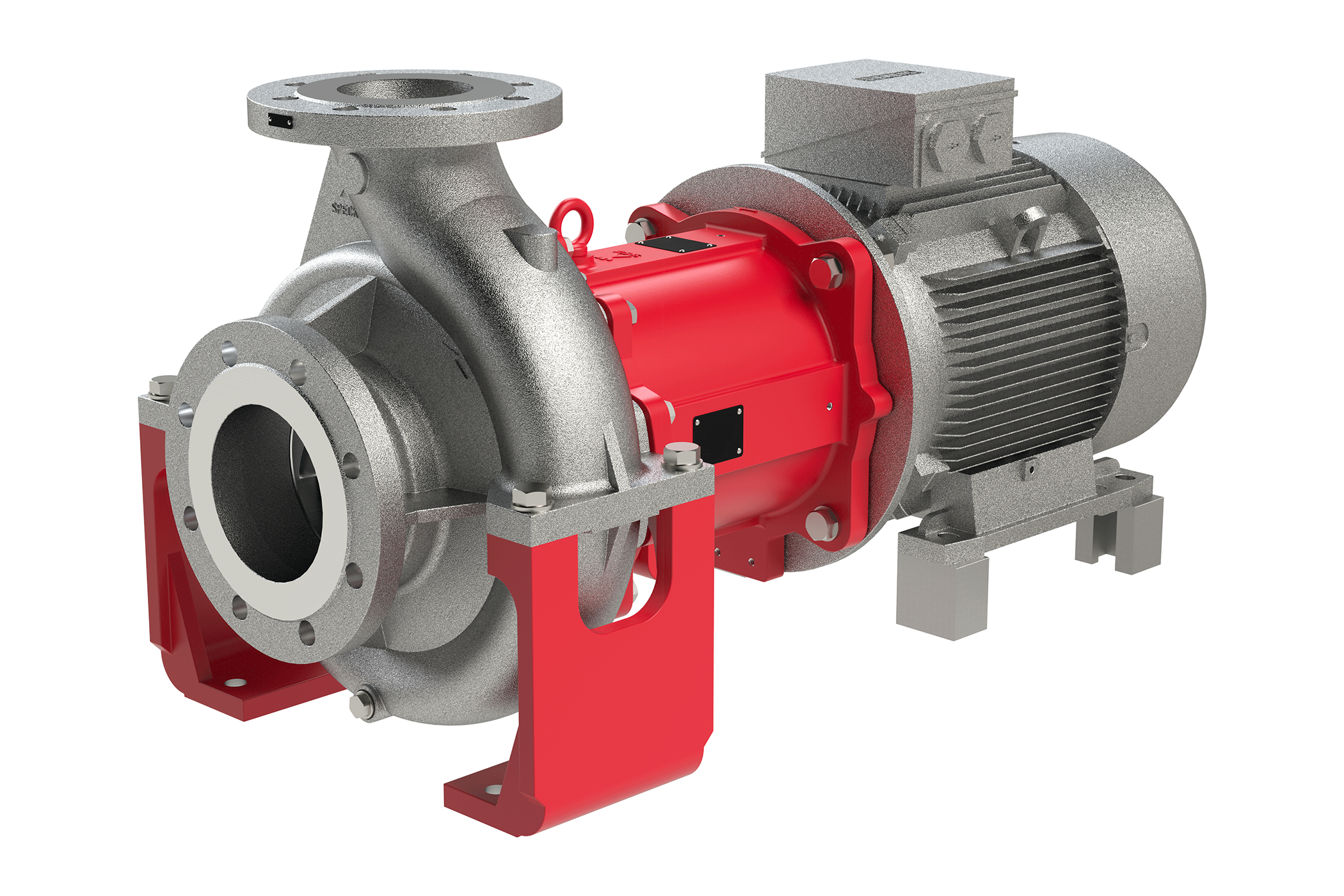

• Centrifugal/heat transfer pump

• Suitable for mineral and synthetic thermal oils

• Magnetic coupling

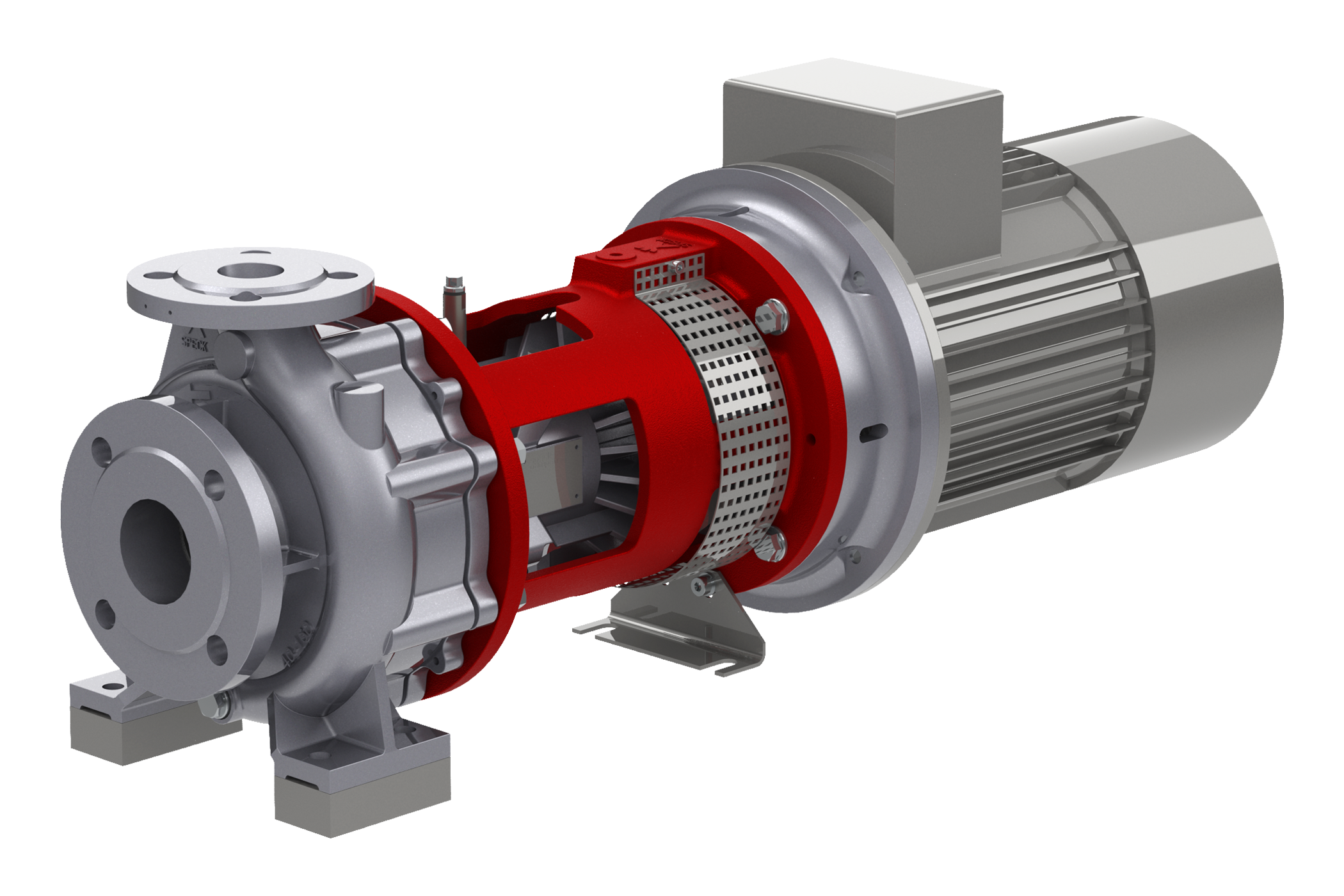

• Free-flying shaft or bracket pump

• Volute casing and inline casing (not all sizes)

• Spheroidal graphite iron version: min -40°C, max. +400 °C

• Version made of stainless steel (not all sizes): min. -100°C, max. 250°C

• TOE modular system

• Industrial cooling

  • Chillers/cooling machines

• Heating and cooling technology

  • Thermal oil ovens

  • Thermal oil systems

  • Calenders

  • Industrial deep-fat fryers

  • Transportation of cooling brine

• Renewable energies

  • Thermal oil or cooling brine in solar parks

• Product type: Centrifugal pump

• Shaft sealing/coupling:
  None
  magnetic coupling

• Pump design: Free-flying shaft or bracket version

• Typical media:
  Spheroidal graphite cast iron version:
  Mineral or synthetic thermal oil min. -40 °C, max. +400 °C

  Spheroidal graphite cast iron version:
  Mineral or synthetic thermal oil min. -100 °C, max. +250 °C

• Self-priming: No

• Variable speed: Frequency-converter-compatible motor on request

• Total head: 5–103 m

• Flow rate: 5.0–540.0 m3/h

• Nominal pressure: PN 16

• Nominal motor speed: 2900 rpm

• Suction-side connection design: Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs

• Suction-side connection size: DN 50 – DN 150

• Pressure-side connection design: Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs

• Pressure-side connection size: DN 32 – DN 125

• Material designs:
  Spheroidal graphite cast iron
  Stainless steel (not all sizes)

• Explosion protection:
  None
  II 3G, II 3D
  II 2G, II 2D

• Brochure – Pumps for heat transfer technology
