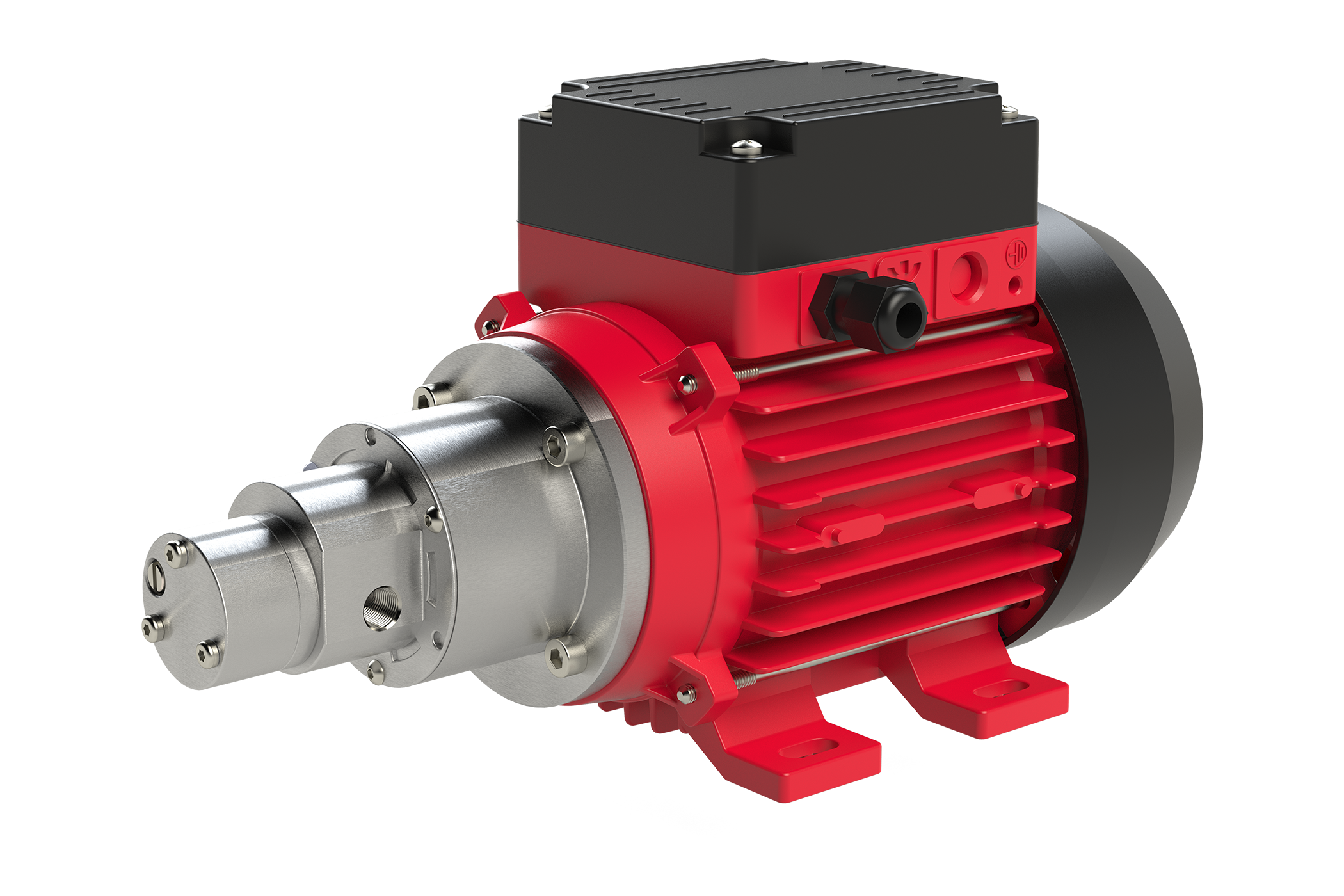

A close-up view of a mechanical electric motor with a red and black body and a silver shaft.

ZY-13-MK Series

  • 50 Hz SI

    Total head/pressure 5.00 - 92.00 m

    Flow rate 1.00 - 3.00 l/min

    • Gear pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Industrial cooling

      • Welding appliances

      • Plasma cutters

      • Industrial lasers

    • Medical technology

      • Lab autoclaves

    • Road and rail

      • Fuel pumping

    • E-mobility

      • HPC – High-power charging (quick charging stations)

    • Product type: Gear pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media: Water/glycol mixture min. -30 °C, max. +70 °C
      Oil max. +70 °C

    • Self-priming: Yes

    • Variable speed: No

    • Outlet pressure: 0.5–9.0 bar

    • Flow rate1–3 l/min

    • Nominal pressure: PN 16

    • Motor current type: 1~
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.12 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ⅛”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ⅛”

    • Explosion protection: None

Enquire now

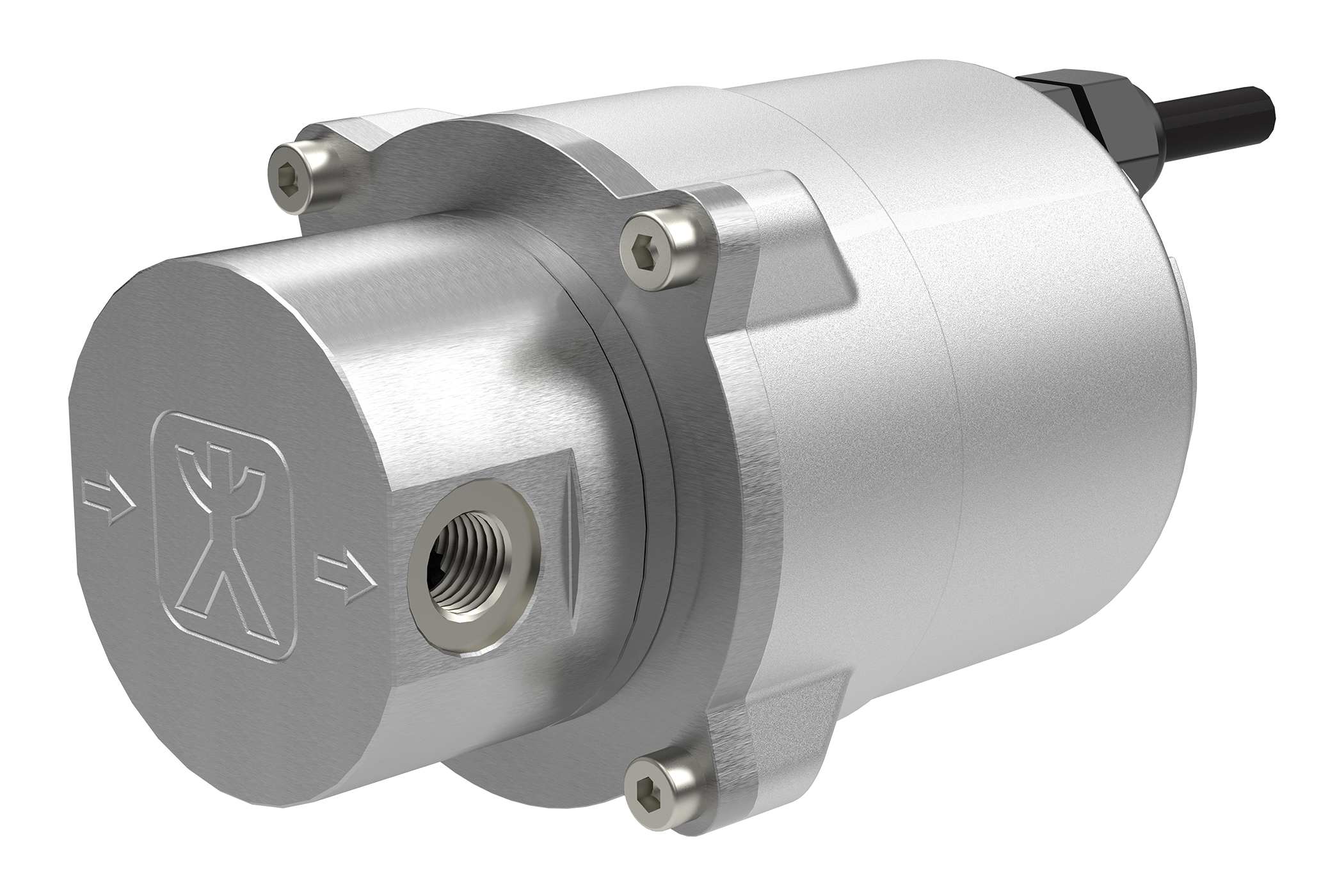

Metal cylindrical component with a warning symbol for high voltage and threaded opening, mounted with screws.

ZY-13-MM Series

  • DC SI

    Total head/pressure 5.00 - 90.00 m

    Flow rate 1.00 - 9.00 l/min

    • Gear pump

    • Canned motor pump

    • Adjustable speed

    • Compact

    • Industrial cooling

      • Welding appliances

      • Plasma cutters

      • Industrial lasers

    • Medical technology

      • Lab autoclaves

    • Road and rail

      • Fuel pumping

    • E-mobility

      • HPC – High-power charging (quick charging stations)

    • Product type: Gear pump

    • Shaft sealing: None

    • Pump design: Canned motor pump

    • Typical media: Water/glycol mixture min. -35 °C, max. +60 °C
      Oil max. +60 °C

    • Self-priming: Yes

    • Variable speed: Yes

    • Outlet pressure: 0.5–8.8 bar

    • Flow rate: 1–9 l/min

    • Nominal pressure: PN 20

    • Motor current type: Direct current

    • Type of motor: DC motor BLDC

    • Nominal motor power: 30 W/80 W

    • Nominal motor voltage: 24 V

    • Nominal motor speed: 1000 rpm – 9000 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ⅛”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ⅛”

    • Explosion protection: None

Enquire now

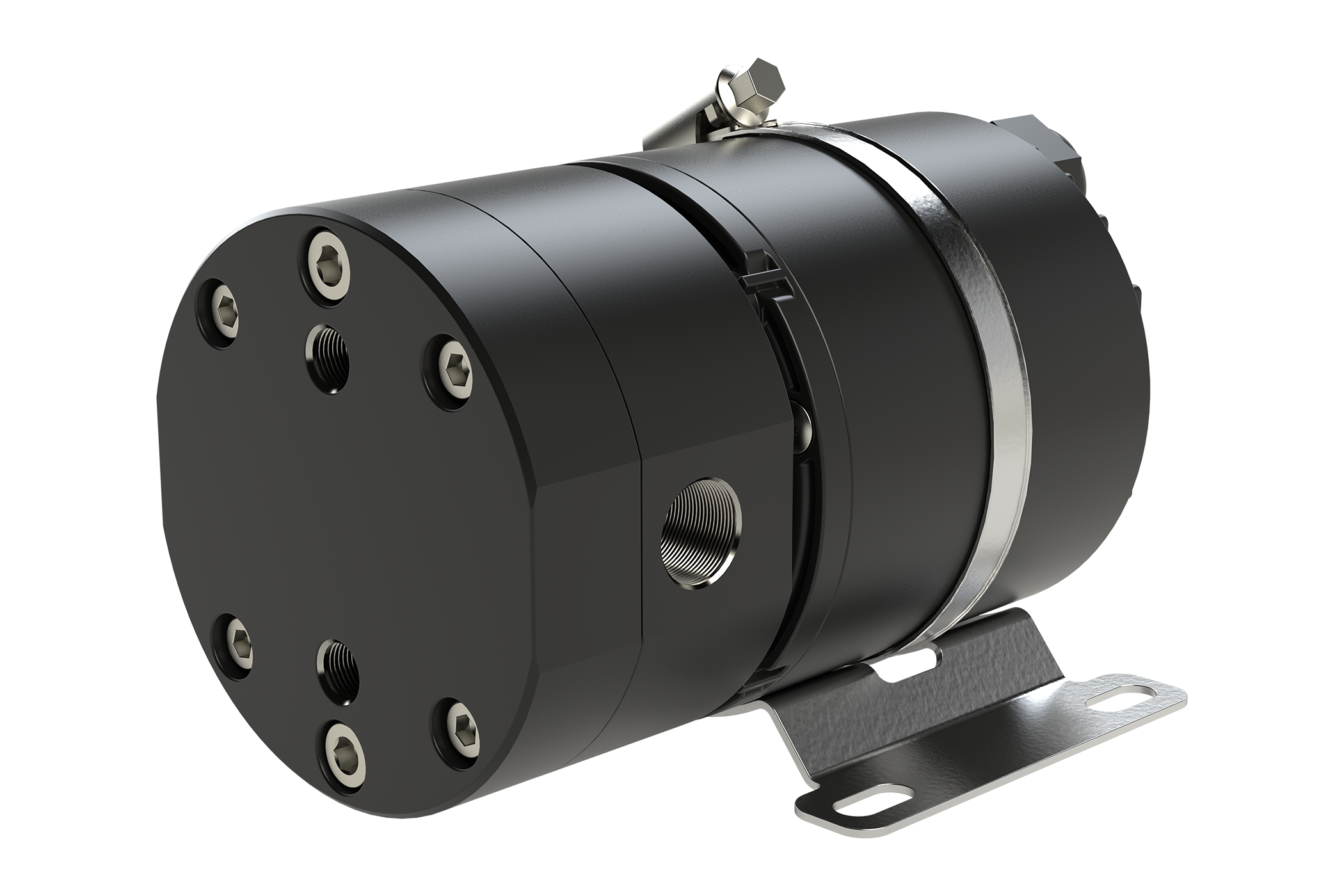

A close-up of a black mechanical or electronic component with multiple screws and mounting points

ZY-20-MM Series

  • DC SI

    Total head/pressure 5.00 - 140.00 m

    Flow rate 1.00 - 9.00 l/min

    • Gear pump

    • Canned motor pump

    • Adjustable speed

    • Compact

    • Industrial cooling

      • Welding appliances

      • Plasma cutters

      • Industrial lasers

    • Road and rail

      • Fuel pumping

    • E-mobility

      • HPC – High-power charging (quick charging stations)

    • Product type: Gear pump

    • Shaft sealing: None

    • Pump design: Canned motor pump

    • Typical media: Oil and fuel min. -40 °C, max. +80 °C

    • Self-priming: Yes

    • Variable speed: Yes

    • Outlet pressure: 0.5–13.8 bar

    • Flow rate: 1–9 l/min

    • Nominal pressure: PN 10

    • Motor current type: Direct current

    • Type of motor: DC motor BLDC

    • Nominal motor power: 150 W

    • Nominal motor voltage:
      24 V
      48 V on request

    • Nominal motor speed: 1000 rpm – 6000 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: M 18 x 1.5 or M 16 x 1.5

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: M 18 x 1.5 or M 16 x 1.5

    • Explosion protection: None

Enquire now

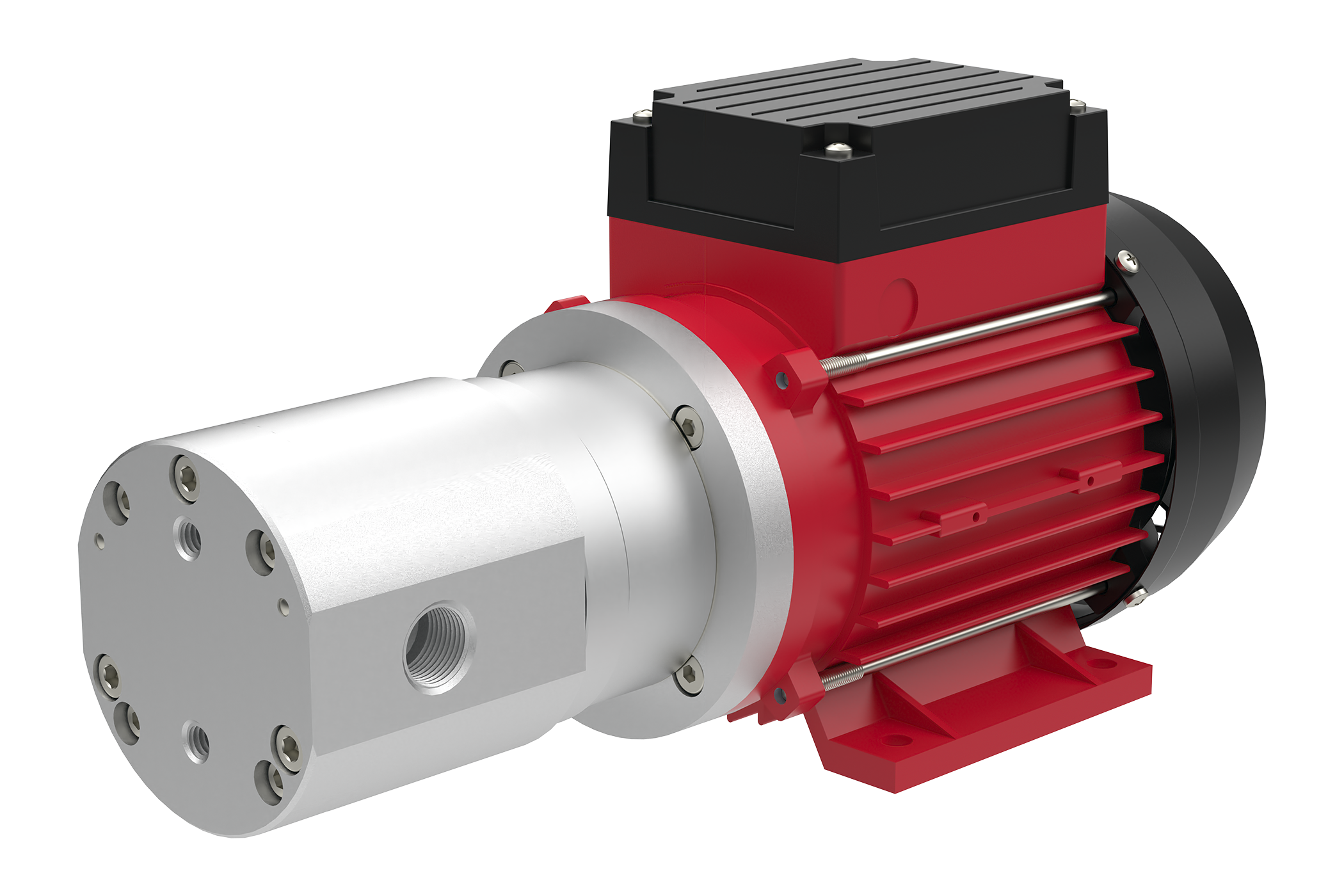

A close-up of a mechanical device, likely a motor or actuator, featuring a black, red, silver, and metallic components with fins and mounting points.

ZY-2827-MK Series

  • 50 Hz SI

    Total head/pressure 5.00 - 32.00 m

    Flow rate 18.00 - 18.00 l/min

    • Gear pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Industrial cooling

      • Welding appliances

      • Plasma cutters

      • Industrial lasers

    • Road and rail

      • Fuel pumping

    • E-mobility

      • HPC – High-power charging (quick charging stations)

    • Product type: Gear pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media: Oil and fuel min. -40 °C, max. +80 °C

    • Self-priming: Yes

    • Variable speed: Frequency converter-compatible motor on request

    • Outlet pressure: 0.5–3.1 bar

    • Flow rate: 18–18 l/min

    • Nominal pressure: PN 10

    • Motor current type:
      1~
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.25 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ½”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ½”

    • Explosion protection: None

Enquire now
