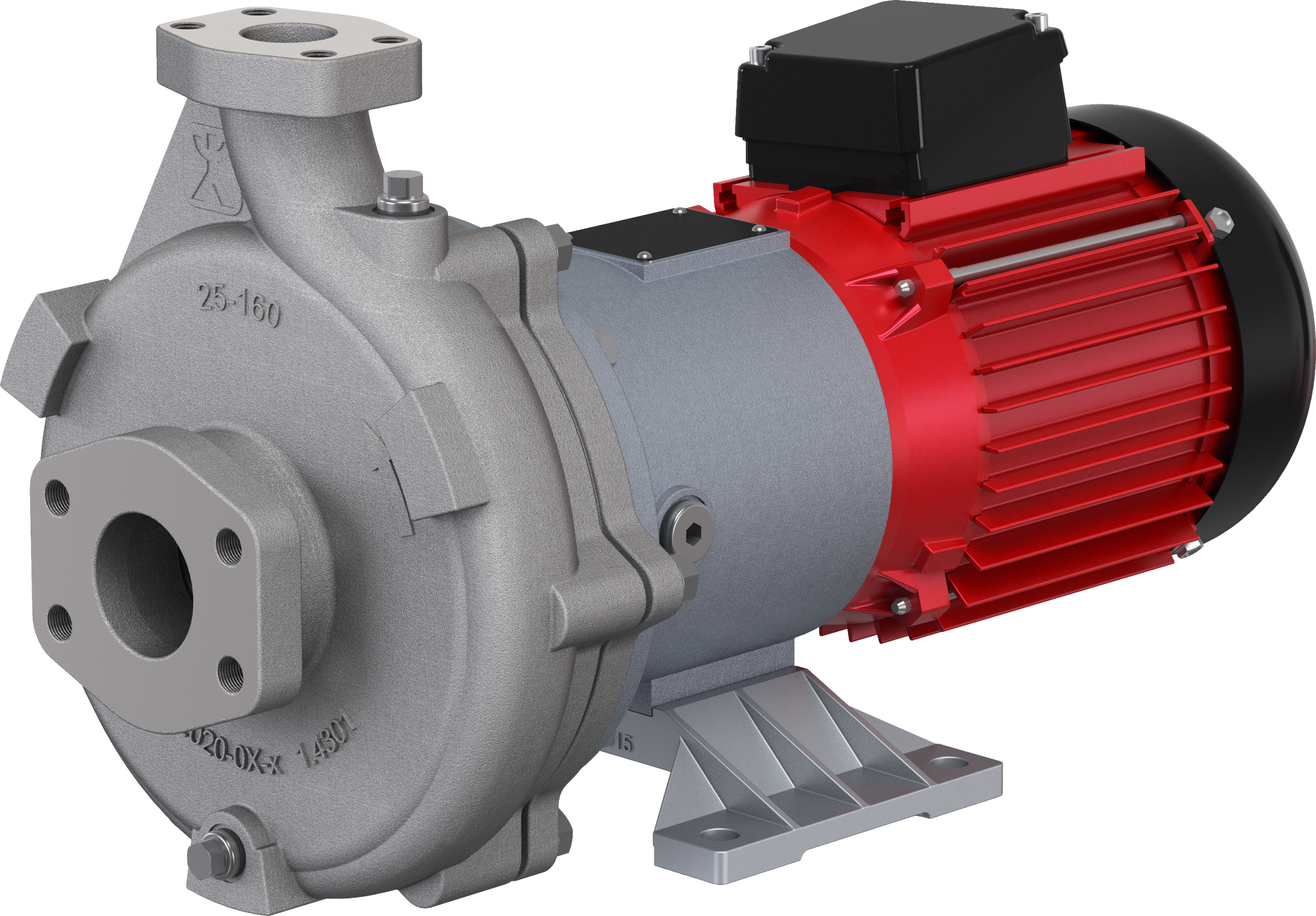

A close-up of a mechanical pump with gray and red components, showing detailed metal parts and mounting base.

MU (MK/PM) Series

  • 50 Hz SI

    Total head/pressure 4.00 - 98.00 m

    Flow rate 33.00 - 417.00 l/min

    • Centrifugal pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Operation with a frequency converter

    • Motor efficiency level better than IE4

    • Temperature control

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for plastic injection moulding

    • Plastics processing

      • Tool tempering for injection moulding

    • Product type: Centrifugal pump

    • Shaft sealing/coupling: None
      magnetic coupling

    • Pump design:Bracket pump

    • Typical media: Water max. +160 °C
      Oil min. -100 °C, max. +300 °C

    • Self-priming: No

    • Variable speed: Yes

    • Total head: 4–98 m

    • Flow rate: 2.0–25.0 m3/h

    • Nominal pressure: PN 16

    • Motor current type: 3~

    • Type of motor: Synchronous motor

    • Nominal motor power: 1.5 kW – 5.3 kW

    • Nominal motor speed: 1000 – 4000 rpm

    • Suction-side connection design: Threaded
      SAE

    • Suction-side connection size:
      G 1 ½”
      SAE 1 ½”

    • Pressure-side connection design:
      Threaded
      SAE

    • Pressure-side connection size:
      G 1”
      SAE 1”

    • Material designs:
      Stainless steel
      Spheroidal graphite
      cast iron

    • Explosion protection: None

Enquire now

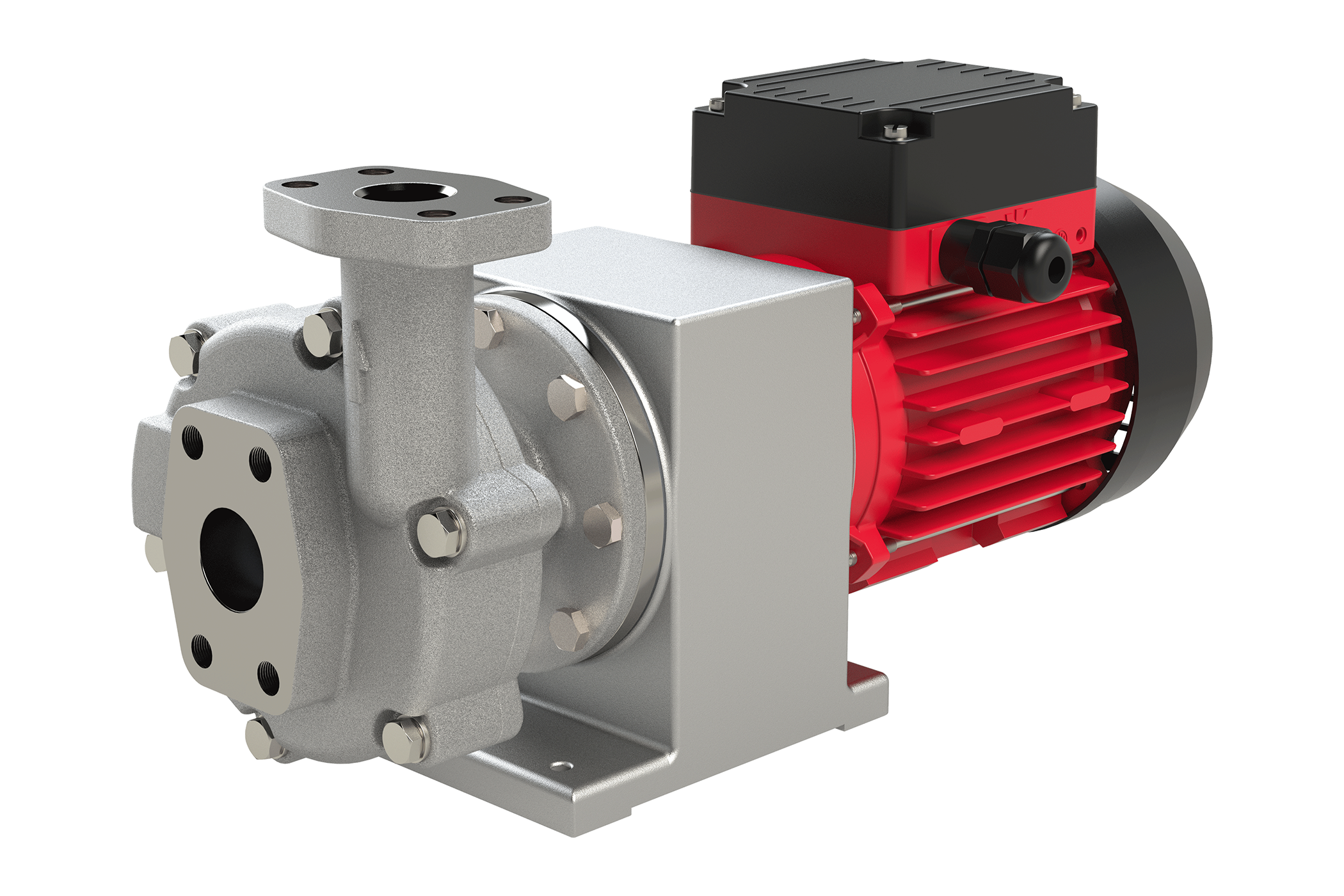

A mechanical pump with metallic and red components, featuring a black electrical box on top.

MY (MK-PM) Series

  • 50 Hz SI

    Total head/pressure 3.00 - 37.00 m

    Flow rate 5.00 - 128.00 l/min

    • Centrifugal pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Operation with a frequency converter

    • Motor efficiency level better than IE4Item description

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Industrial processes up to -100°C

    • Product type: Centrifugal pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media: Water max. +160 °C, on request max. +200 °C
      Oil max. +350 °C

    • Self-priming: No

    • Variable speed: Yes

    • Total head: 3–37 m

    • Flow rate: 5.0–128.0 l/min

    • Nominal pressure: PN 10

    • Motor current type: 3~

    • Type of motor: Synchronous motor

    • Nominal motor power: 0.5 kW

    • Nominal motor speed: 3000–6000 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ¾”, SAE 1 ¾”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ¾”, SAE frac34;”

    • Material designs:
      Stainless steel

    • Explosion protection: None

Enquire now
