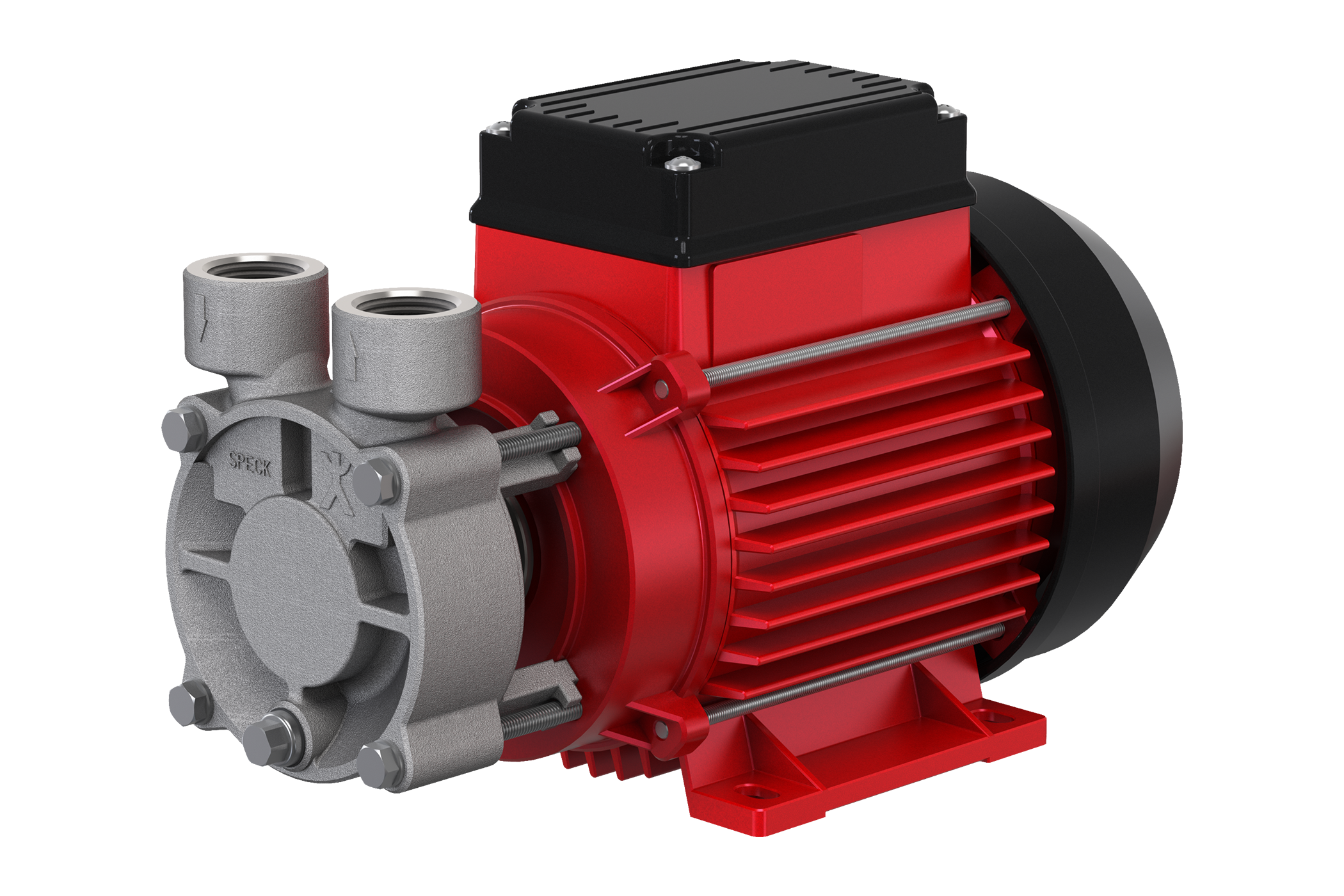

A red and black industrial pump with metal pipes and cooling fins.

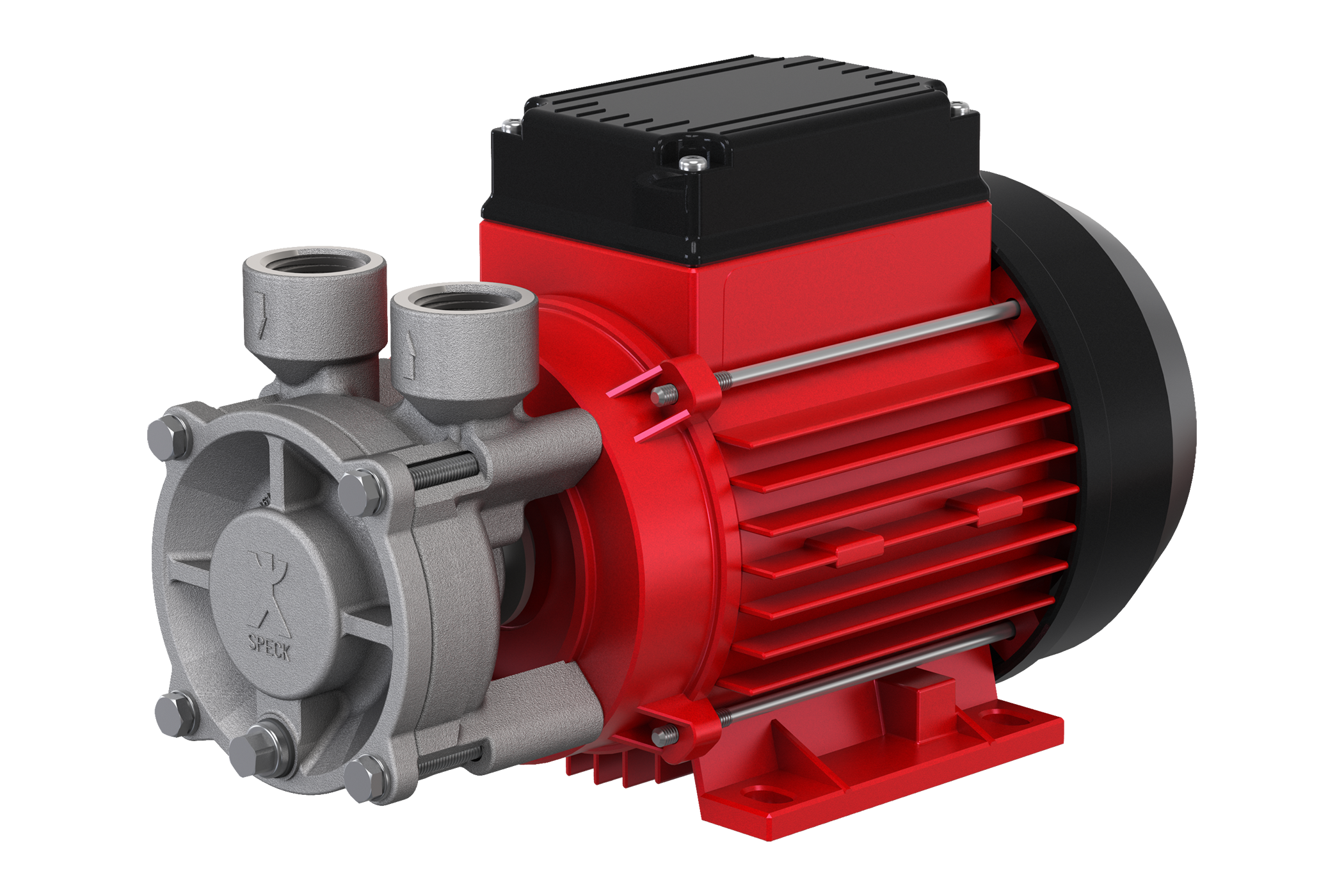

CSY-4081 Series

  • 50 Hz SI

    Total head/pressure 5.00 - 63.00 m

    Flow rate 2.00 - 33.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Plastics processing

      • Tool tempering for injection moulding

    • Energy technology

      • Delivery and circulation in closed circuits

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: Yes

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–63 m

    • Flow rate: 2–33 l/min

    • Nominal pressure: PN 10

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.75 – 1.00 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ¾”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ¾”

    • Material designs:
      Stainless steel
      Bronze

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
A close-up view of an industrial pump with a red motor and gray metal components.

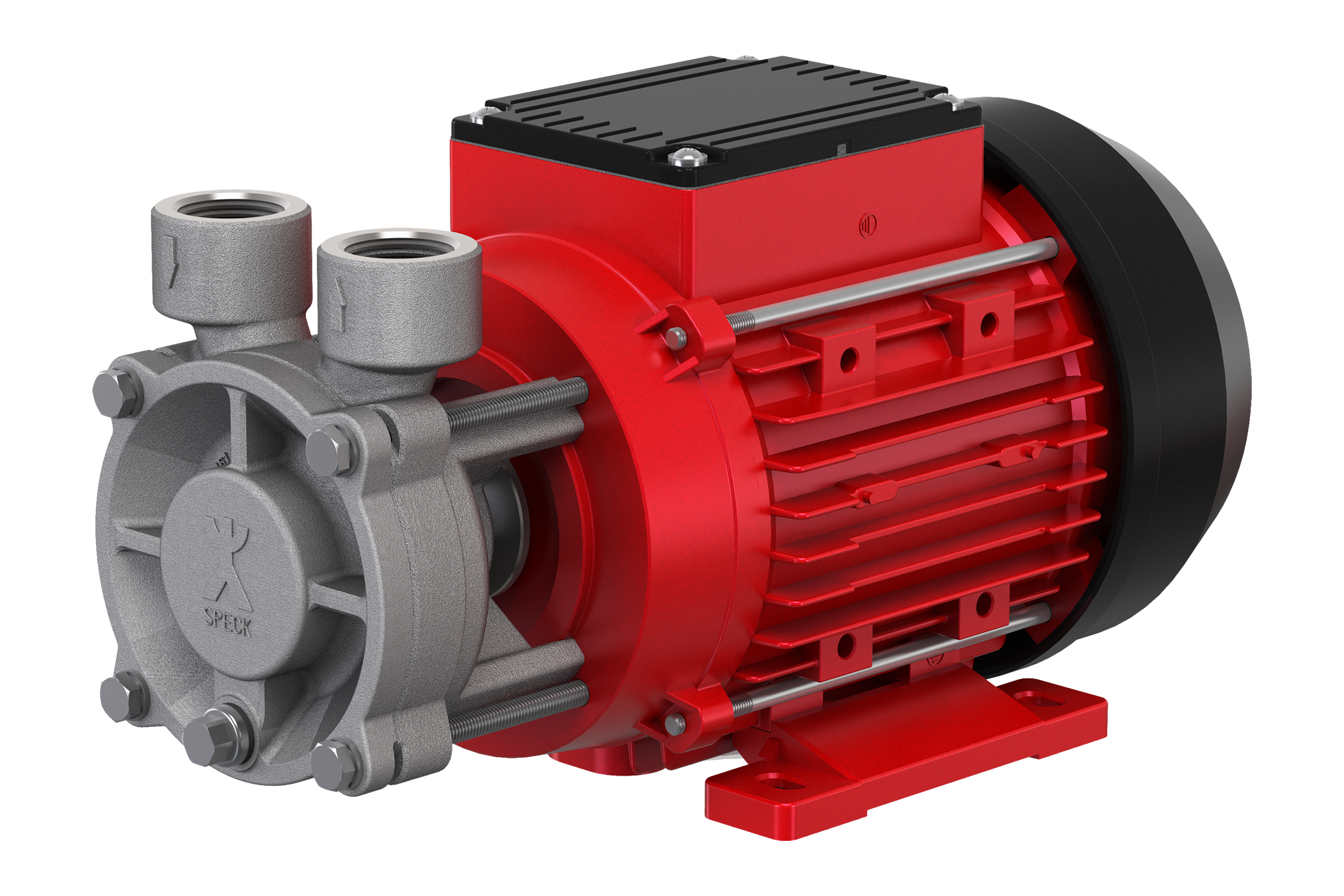

CY-4081 Series

  • 50 Hz SI

    Total head/pressure 3.00 - 57.00 m

    Flow rate 3.00 - 55.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Plastics processing

      • Tool tempering for injection moulding

    • Energy technology

      • Delivery and circulation in closed circuits

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 3–57 m

    • Flow rate: 3–55 l/min

    • Nominal pressure: PN 12

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.55 – 1.00 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT

    • Suction-side connection size:
      Top/top: G ¾”
      ax/top G 1”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT

    • Pressure-side connection size:
      Top/top: G ¾”
      ax/top G ¾”

    • Material designs:
      Stainless steel
      Brass

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
A 3D rendering of a red industrial electric motor with a silver gearbox attached to the front.

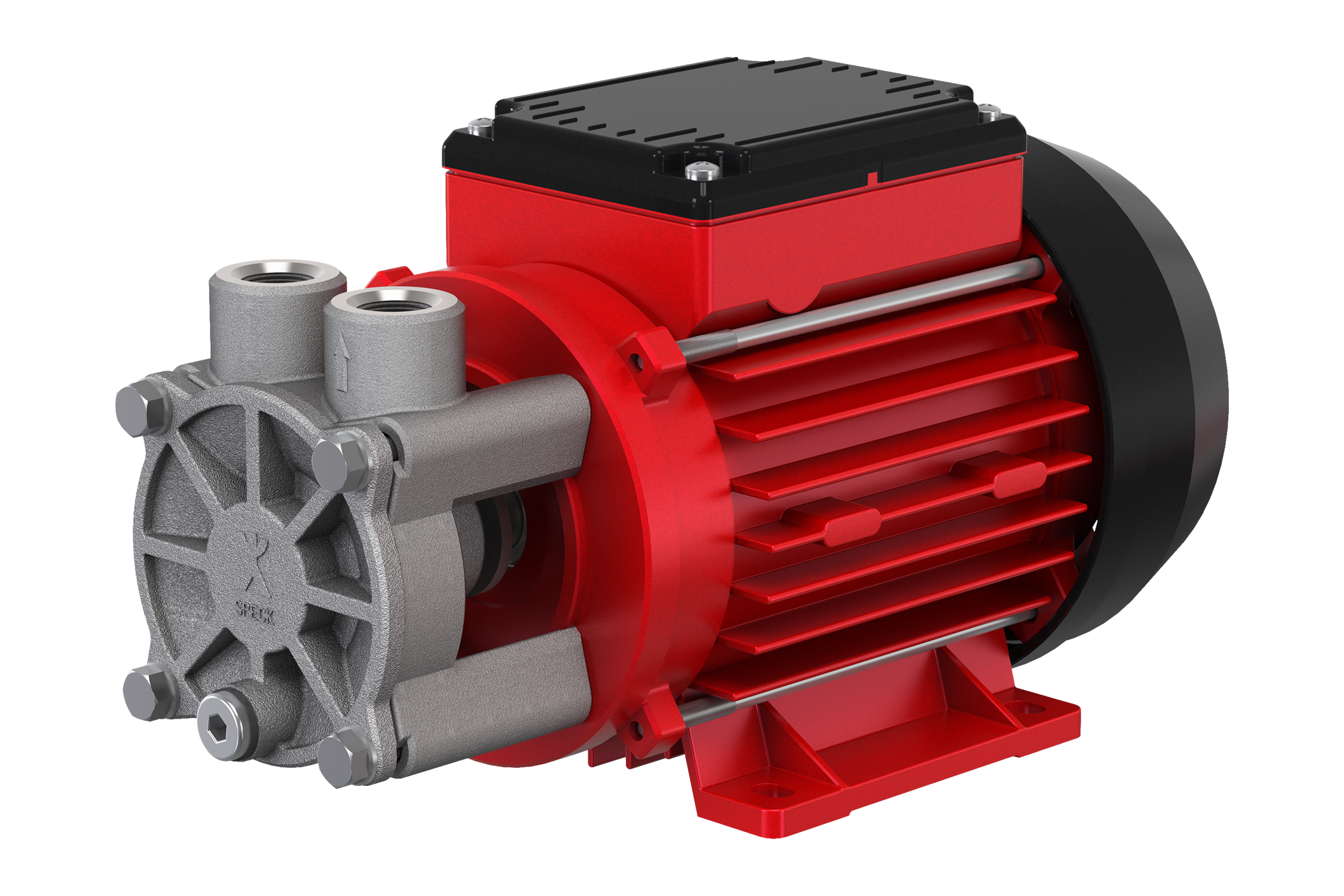

NPY-2051 Series

  • 50 Hz SI

    Total head/pressure 3.00 - 51.00 m

    Flow rate 2.00 - 30.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Welding appliances

      • Plasma cutters

      • Industrial lasers

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 3–51 m

    • Flow rate: 2–30 l/min

    • Nominal pressure:PN 10

    • Motor current type:
      1~
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.25 – 0.50 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT

    • Suction-side connection size:
      Top/top: G ⅜” or G ½”
      ax/top G 1”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT

    • Pressure-side connection size:
      Top/top: G ⅜” or G ½”
      ax/top G ⅜” or G ½”

    • Material designs:
      Stainless steel
      Brass
      PPS

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
Red and gray industrial pump with black motor.

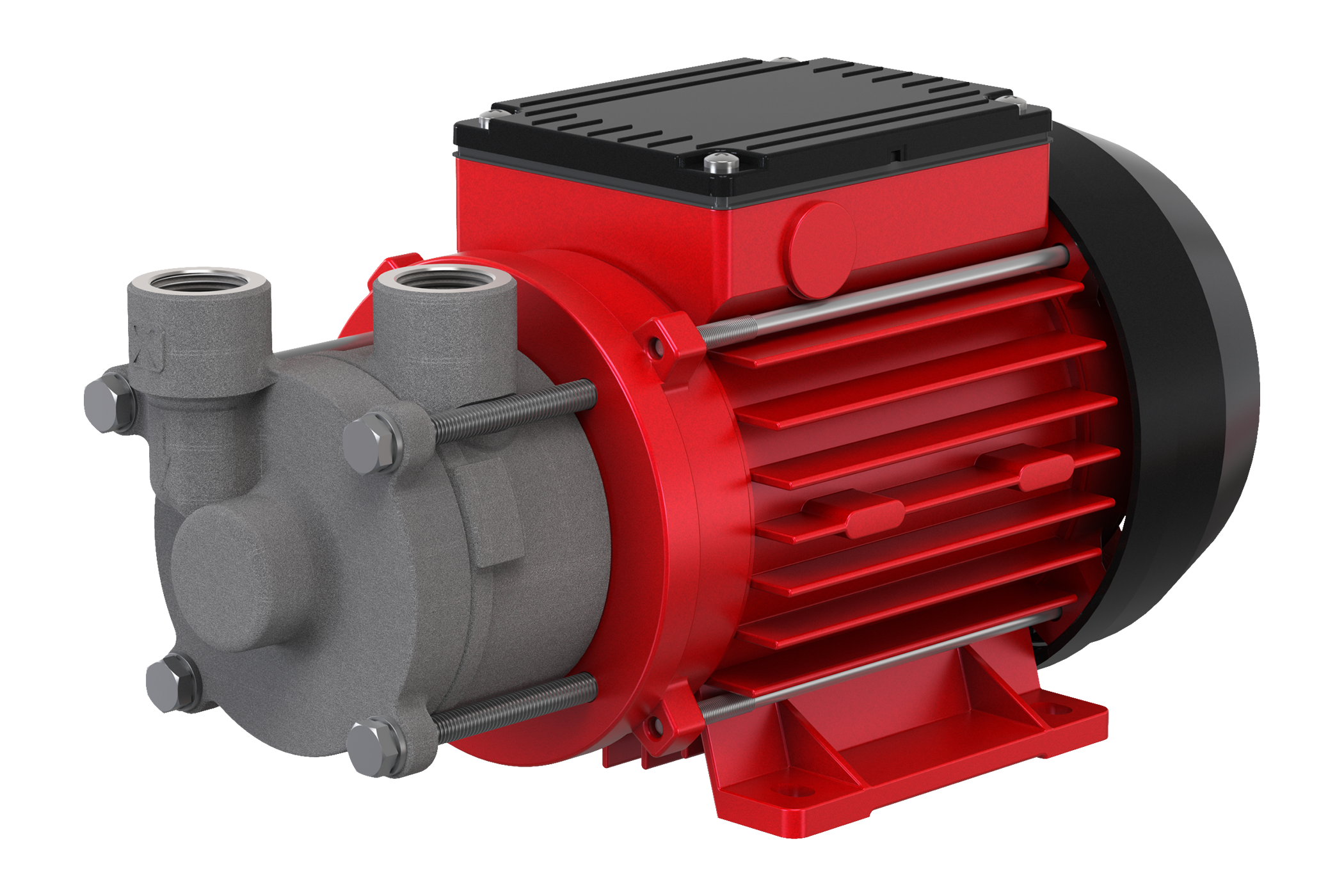

PY-2071 Series

  • 50 Hz SI

    Total head/pressure 2.00 - 35.00 m

    Flow rate 1.00 - 17.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Industrial cooling

      • Chillers/cooling machines

    • Food and beverage industry

      • Curing systems

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: Yes

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 2–35 m

    • Flow rate: 1–17 l/min

    • Nominal pressure: PN 10

    • Motor current type:
      1~
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.25 – 0.50 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ⅜” or G ½”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ⅜” or G ½”

    • Material designs:
      Stainless steel
      Brass
      PPS

    • Explosion protection: None

Enquire now
A detailed industrial pump with a metallic body, connected to a motor with red cooling fins.

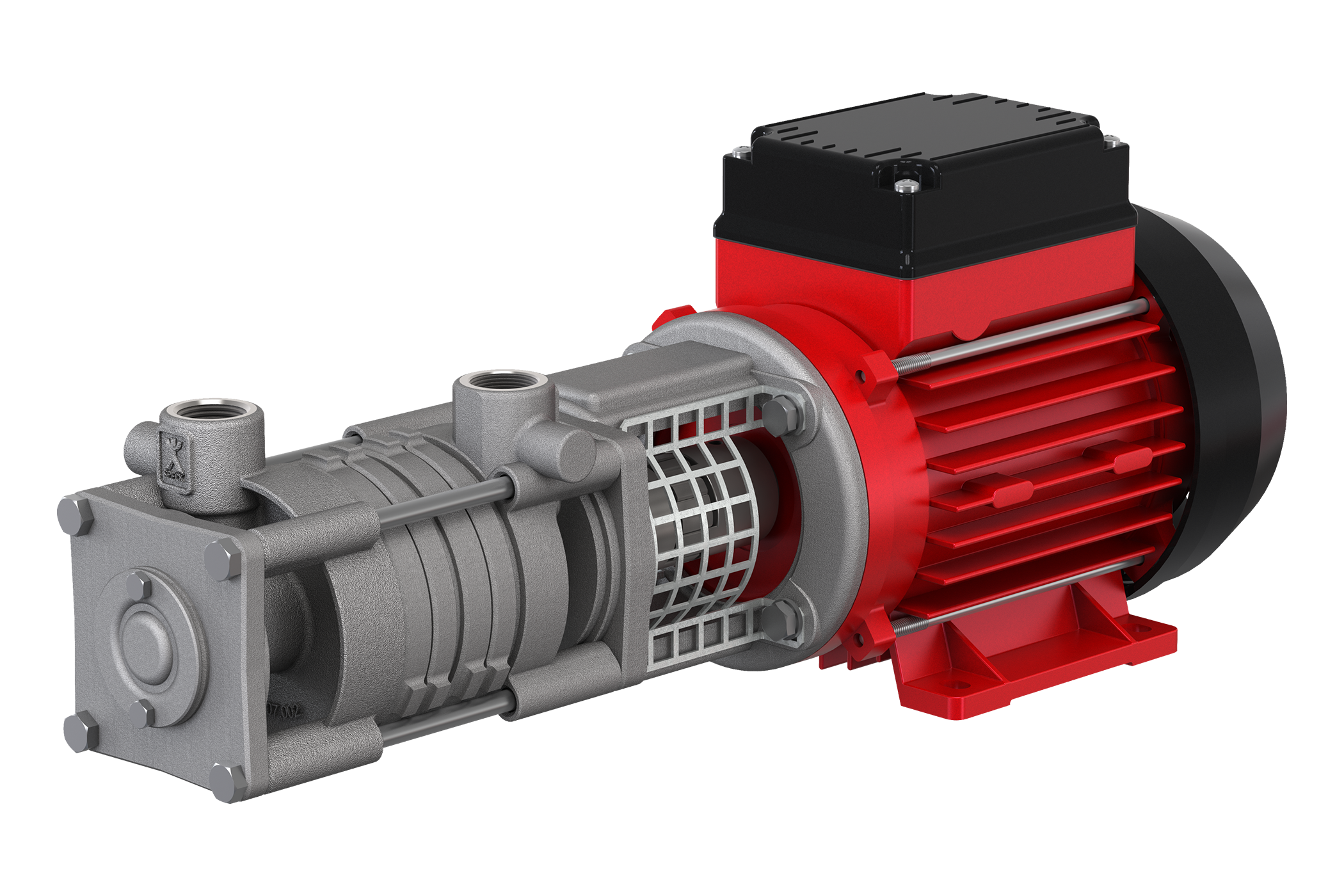

PY-227 Series

  • 50 Hz SI

    Total head/pressure 7.00 - 115.00 m

    Flow rate 1.00 - 16.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Mechanical seal

    • Multi-stage

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Industrial cooling

      • Chillers/cooling machines

    • Food and beverage industry

      • Curing systems

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Bracket pump

    • Typical media:
      Water max. +140 °C
      Oil max. +140 °C

    • Self-priming: Yes

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 7–115 m

    • Flow rate: 1–16 l/min

    • Nominal pressure: PN 10

    • Motor current type:
      1~
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.25 – 1.10 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ½”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ½”

    • Material designs:
      Stainless steel
      Brass

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
Close-up of a red and gray industrial pump with cooling fins and mounting base.

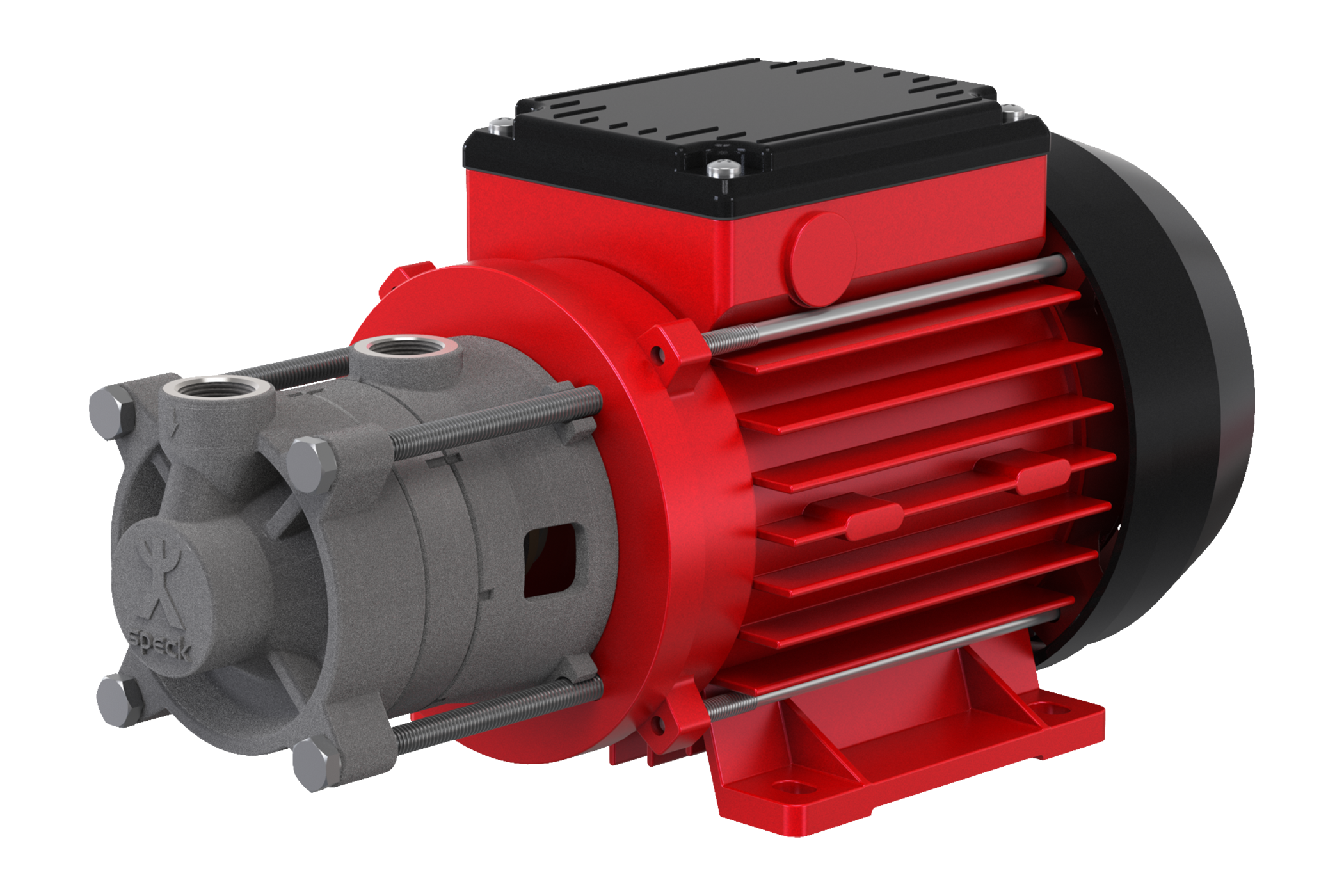

QY-1042 Series

  • 50 Hz SI

    Total head/pressure 2.00 - 70.00 m

    Flow rate 1.00 - 12.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Two-stage

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Food and beverage industry

      • Beverage filling plants

      • Reverse osmosis systems

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 2–70 m

    • Flow rate: 1–12 l/min

    • Nominal pressure: PN 10

    • Motor current type:
      1~
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.35 – 0.50 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ⅜”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ⅜”

    • Material designs:
      Stainless steel

    • Explosion protection: None

Enquire now
A detailed digital rendering of an industrial electric motor with a silver metallic body and a black and red housing.

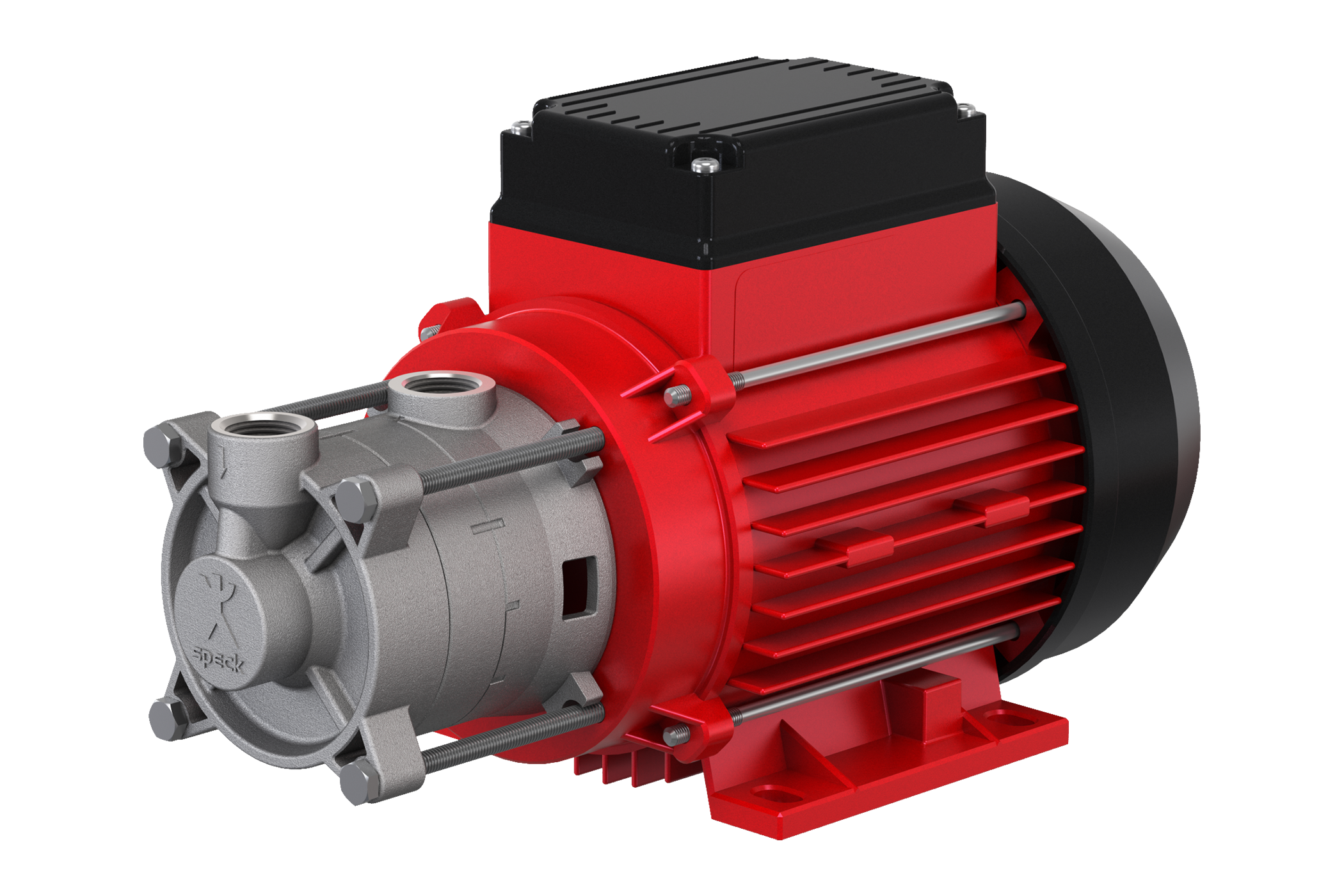

QY-2052 Series

  • 50 Hz SI

    Total head/pressure 5.00 - 90.00 m

    Flow rate 1.00 - 26.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Two-stage

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Food and beverage industry

      • Beverage filling plants

      • Reverse osmosis systems

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–90 m

    • Flow rate: 1–26 l/min

    • Nominal pressure: PN 16

    • Motor current type:
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.75 – 1.1 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ½”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ½”

    • Material designs:
      Stainless steel

    • Explosion protection: None

Enquire now
A detailed digital rendering of a red and gray industrial electric motor with cooling fins and mounting base.

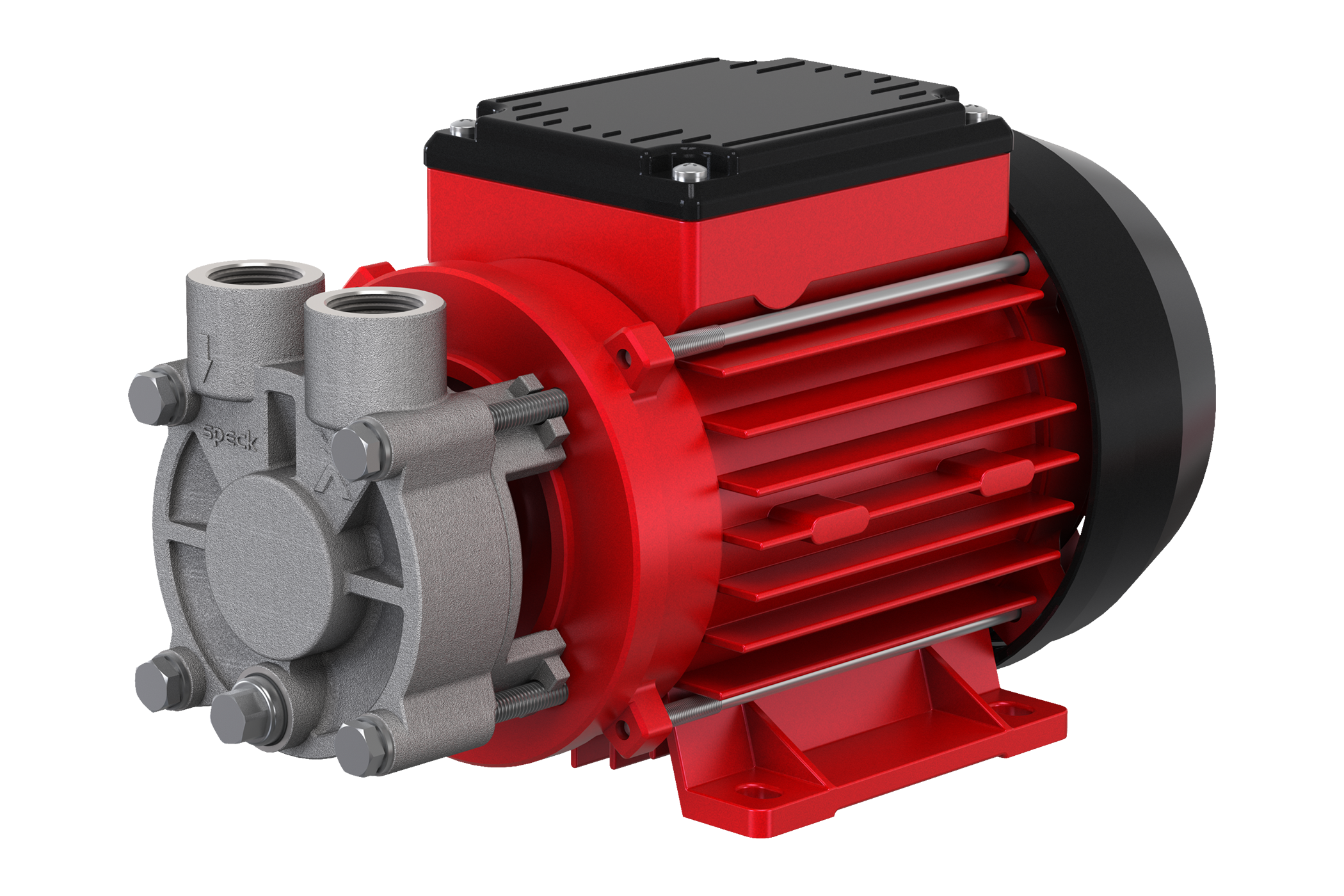

Y-2051 Series

  • 50 Hz SI

    Total head/pressure 5.00 - 47.00 m

    Flow rate 2.00 - 24.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Welding appliances

      • Plasma cutters

      • Industrial lasers

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +140 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–47 m

    • Flow rate: 2–24 l/min

    • Nominal pressure: PN 10

    • Motor current type:
      1~
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.35 – 0.5 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT

    • Suction-side connection size:
      Top/top: G ½”
      ax/top G 1”

    • Pressure-side connection design: Thread: G, NPT

    • Pressure-side connection size:
      Top/top: G ½”
      ax/top G ½”

    • Material designs:
      Stainless steel
      Brass
      PPS

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
A red industrial air compressor with gray and black components and ventilation fins.

Y-2951 Series

  • 50 Hz SI

    Total head/pressure 2.00 - 40.00 m

    Flow rate 1.00 - 12.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Welding appliances

      • Plasma cutters

      • Industrial lasers

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +80 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 2–40 m

    • Flow rate: 1–12 l/min

    • Nominal pressure: PN 6

    • Motor current type:
      1~
      3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.12 – 0.25 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size: G ¼”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G ¼”

    • Material designs:
      Stainless steel
      Brass
      PPS

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
A red industrial pump with a black motor mounted on a red base, connected to a metallic gray component with multiple ports.

Y-4081 Series

  • 50 Hz SI

    Total head/pressure 5.00 - 70.00 m

    Flow rate 5.00 - 85.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Heating and cooling technology

      • Thermal oil systems

      • Filling and emptying thermal oil systems

      • Transportation of cooling brine

    • Plastics processing

      • Tool tempering for injection moulding

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–70 m

    • Flow rate: 5–85 l/min

    • Nominal pressure: PN 10

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power:
      Top/top: 0.75 – 1.50 kW
      ax/top: 0.75 – 1.00 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT

    • Suction-side connection size: Top/top: G ¾”
      ax/top G 1”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT

    • Pressure-side connection size: G ¾”

    • Material designs:
      Stainless steel
      Brass

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
Close-up of an industrial pump with a gray valve and a red motor housing with black cover, mounted on a red base.

Y-6091 Series

  • 50 Hz SI

    Total head/pressure 15.00 - 80.00 m

    Flow rate 15.00 - 185.00 l/min

    • Regenerative turbine pump

    • Close-coupled pump

    • Mechanical seal

    • Suitable for the delivery of gas shares

    • High pressures with a compact design

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

    • Heating and cooling technology

      • Thermal oil systems

      • Filling and emptying thermal oil systems

      • Transportation of cooling brine

    • Plastics processing

      • Tool tempering for injection moulding

    • Product type: Regenerative turbine pump

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 15–80 m

    • Flow rate: 15–185 l/min

    • Nominal pressure: PN 10

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 2.8 – 4.0 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Threaded

    • Suction-side connection size:
      CuZn: SAE 1”
      1.4581: SAE 1 ¼”/G 1 ¼”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size:
      CuZn: SAE 1”
      1.4581: SAE 1 ¼”/G 1 ¼”

    • Material designs:
      Stainless steel
      Brass

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
