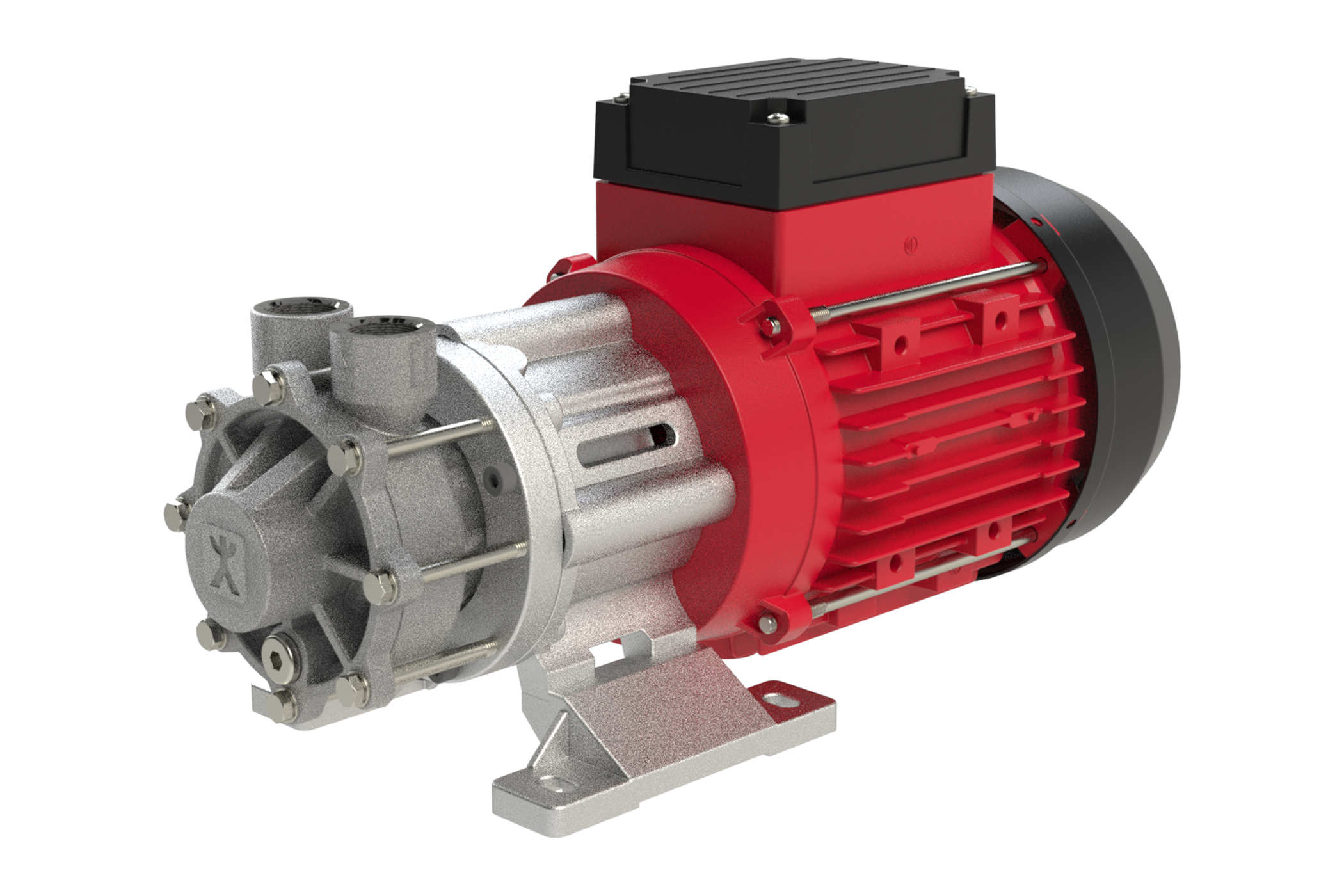

An electric motor with a red body and metallic front and mounting base.

AY-2241-MK Series

  • 50 Hz SI

    Total head/pressure 5.00 - 57.00 m

    Flow rate 2.00 - 14.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +160 °C, on request max. +230 °C
      Oil max. +350 °C
      Dielectric inert fluids min. -100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–57 m

    • Flow rate: 2–14 l/min

    • Nominal pressure: PN 16 – PN 50

    • Motor current type: 1~/3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.5 kW

    • Nominal motor speed: 2900 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ¾”, SAE ¾”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT

    • Pressure-side connection size: G ¾”, SAE ¾”

    • Material designs: Stainless steel

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now

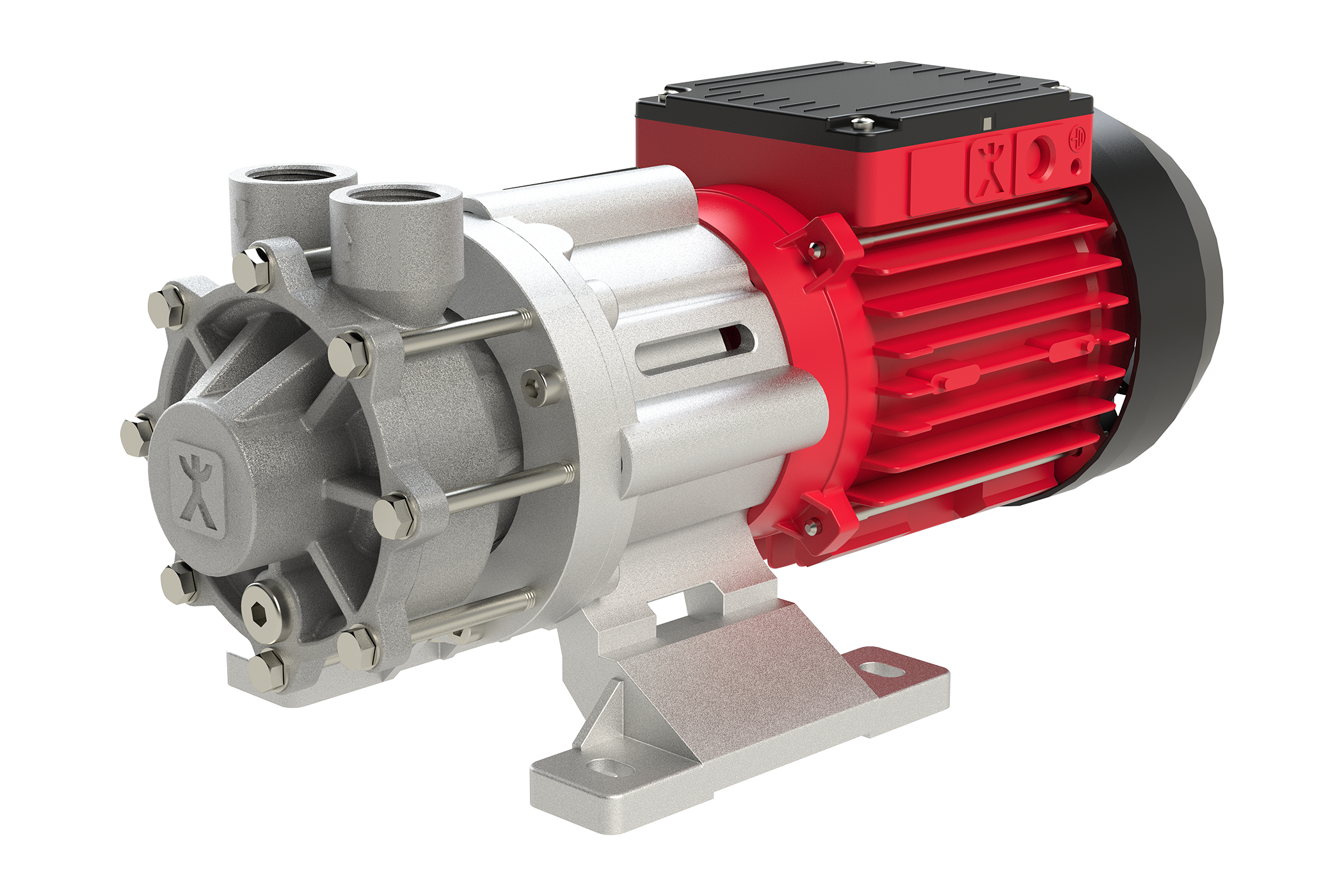

A 3D rendering of a compact industrial pump with silver and red components mounted on a metallic base.

AY-2241-PM Series

  • 50 Hz SI

    Total head/pressure 7.00 - 180.00 m

    Flow rate 1.00 - 23.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Operation with a frequency converter

    • Motor efficiency level better than IE4

    • Suitable for the delivery of gas shares

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +160 °C, on request max. +230 °C
      Oil max. +350 °C
      Dielectric inert fluids min. -100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Yes

    • Total head: 7–180 m

    • Flow rate: 1–23 l/min

    • Nominal pressure: PN 16 – PN 50

    • Motor current type: 3~

    • Type of motor: Synchronous motor

    • Nominal motor power: 0.45 – 1.1 kW

    • Nominal motor speed: 1000 – 4800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ¾”, SAE ¾”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT

    • Pressure-side connection size: G ¾”, SAE ¾”

    • Material designs: Stainless steel

    • Explosion protection: None

Enquire now

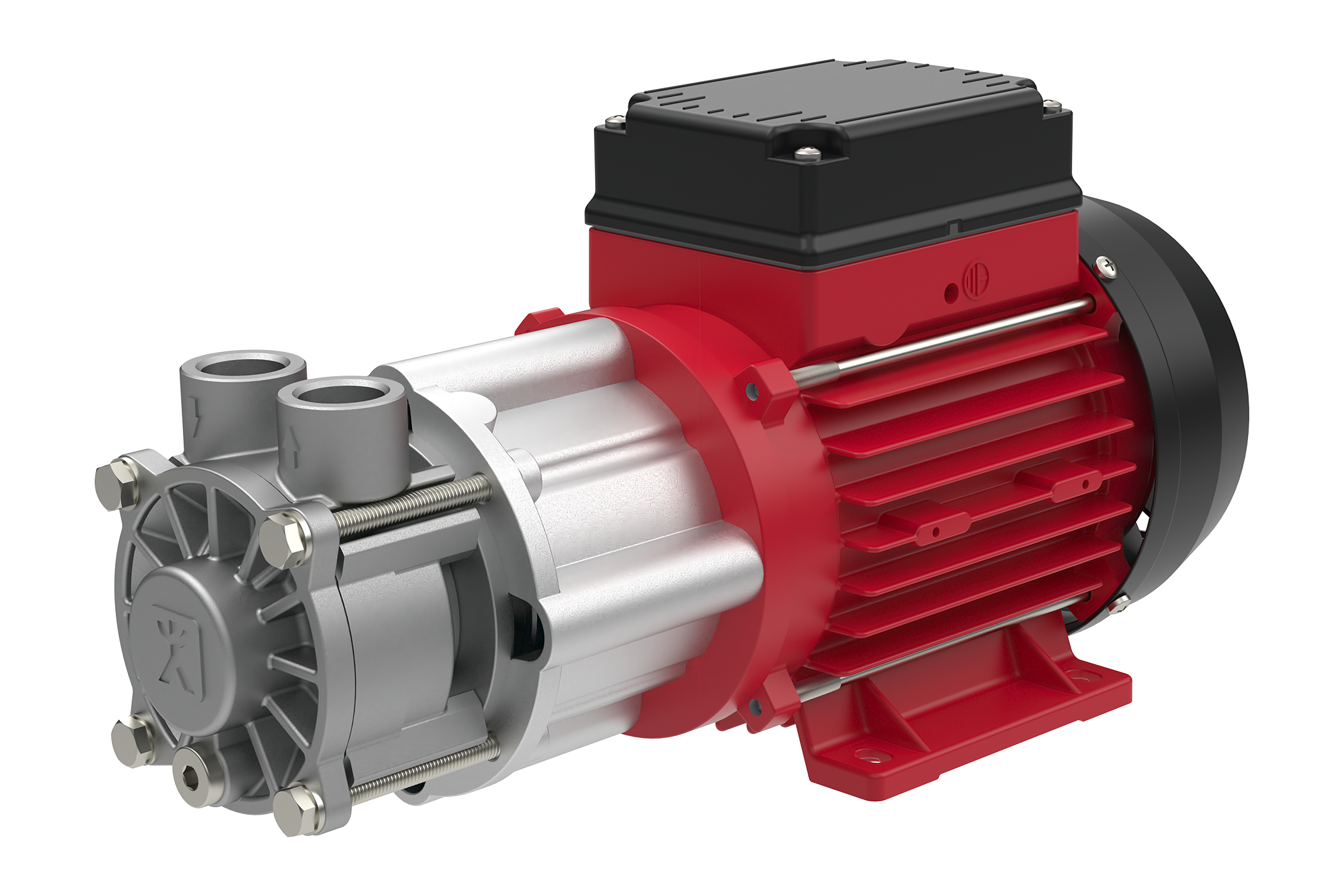

A 3D rendering of a red and silver industrial pump with mechanical and electrical components.

AY-2251-MK Series

  • 50 Hz SI

    Total head/pressure 4.00 - 48.00 m

    Flow rate 2.00 - 37.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +160 °C, on request max. +230 °C
      Oil max. +350 °C
      Dielectric inert fluids min. -100 °C, max. +180 °C

    • Self-priming:No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 4–48 m

    • Flow rate: 2–37 l/min

    • Nominal pressure: PN 16 – PN 100

    • Motor current type: 1~/3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.5/0.6 kW

    • Nominal motor speed: 2900 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ½”, SAE ½”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ½”, SAE ½”

    • Material designs: Stainless steel

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now

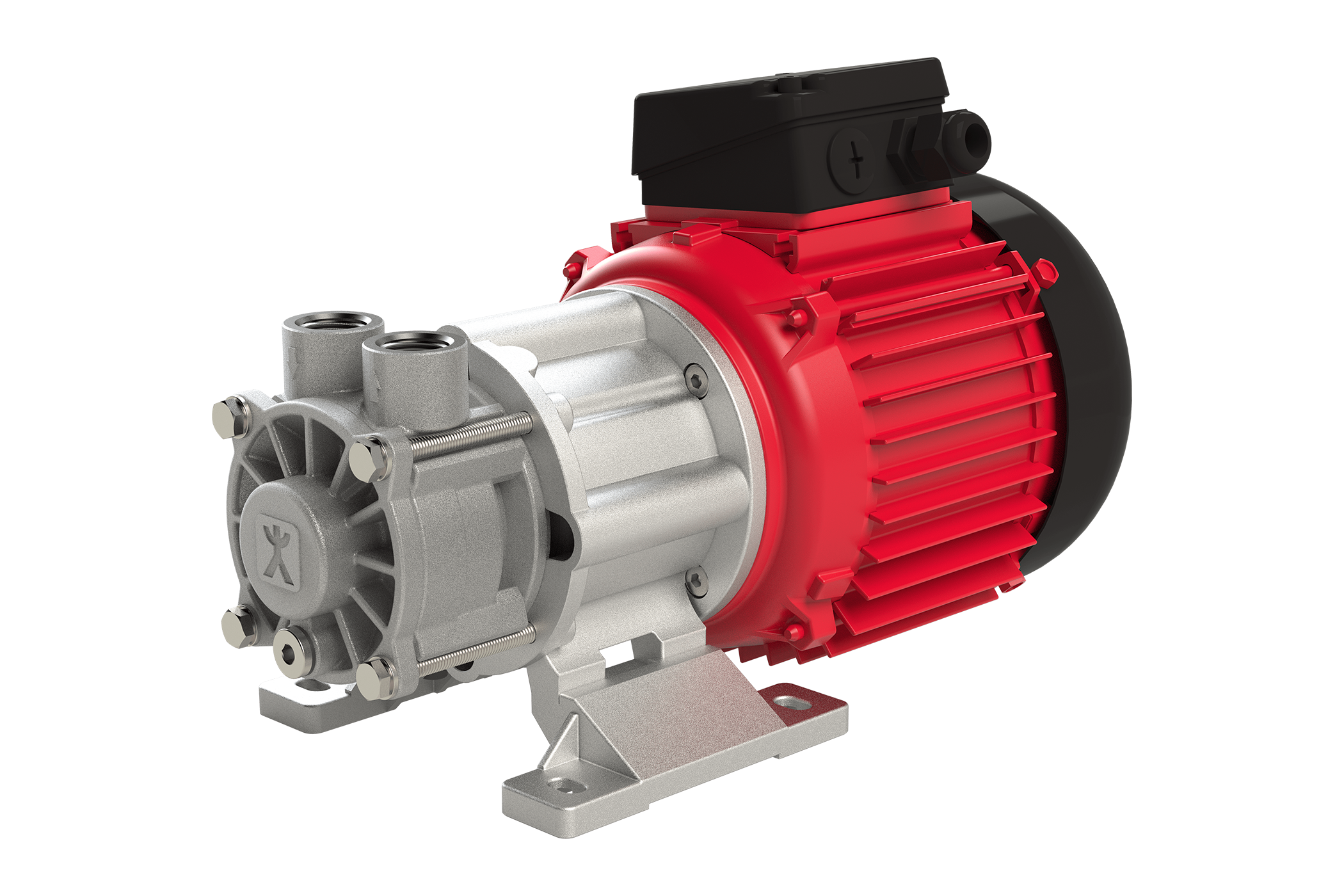

A high-pressure pump with metallic components, a red finned casing, and a black electrical box on top.

AY-2251-PM Series

  • 50 Hz SI

    Total head/pressure 4.00 - 87.00 m

    Flow rate 2.00 - 48.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Operation with a frequency converter

    • Motor efficiency level better than IE4

    • Suitable for the delivery of gas shares

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +160 °C, on request max. +230 °C
      Oil max. +350 °C
      Dielectric inert fluids min. -100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Yes

    • Total head: 4–87 m

    • Flow rate: 2–48 l/min

    • Nominal pressure: PN 16 – PN 100

    • Motor current type: 3~

    • Type of motor: Synchronous motor

    • Nominal motor power: 1.1 kW

    • Nominal motor speed: 1000 – 4000 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ½”, SAE ½”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ½”, SAE ½”

    • Material designs: Stainless steel

    • Explosion protection: None

Enquire now

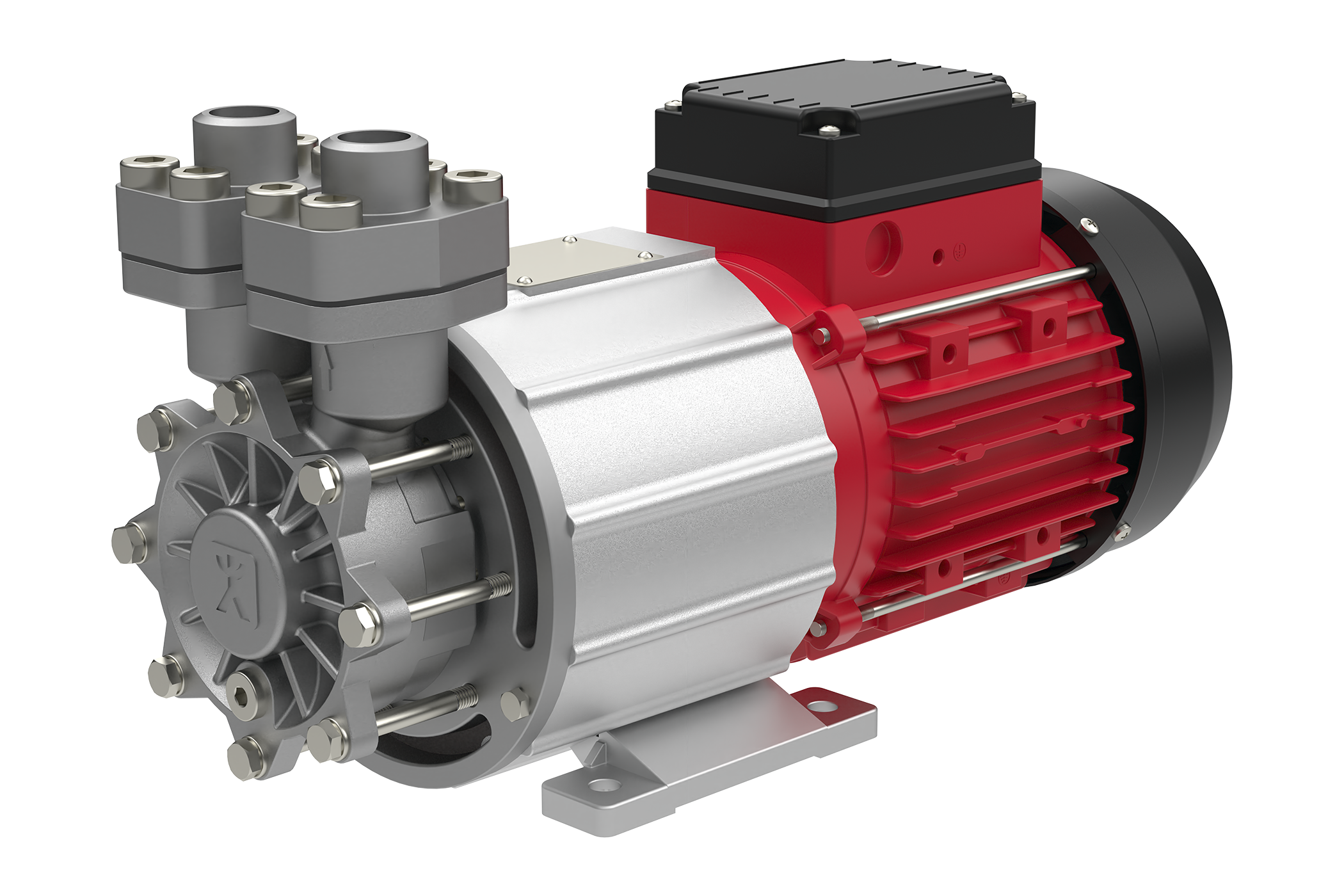

A high-quality 3D rendering of an electric motor with a silver body, red end cap, and black top cover, featuring cooling fins and mounting base.

AY-4281-MK Series

  • 50 Hz SI

    Total head/pressure 5.00 - 57.00 m

    Flow rate 5.00 - 55.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +230 °C
      Oil max. +350 °C
      Dielectric inert fluids min.-100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–57 m

    • Flow rate: 5–55 l/min

    • Nominal pressure: PN 16 – PN 100

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 1.0 – 2.8 kW

    • Nominal motor speed: 2900 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ¾”, SAE ¾”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ¾”, SAE ¾”

    • Material designs: Stainless steel

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now

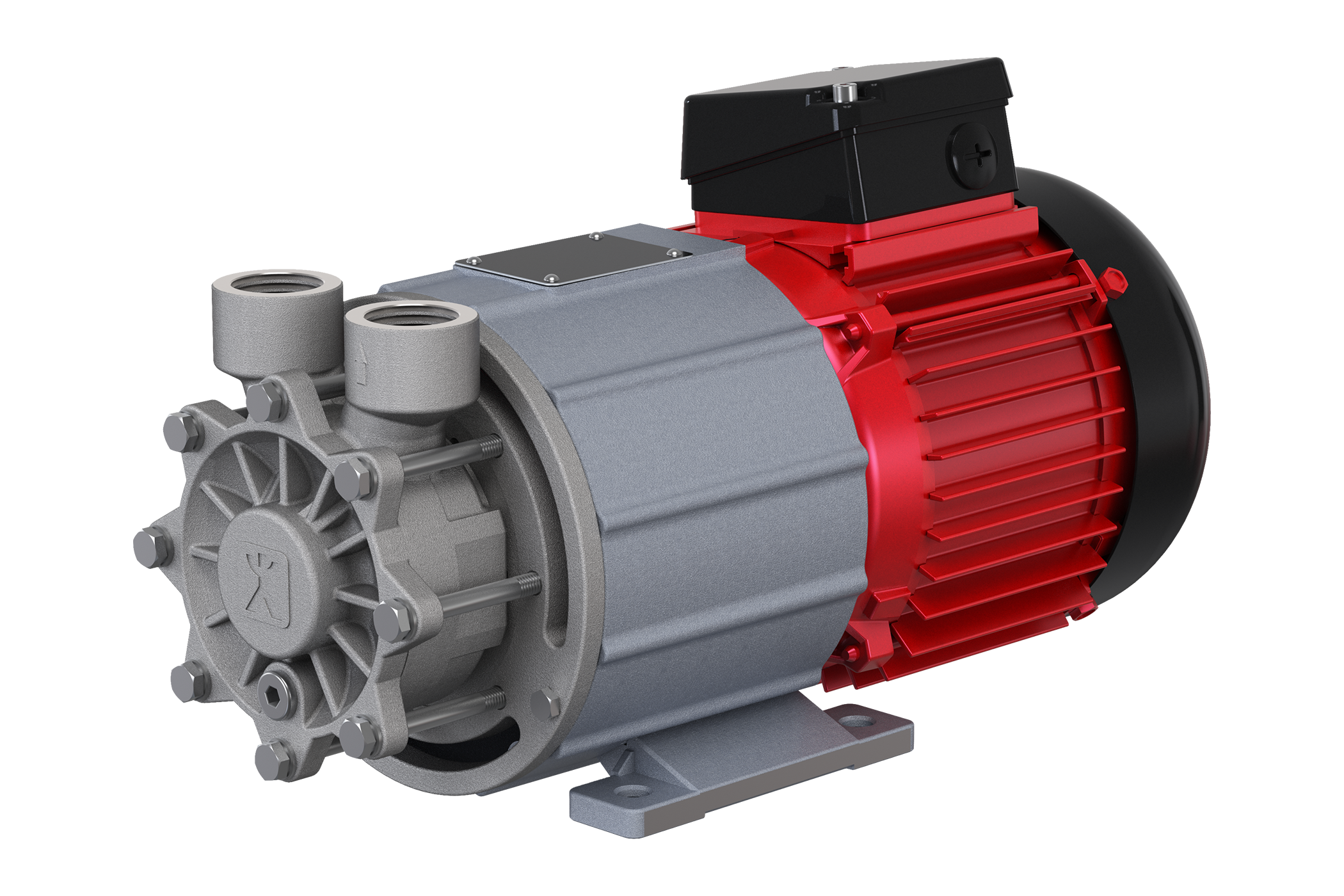

An electric motor with a silver metal body, black and red components, mounted on a flat base.

AY-4281-PM Series

  • 50 Hz SI

    Total head/pressure 8.00 - 117.00 m

    Flow rate 3.00 - 75.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Operation with a frequency converter

    • Motor efficiency level better than IE4

    • Suitable for the delivery of gas shares

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +230 °C
      Oil max. +350 °C
      Dielectric inert fluids min.-100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Yes

    • Total head: 8–117 m

    • Flow rate: 3–75 l/min

    • Nominal pressure: PN 16 – PN 100

    • Motor current type: 3~

    • Type of motor: Synchronous motor

    • Nominal motor power: 1.1 – 2.8 kW

    • Nominal motor speed: 1000 – 4000 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ¾”, SAE ¾”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ¾”, SAE ¾”

    • Material designs: Stainless steel

    • Explosion protection: None

Enquire now
Close-up of a mechanical pump with a silver front, red middle section with fins, and black back housing.

CY-4281-MK Series

  • 50 Hz SI

    Total head/pressure 5.00 - 77.00 m

    Flow rate 8.00 - 85.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +230 °C
      Oil max. +350 °C
      Dielectric inert fluids min.-100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–77 m

    • Flow rate: 8–85 l/min

    • Nominal pressure: PN 16 – PN 100

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 1.0 – 2.8 kW

    • Nominal motor speed: 2900 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ¾”, SAE ¾”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ¾”, SAE ¾”

    • Material designs: Stainless steel

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
A high-powered electric motor with a metal casing, red cooling fins, and electrical connections on top.

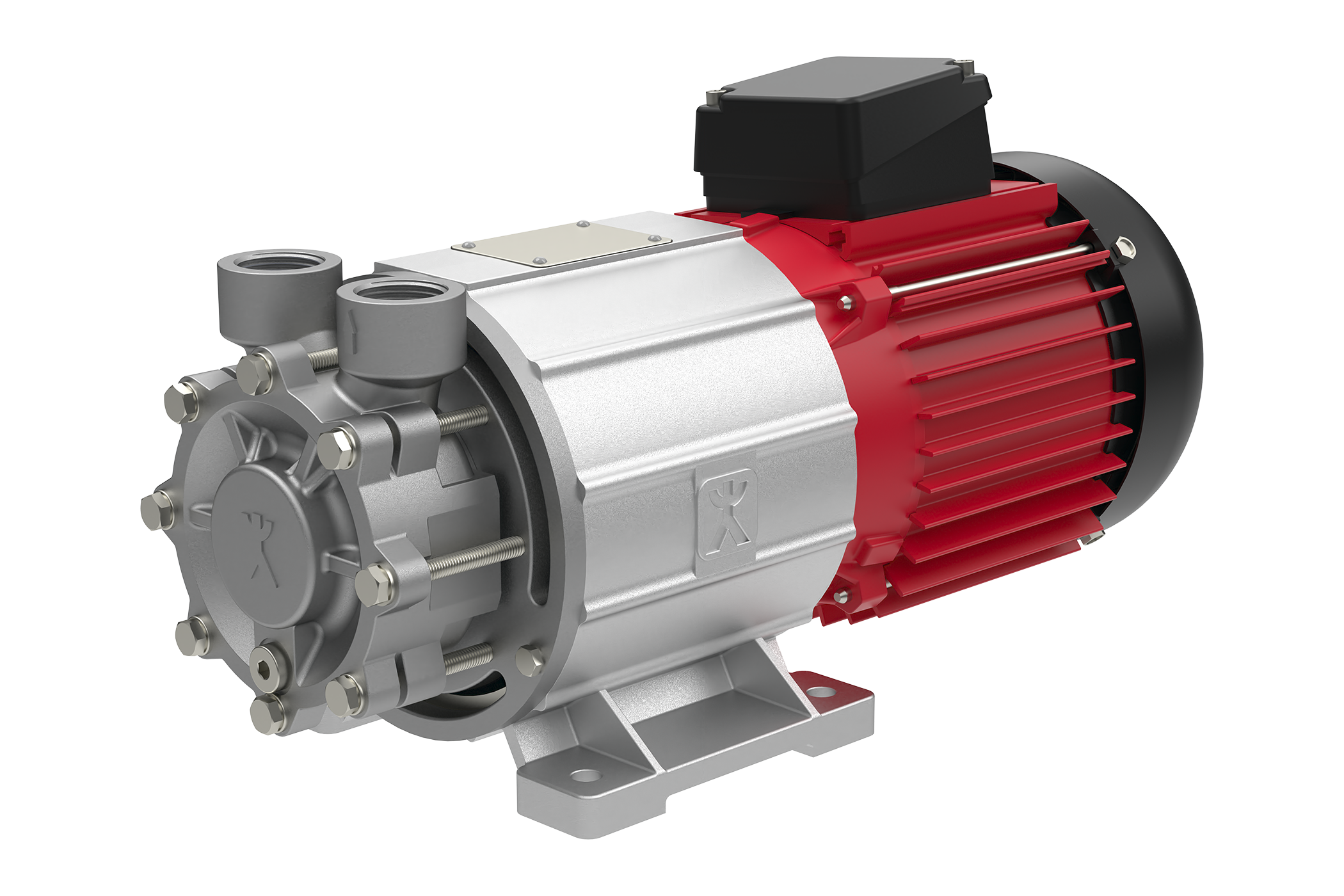

CY-4281-PM Series

  • 50 Hz SI

    Total head/pressure 5.00 - 98.00 m

    Flow rate 2.00 - 80.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Operation with a frequency converter

    • Motor efficiency level better than IE4

    • Suitable for the delivery of gas shares

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +230 °C
      Oil max. +350 °C
      Dielectric inert fluids min.-100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Yes

    • Total head: 5–98 m

    • Flow rate: 2–80 l/min

    • Nominal pressure: PN 16 – PN 100

    • Motor current type: 3~

    • Type of motor: Synchronous motor

    • Nominal motor power: 1.1 – 2.2 kW

    • Nominal motor speed: 1000 – 4000 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ¾”, SAE ¾”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ¾”, SAE ¾”

    • Material designs: Stainless steel

    • Explosion protection: None

Enquire now
A close-up view of a mechanical vacuum pump with a silver metallic body, red motor housing, and black vented end cap.

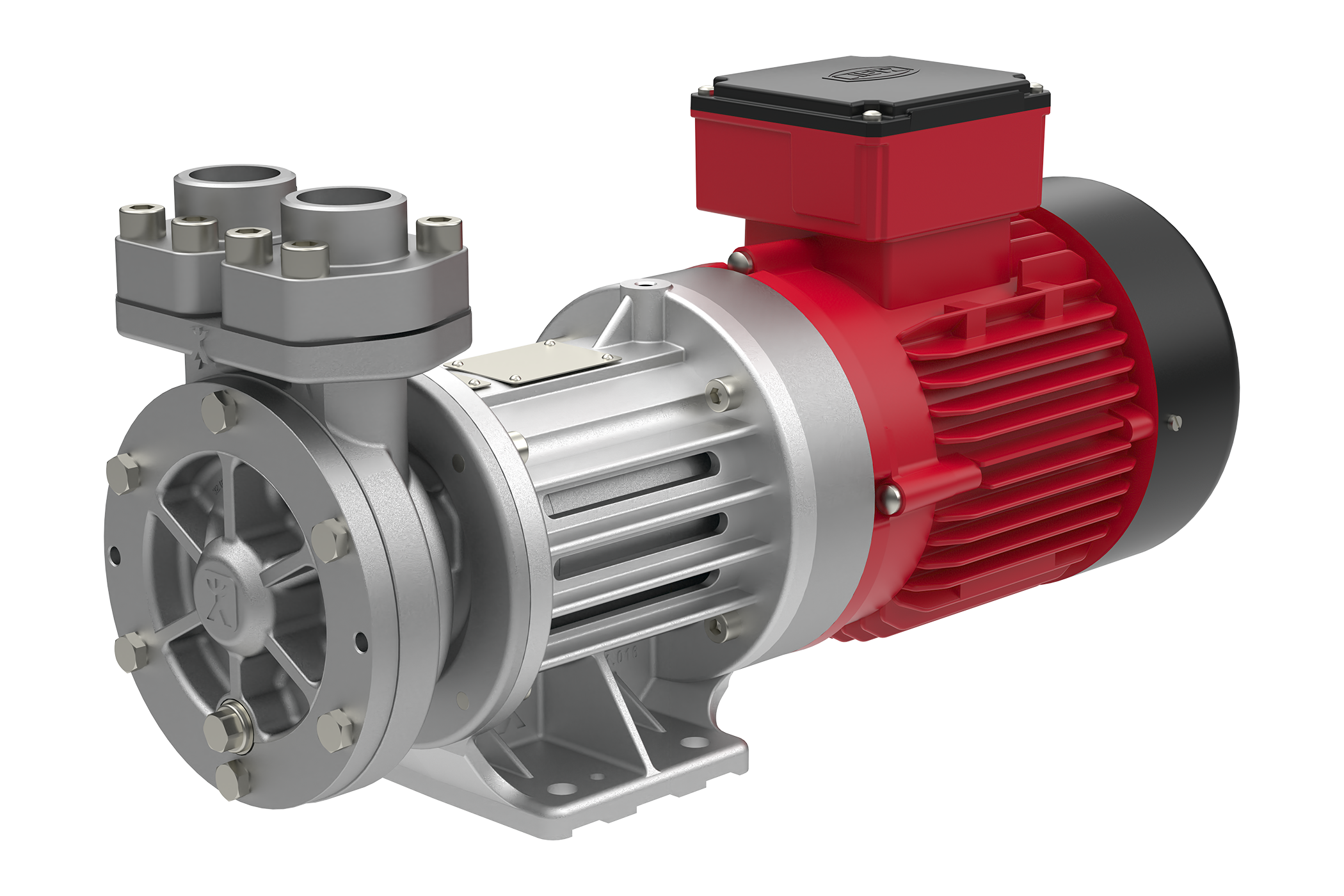

CY-6091-PM Series

  • 50 Hz SI

    Total head/pressure 2.00 - 90.00 m

    Flow rate 5.00 - 200.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Operation with a frequency converter

    • Motor efficiency level better than IE4

    • Suitable for the delivery of gas shares

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +200 °C
      Oil max. +350 °C
      Dielectric inert fluids min. -100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Yes

    • Total head: 2–90 m

    • Flow rate: 5–200 l/min

    • Nominal pressure: PN 16 – PN 50

    • Motor current type: 3~

    • Type of motor: Synchronous motor

    • Nominal motor power: 2.8 – 5.5 kW

    • Nominal motor speed: 1000 – 4000 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ¾”, SAE ¾”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ¾”, SAE ¾”

    • Material designs:
      Stainless steel
      Spheroidal graphite cast iron

    • Explosion protection: None

Enquire now
A mechanical pump with a gray metal body and a red heat sink attached to a black motor.

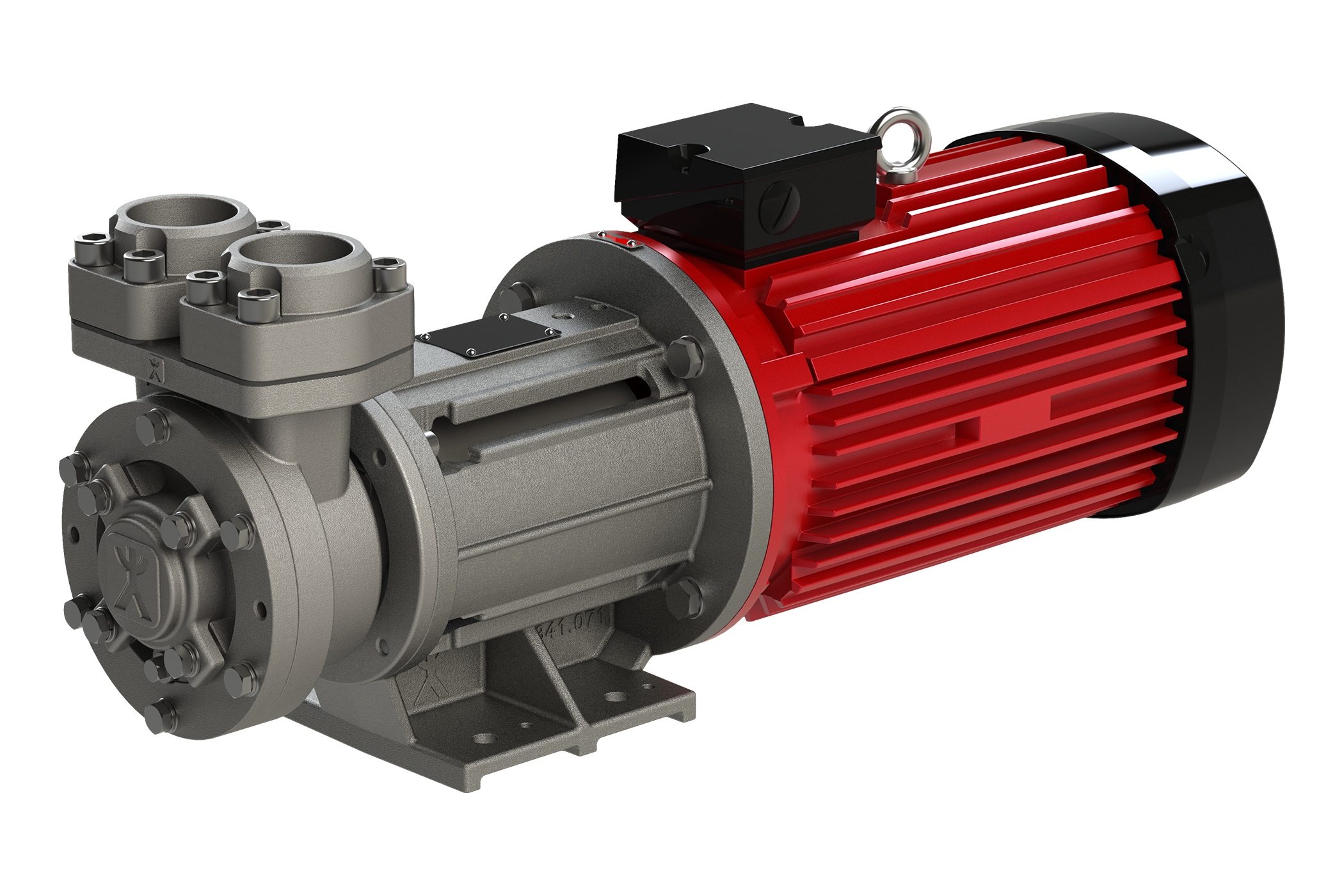

CY-7091-MK Series

  • 50 Hz SI

    Total head/pressure 5.00 - 54.00 m

    Flow rate 20.00 - 410.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +200 °C
      Oil max. +350 °C
      Dielectric inert fluids min. -100 °C, max. +180 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–54 m

    • Flow rate: 20–410 l/min

    • Nominal pressure: PN 16 – PN 50

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 5.5 kW

    • Nominal motor speed: 2900 rpm

    • Suction-side connection design: SAE

    • Suction-side connection size: SAE 1 ¾”

    • Pressure-side connection design: SAE

    • Pressure-side connection size: SAE 1 ¾”

    • Material designs:
      Stainless steel
      Cast steel

    • Explosion protection: None

Enquire now
Industrial machine with gray and red components, featuring a motor and cooling fins.

EY-2251-MK Series

  • 50 Hz SI

    Total head/pressure 5.00 - 46.00 m

    Flow rate 4.00 - 38.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +140 °C
      Oil max. +140 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–46 m

    • Flow rate: 4–38 l/min

    • Nominal pressure: PN 16

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.50 – 0.55 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT

    • Suction-side connection size: G ½”

    • Pressure-side connection designThread: G, NPT, Rc/PT

    • Pressure-side connection size: G ½”

    • Material designs: Stainless steel

    • Explosion protection: None

Enquire now
A detailed illustration of a mechanical pump with a silver metal body and a red housing, featuring cooling fins and various connection ports.

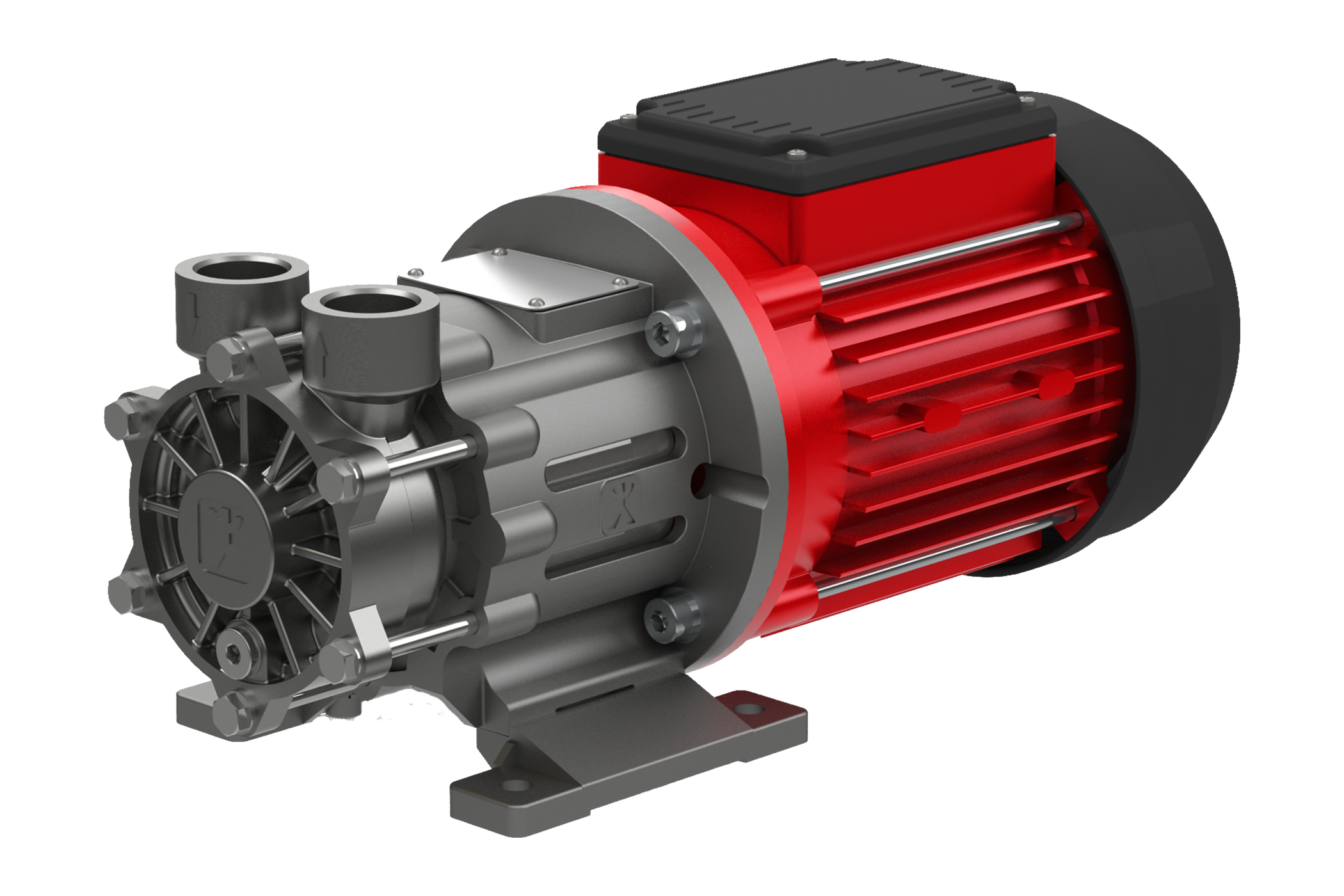

EY-4281-MK Series

  • 50 Hz SI

    Total head/pressure 5.00 - 70.00 m

    Flow rate 5.00 - 92.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Semiconductor manufacturing

      • Industrial processes up to -100°C

    • Plastics processing

      • Tool tempering for injection moulding

    • Road and rail

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +140 °C
      Oil max. +140 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 5–70 m

    • Flow rate: 5–92 l/min

    • Nominal pressure: PN 10 – PN16

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 1.0 – 1.1 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT

    • Suction-side connection size: G ½”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT

    • Pressure-side connection size: G ½”

    • Material designs: Stainless steel

    • Explosion protection: None

Enquire now
Close-up view of a mechanical or industrial component, showing a motor attached to a metallic structure with bolts, and a red finned heat sink.

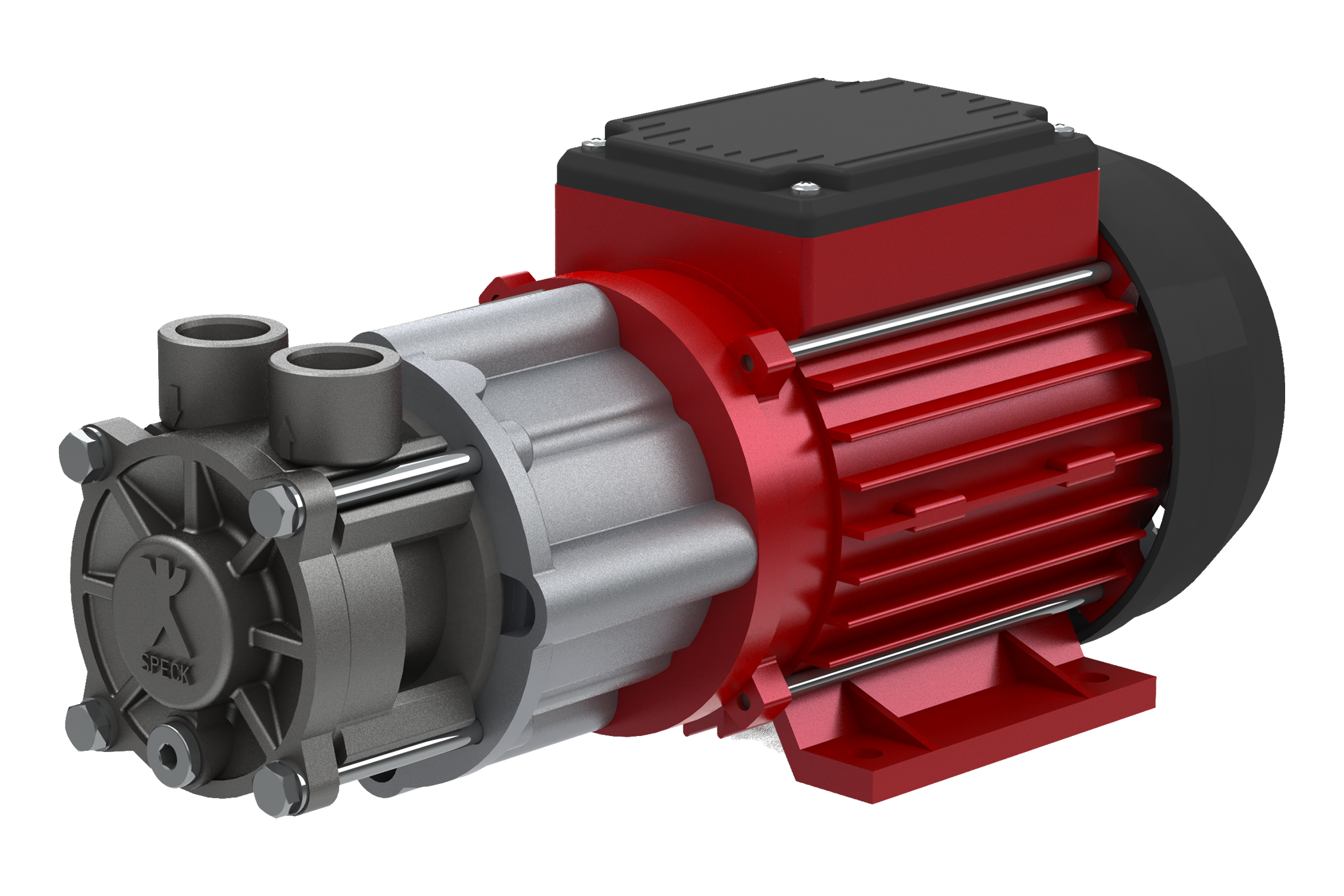

NPY-2251-MK Series

  • 50 Hz SI

    Total head/pressure 3.00 - 48.00 m

    Flow rate 3.00 - 27.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Roller tempering

      • Tool tempering for aluminium injection moulding

      • Tool tempering for plastic injection moulding

      • Semiconductor manufacturing

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Plasma cutters

      • Industrial lasers

      • Semiconductor manufacturing

    • Plastics processing

      • Tool tempering for injection moulding

    • Heating and cooling technology

      • Thermal oil systems

      • Filling and emptying thermal oil systems

      • Calenders

      • Transportation of cooling brine

    • Road and rail

      • Delivery of potable and service water in carriages

      • Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries

      • Tempering of tankers

    • Shipping

      • Compressor cooling with water/glycol mixtures

    • Energy technology

      • Delivery and circulation in closed circuits

      • Tempering of tankers

      • Delivery of demineralised water for electrolysis and fuel cell applications

    • Renewable energies

      • Thermal oil or cooling brine in solar parks

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +160 °C
      Oil max. +180 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 3–48 m

    • Flow rate: 3–27 l/min

    • Nominal pressure: PN 16 – PN 100

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.50/0.55 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Suction-side connection size: G ½”, SAE ½”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT
      SAE

    • Pressure-side connection size: G ½”, SAE ½”

    • Material designs: Stainless steel

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
A detailed digital rendering of an electric motor with a red and black color scheme, showing the outer casing, internal cooling fins, and mounting base.

PY-2071-MK Series

  • 50 Hz SI

    Total head/pressure 2.00 - 35.00 m

    Flow rate 2.00 - 17.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Hot-water tempering devices

      • Oil tempering devices

    • Industrial cooling

      • Chillers/cooling machines

    • Food and beverage industry

      • Curing systems

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Potable and service water max. +90 °C
      Chemicals, e.g. acids and lyes

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 2–35 m

    • Flow rate: 2–17 l/min

    • Nominal pressure: PN 6 – PN 12

    • Motor current type: 1~/3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.25 – 0.55 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT

    • Suction-side connection size: G ½”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT

    • Pressure-side connection size: G ½”

    • Material designs: Plastic

    • Explosion protection: None

Enquire now
A detailed mechanical device with a cylindrical metallic gray motor on the left and a red and black component on the right, featuring fins and rods, possibly an electric motor or pump.

Y-2951W-MK Series

  • 50 Hz SI

    Total head/pressure 1.00 - 28.00 m

    Flow rate 1.00 - 11.00 l/min

    • Regenerative turbine pump

    • Bracket pump

    • Magnetic coupling

    • Hermetically sealed

    • Suitable for the delivery of gas shares

    • Steep characteristic curve

    • Temperature control

      • Laboratory tempering devices

      • Hot-water tempering devices

      • Oil tempering devices

      • Tool tempering for plastic injection moulding

    • Industrial cooling

      • Chillers/cooling machines

      • Cooling appliances

      • Welding appliances

      • Plasma cutters

      • Industrial lasers

    • Product type: Regenerative turbine pump

    • Shaft sealing/coupling:
      None
      magnetic coupling

    • Pump design: Bracket pump

    • Typical media:
      Water max. +140 °C
      Oil max. +160 °C

    • Self-priming: No

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head: 1–28 m

    • Flow rate: 1–11 l/min

    • Nominal pressure: PN 6 – PN 25

    • Motor current type: 1~/3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.12 – 0.25 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Thread: G, NPT, Rc/PT

    • Suction-side connection size: G ¼”

    • Pressure-side connection design: Thread: G, NPT, Rc/PT

    • Pressure-side connection size: G ¼”

    • Material designs:
      Stainless steel
      Plastic

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
