Close-Coupled pumps with EC motors | Enhance Efficiency Today

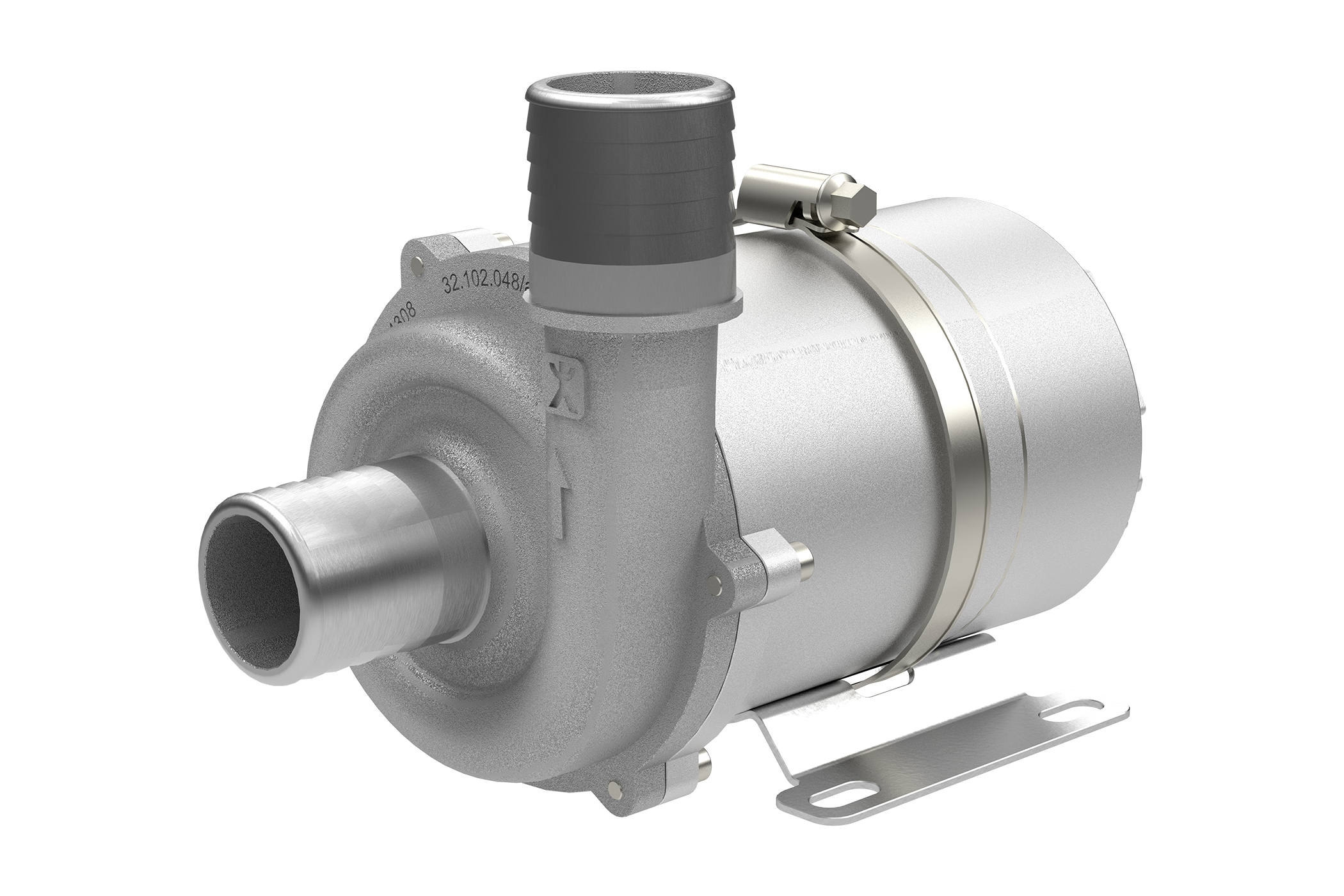

A silver industrial pump with a cylindrical body, metal mounting bracket, and pipe connection, set against a plain background.

MY-20-50-MM

DC SI
Total head/pressure 2.00 - 28.00 m
Flow rate 5.00 - 130.00 l/min
- Centrifugal pump
- Canned motor pump
- Adjustable speed
- Compact
- Temperature control
  - Semiconductor manufacturing
- Industrial cooling
  - Semiconductor manufacturing
  - Direct chip cooling in data centres
- Product type: Centrifugal pump
- Shaft sealing: None
- Pump design: Canned motor pump
- Typical media: Water max. +80 °C
  Water/glycol mixture min. -30 °C, max. +80 °C
  Oil max. +80 °C
- Self-priming:No
- Variable speed: Yes
- Total head: 2–28 m
- Flow rate: 5–130 l/min
- Nominal pressure: PN 6
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24–60 V
- Nominal motor power: 270 W/370 W
- Nominal motor speed: 1000–6700 rpm
- Suction-side connection design: Threaded
  barb
- Suction-side connection size: G 1”
- Pressure-side connection design: Threaded
  barb
- Pressure-side connection size: G 1”
- Material designs:
  Stainless steel
- Explosion protection: None
- Product data sheet

Enquire now

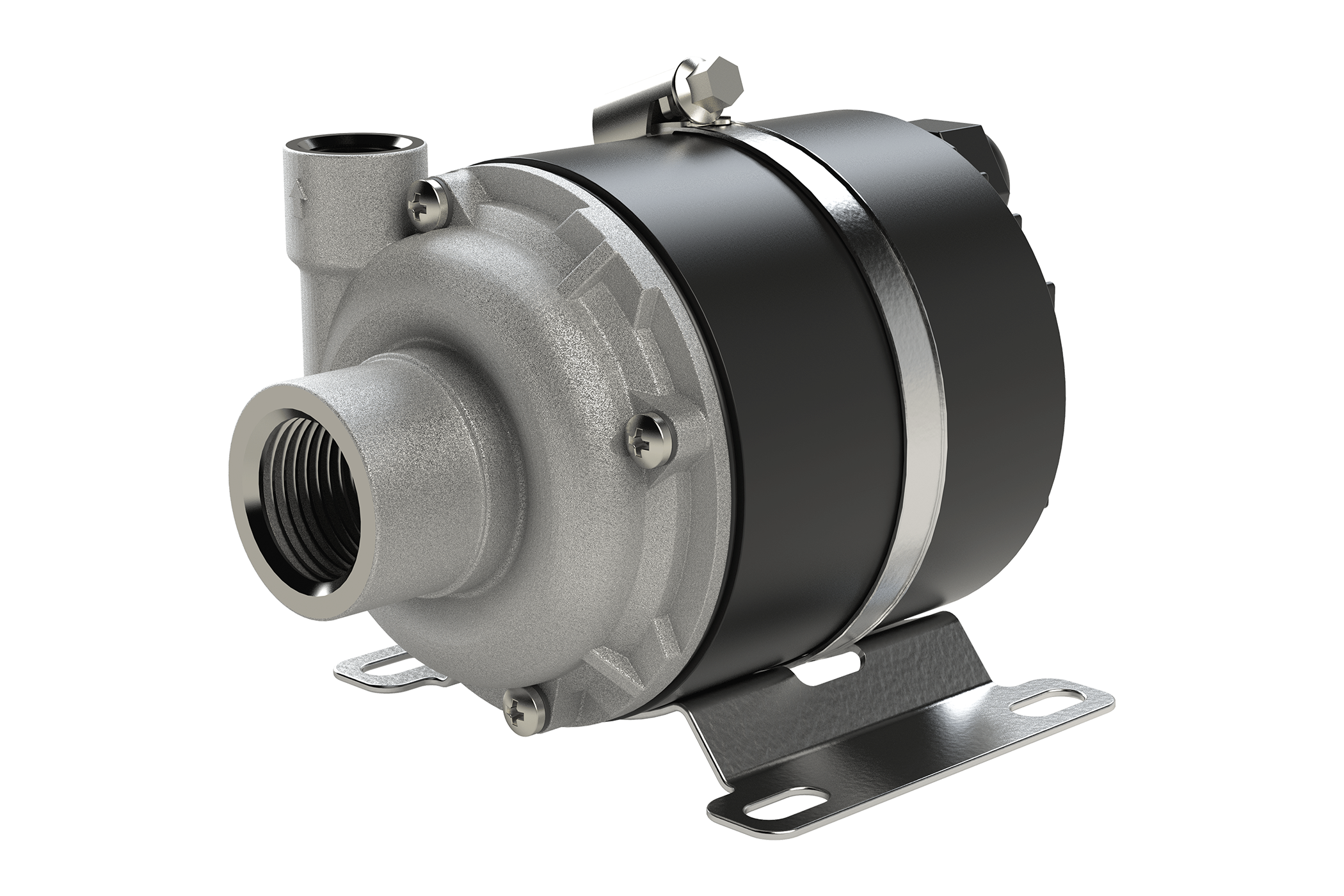

A small electric motor with a metallic gray front and black rear, mounted on a metal base with mounting holes.

MY04-46-MM

DC SI
Total head/pressure 1.00 - 16.00 m
Flow rate 2.00 - 56.00 l/min
- Centrifugal pump
- Canned motor pump
- Adjustable speed
- Compact
- Industrial cooling
  - Semiconductor manufacturing
  - Direct chip cooling in data centres
- Medical technology
  - Computer tomographs
  - C-arms (X-ray machines)
- Product type: Centrifugal pump
- Shaft sealing: None
- Pump design: Canned motor pump
- Typical media:
  Water max. +80 °C
  Water/glycol mixture min.-30 °C, max. +80 °C
  Oil max. +80 °C
- Self-priming:No
- Variable speed: Yes
- Total head: 1–16 m
- Flow rate: 2–56 l/min
- Nominal pressure: PN 10
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V, 48 V on request
- Nominal motor power: 150 W
- Nominal motor speed: 1000 – 6500 rpm
- Suction-side connection design: Threaded
- Suction-side connection size: G ¾”
- Pressure-side connection design: Threaded
- Pressure-side connection size: G ⅜”
- Material designs:
  Stainless steel
  PPS
- Explosion protection: None
- Product data sheet

Enquire now

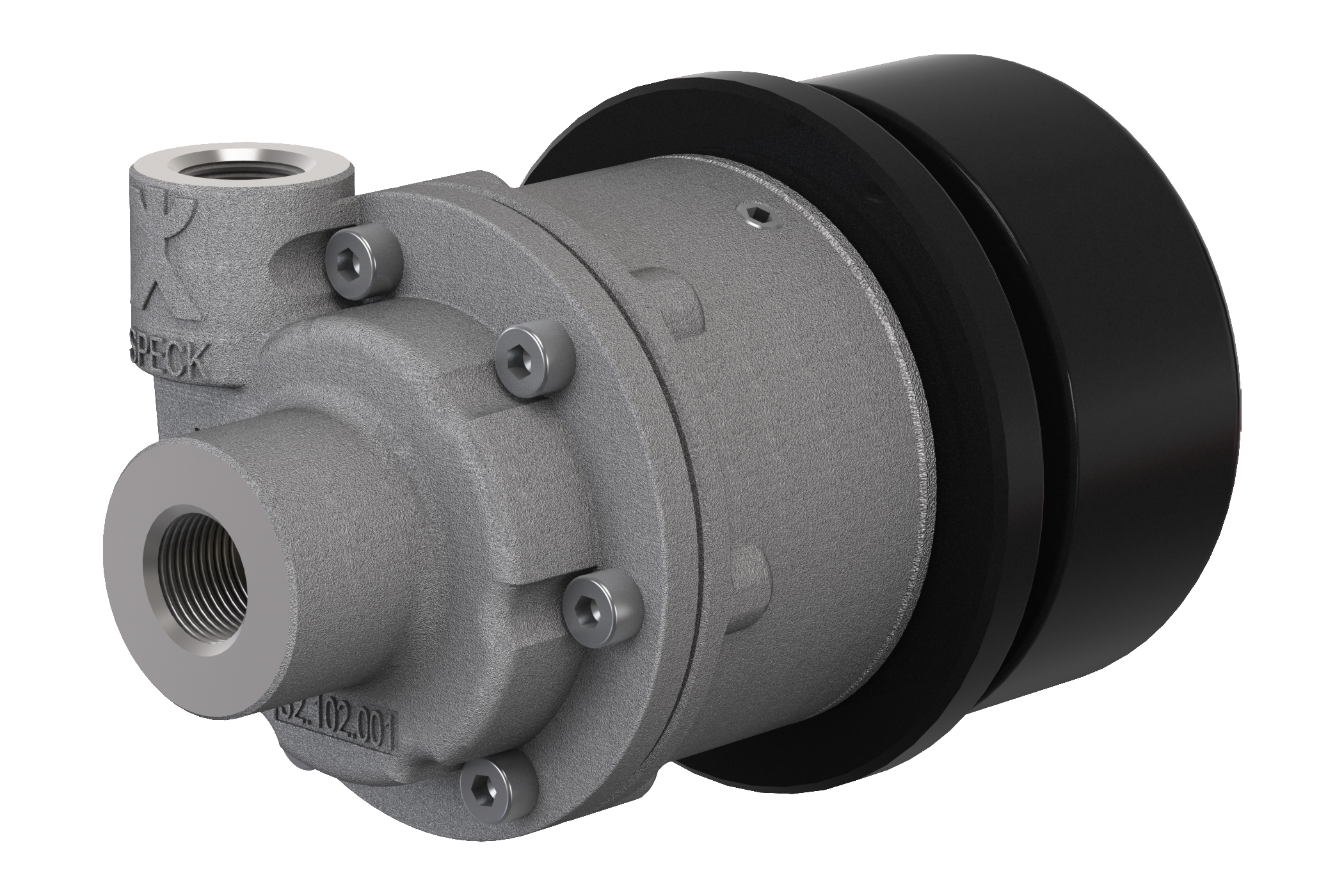

A mechanical component with a metallic body, black circular part, and threaded opening, likely a specialized industrial valve or pump part.

MY2-6000-MK

DC SI
Total head/pressure 1.00 - 9.00 m
Flow rate 1.00 - 20.00 l/min
- Centrifugal pump
- Bracket pump
- Magnetic coupling
- Hermetically sealed
- Compact
- Temperature control
  - Laboratory tempering devices
- Industrial cooling
  - Chillers/cooling machines
  - Cooling appliances
  - Welding appliances
- Medical technology
  - Computer tomographs
  - C-arms (X-ray machines)
- Product type: Centrifugal pump
- Shaft sealing/coupling:
  None
  magnetic coupling
- Pump design: Bracket pump
- Typical media:
  Water max. +80 °C
  Water/glycol mixture max. +80 °C
  Oil max. +80 °C
- Self-priming: No
- Variable speed: No
- Total head: 1–9 m
- Flow rate: 1–20 l/min
- Nominal pressure: PN 10
- Motor current type:Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V
- Nominal motor power: 23 W
- Nominal motor speed: 6000 rpm
- Suction-side connection design: Threaded
- Suction-side connection size: G ⅜”
- Pressure-side connection design: Thread: G, NPT, Rc/PT
- Pressure-side connection size: G ¼”
- Material designs: Stainless steel
- Explosion protection: None
- Product data sheet

Enquire now

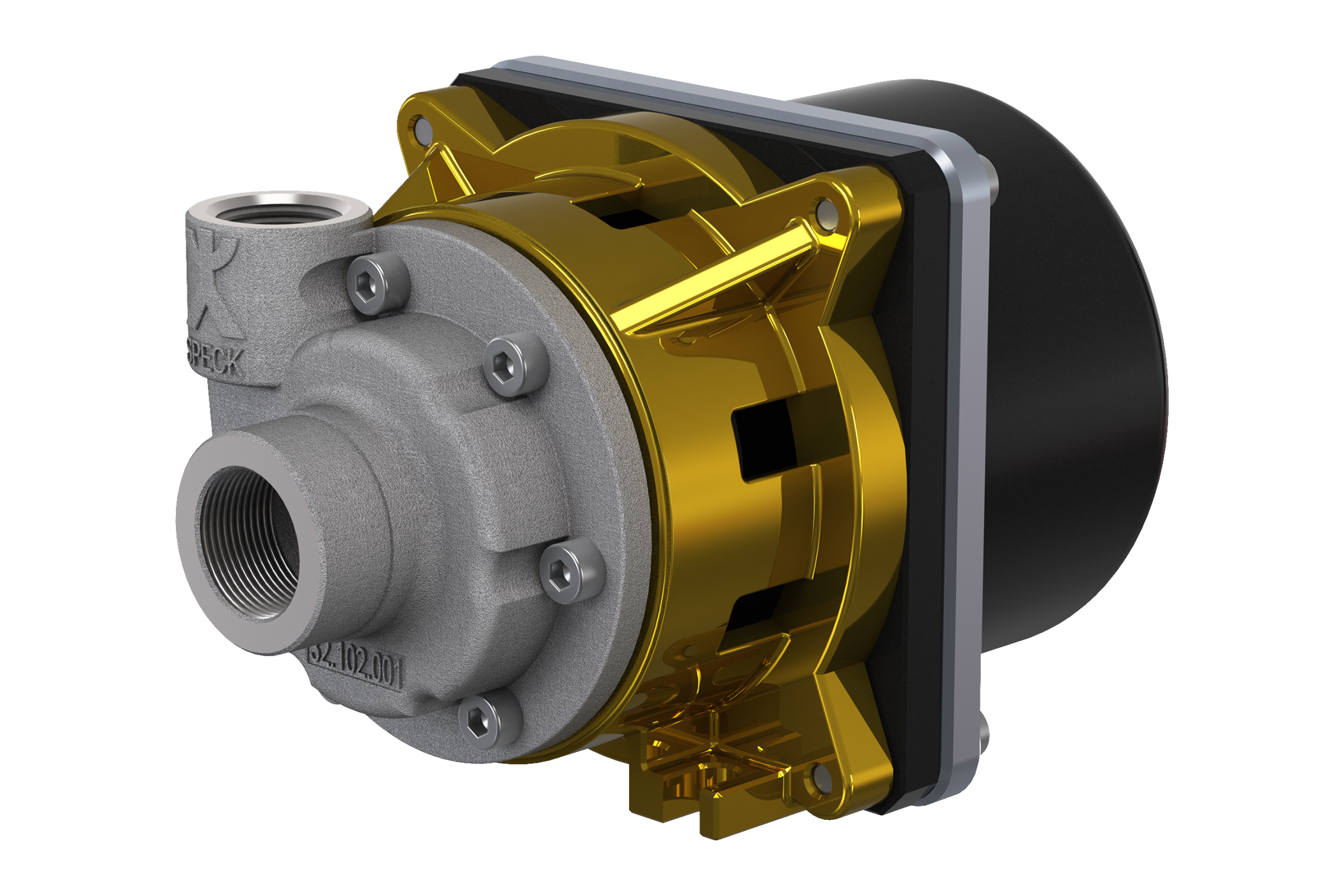

Close-up of a mechanical device with gray, gold, and black parts, featuring a thread-lined opening.

MY2-8000-MK

DC SI
Total head/pressure 1.00 - 15.00 m
Flow rate 1.00 - 29.00 l/min
- Centrifugal pump
- Bracket pump
- Magnetic coupling
- Hermetically sealed
- Compact
- Temperature control
  - Laboratory tempering devices
- Industrial cooling
  - Chillers/cooling machines
  - Cooling appliances
  - Welding appliances
- Medical technology
  - Computer tomographs
  - C-arms (X-ray machines)
- Product type: Centrifugal pump
- Shaft sealing/coupling:
  None
  magnetic coupling
- Pump design: Bracket pump
- Typical media:
  Water max. +80 °C
  Water/glycol mixture max. +80 °C
  Oil max. +80 °C
- Self-priming: No
- Variable speed: No
- Total head: 1–15 m
- Flow rate: 1–29 l/min
- Nominal pressure: PN 10
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V
- Nominal motor power: 80 W
- Nominal motor speed: 9000 rpm
- Suction-side connection design: Thread: G, NPT, Rc/PT
- Suction-side connection size: G ⅜”
- Pressure-side connection design: Thread: G, NPT, Rc/PT
- Pressure-side connection size: G ¼”
- Material designs: Stainless steel
- Explosion protection: None
- Product data sheet

Enquire now

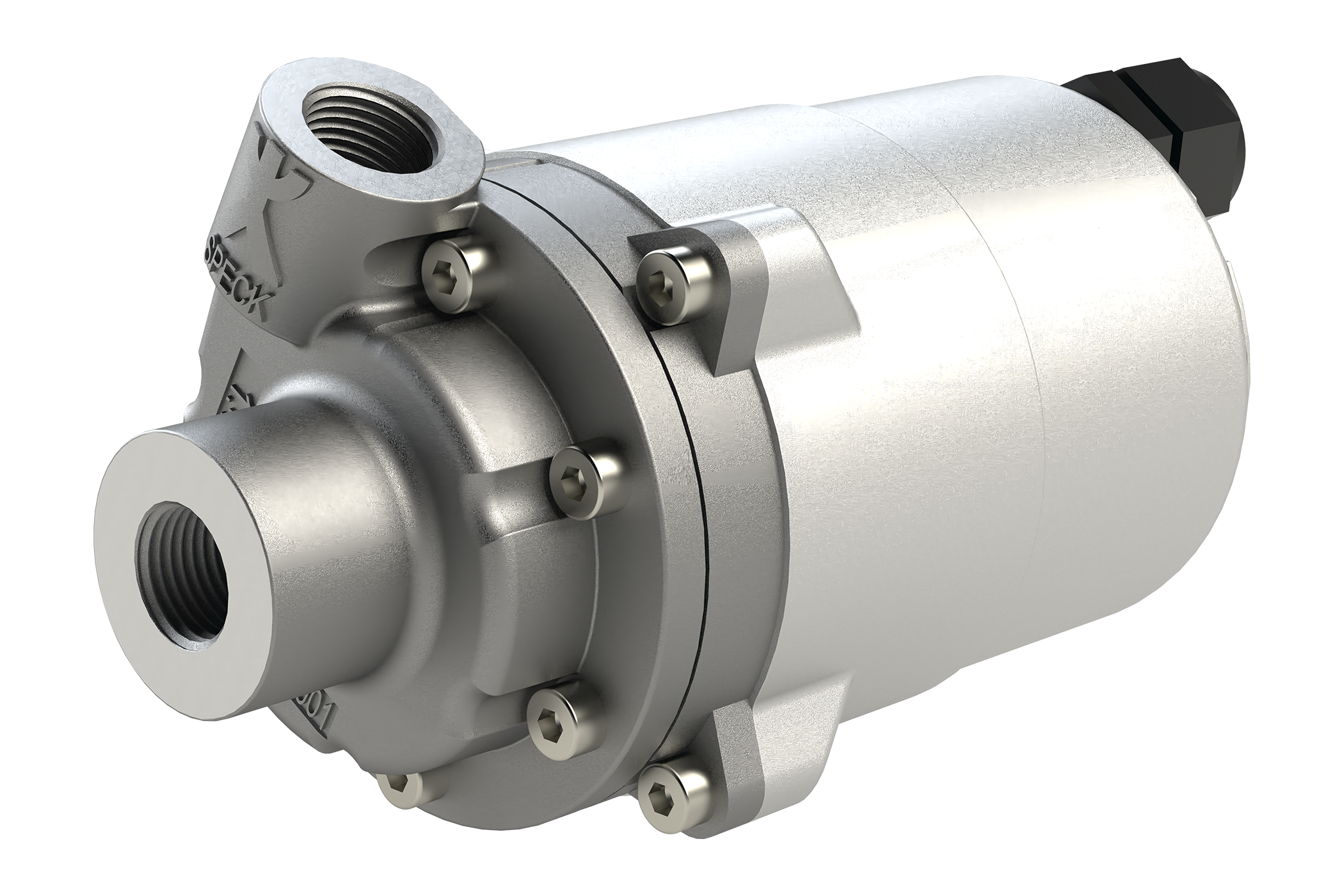

Metal industrial pump or motor assembly with bolts and threaded openings.

MY2-8000-MM

DC SI
Total head/pressure 1.00 - 19.00 m
Flow rate 1.00 - 40.00 l/min
- Centrifugal pump
- Canned motor pump
- Adjustable speed
- Compact
- Temperature control
  - Laboratory tempering devices
- Industrial cooling
  - Chillers/cooling machines
  - Cooling appliances
  - Welding appliances
- Medical technology
  - Computer tomographs
  - C-arms (X-ray machines)
- Product type: Centrifugal pump
- Shaft sealing: None
- Pump design: Canned motor pump
- Typical media:
  Water min. -30 °C, max. +80 °C
  Water/glycol mixture max. +80 °C
  Oil max. +80 °C
- Self-priming: No
- Variable speed: Yes
- Total head: 1–19 m
- Flow rate: 1–40 l/min
- Nominal pressure: PN 20
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V
- Nominal motor power: 80 W
- Nominal motor speed: 1000 – 10.000 rpm
- Suction-side connection design: Threaded
- Suction-side connection size:
  G ⅜”
  M 14 x 1,5
- Pressure-side connection design: Threaded
- Pressure-side connection size:
  G ¼”
  M 14 x 1,5
- Material designs:
  Stainless steel
  PPS
- Explosion protection: None
- Product data sheet

Enquire now

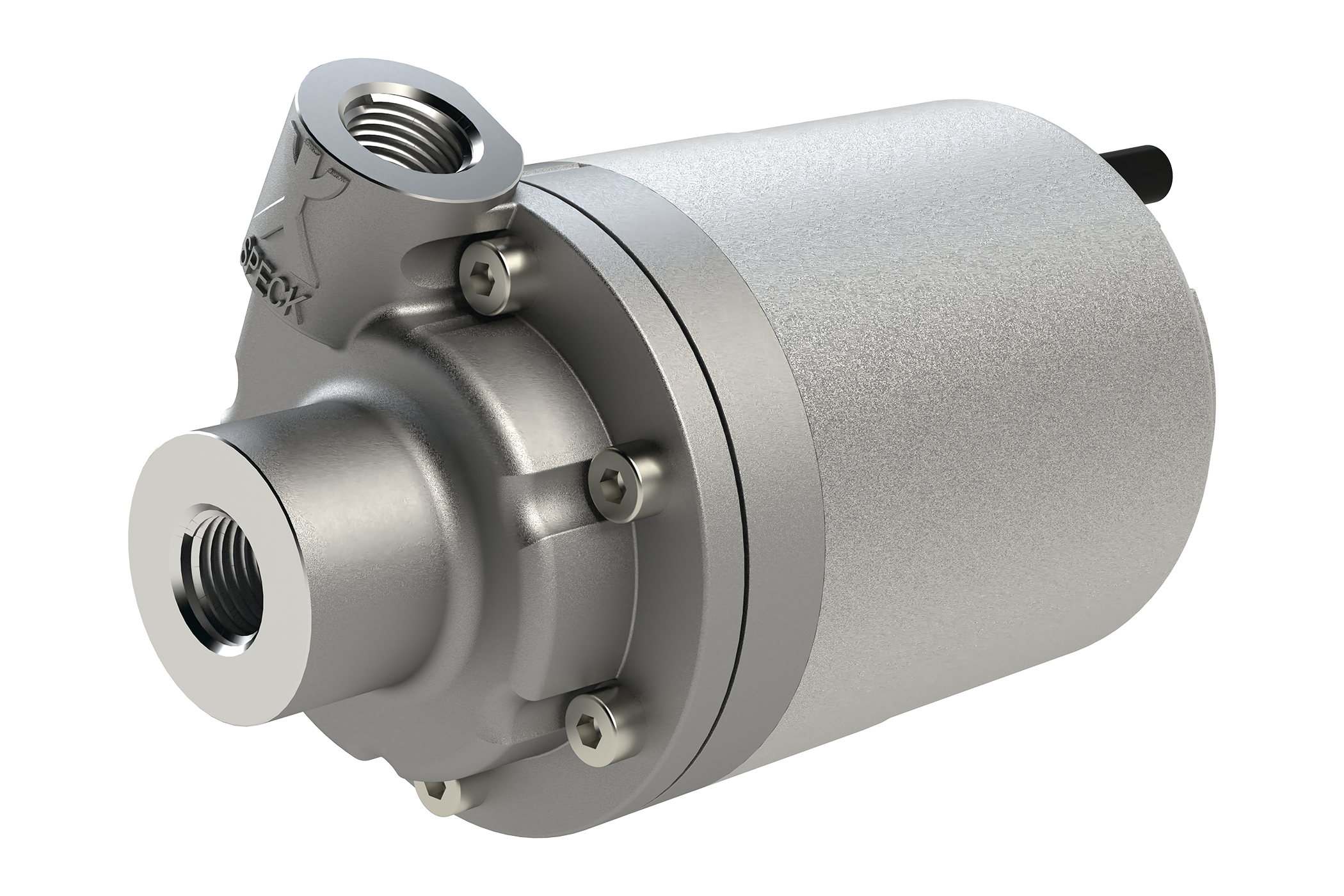

A metal geared motor with a cylindrical body and mounting holes on one end, featuring a gear connection on the other end.

MY2-MM

DC SI
Total head/pressure 1.00 - 6.00 m
Flow rate 1.00 - 17.00 l/min
- Centrifugal pump
- Canned motor pump
- Adjustable speed
- Compact
- Temperature control
  - Laboratory tempering devices
- Industrial cooling
  - Chillers/cooling machines
  - Cooling appliances
  - Welding appliances
- Medical technology
  - Computer tomographs
  - C-arms (X-ray machines)
- Product type: Centrifugal pump
- Shaft sealing: None
- Pump design: Canned motor pump
- Typical media:
  Water min. -30 °C, max. +80 °C
  Water/glycol mixture max. +80 °C
  Oil max. +80 °C
- Self-priming: No
- Variable speed: Yes
- Total head: 1–6 m
- Flow rate: 1–17 l/min
- Nominal pressure: PN 20
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V
- Nominal motor power: 30 W
- Nominal motor speed: 1000 – 6000 rpm
- Suction-side connection design: Threaded
- Suction-side connection size:M 14 x 1.5
- Pressure-side connection design: Threaded
- Pressure-side connection size: M 14 x 1.5
- Material designs:
  Stainless steel
  PPS
- Explosion protection: None
- Product data sheet

Enquire now

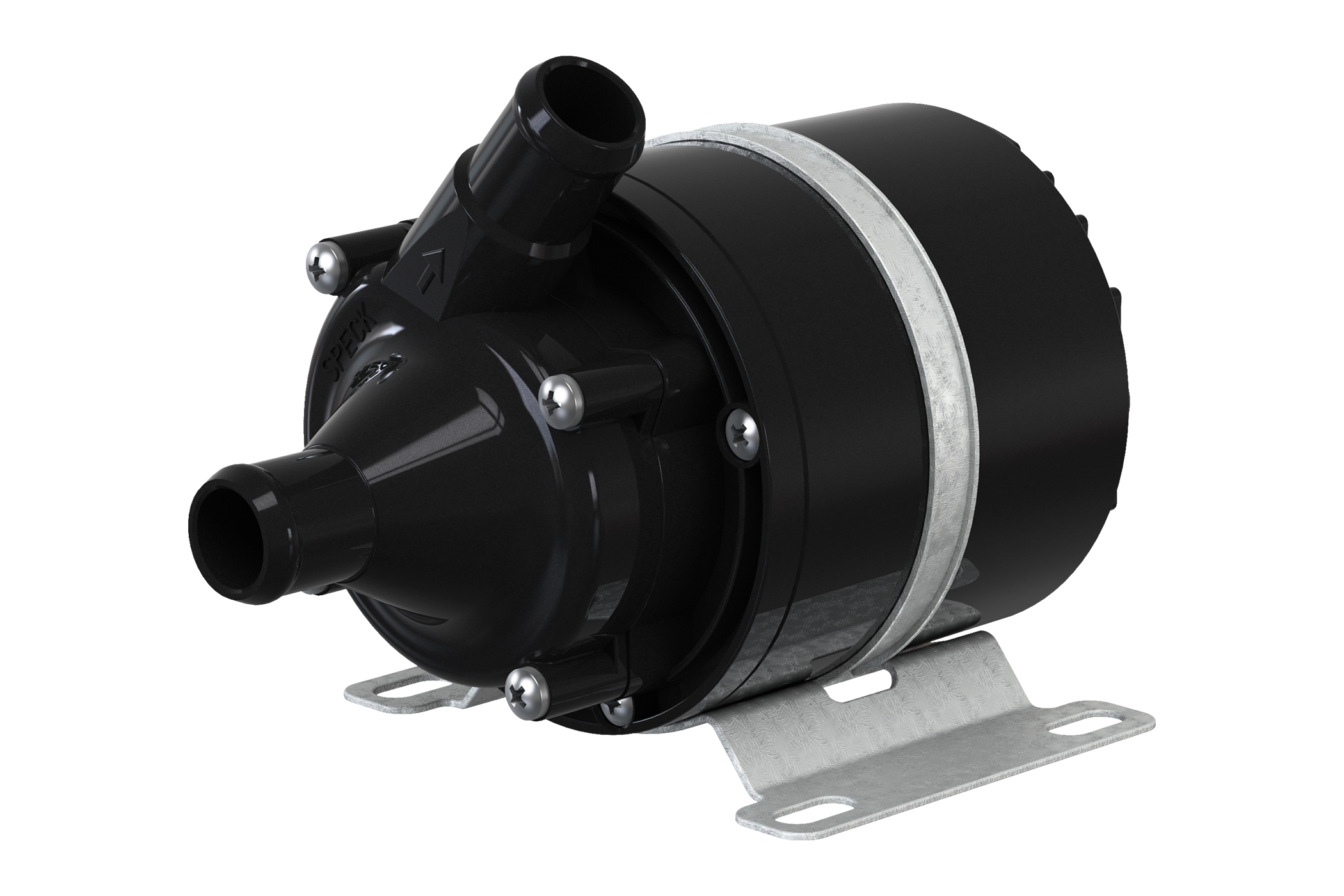

Close-up of a black electric motor with metal mounting bracket, isolated on black background.

MY3-MM

DC SI
Total head/pressure 1.00 - 14.00 m
Flow rate 5.00 - 100.00 l/min
- Centrifugal pump
- Canned motor pump
- Adjustable speed
- Compact
- Industrial cooling
  - Cooling appliances
- Road and rail
  - Air conditioning systems and auxiliary heaters
  - Engine pre-heating
  - Delivery of potable and service water in carriages
  - Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries
- E-mobility
  - Stack primary cooling circuits for fuel cells
- Renewable energies
  - Solid fluid batteries
- Product type: Centrifugal pump
- Shaft sealing: None
- Pump design: Canned motor pump
- Typical media:
  Water max. +80 °C
  Water/glycol mixture max. +80 °C
  Oil max. +80 °C
- Self-priming: No
- Variable speed: Yes
- Total head: 1–14 m
- Flow rate: 5–100 l/min
- Nominal pressure: PN 6
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V, 48 V on request
- Nominal motor power: 150 W
- Nominal motor speed: 2000 – 4000 rpm
- Suction-side connection design: Hose nozzle
- Suction-side connection size: Diameter: 20 or 28 mm
- Pressure-side connection design: Hose nozzle
- Pressure-side connection size: Diameter: 20 or 28 mm
- Material designs:
  PA66
  PPS
- Explosion protection: None
- Product data sheet

Enquire now
