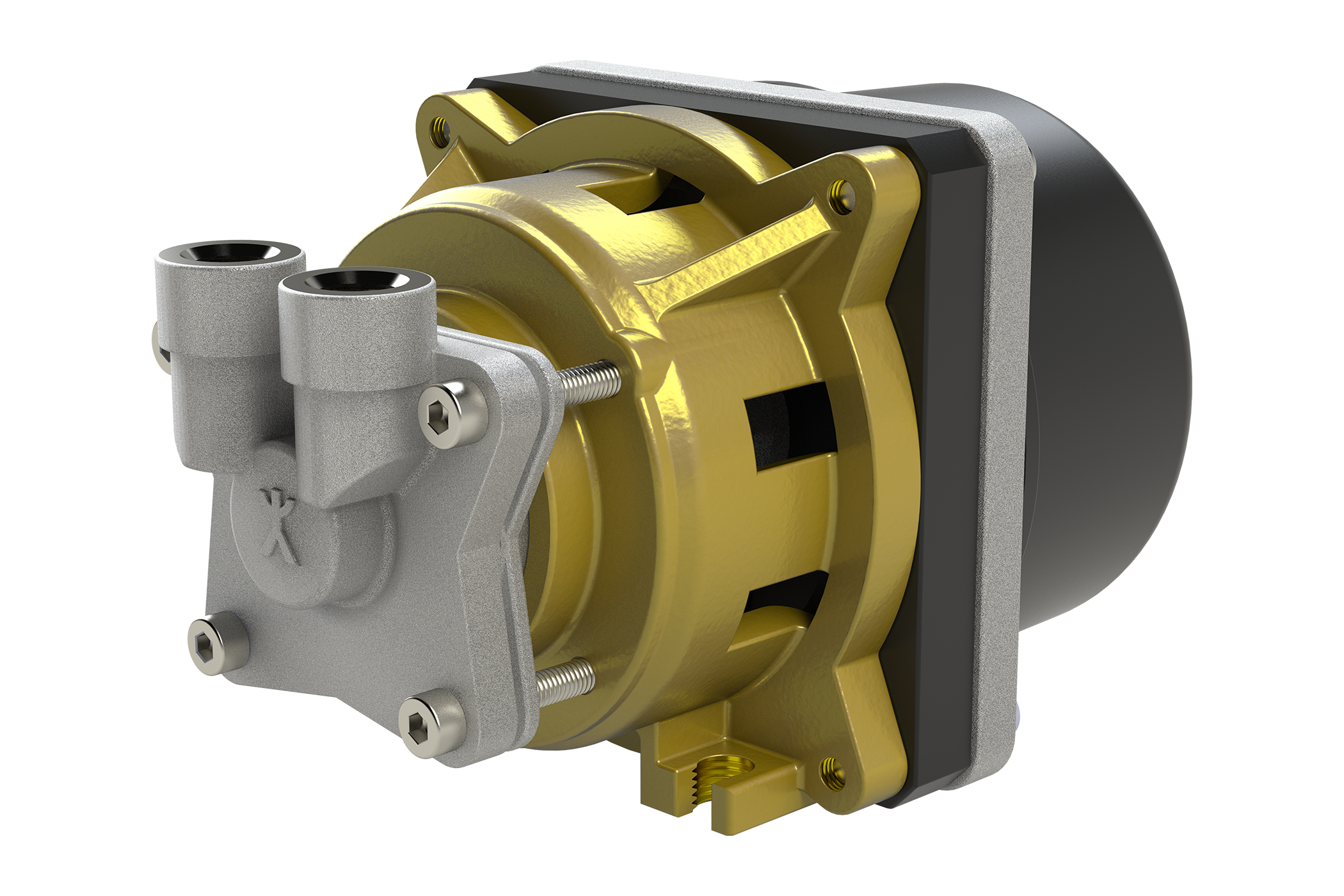

A mechanical component with a yellow pulley, metal brackets, and black base, likely part of a machine or engine assembly.

LY-8000-MK Series

DC SI
Total head/pressure 1.00 - 38.00 m
Flow rate 1.00 - 5.00 l/min
- Regenerative turbine pump
- Bracket pump
- Magnetic coupling
- Hermetically sealed
- Suitable for the delivery of gas shares
- Steep characteristic curve
- Industrial cooling
  - Chillers/cooling machines
  - Cooling appliances
  - Welding appliances
  - Plasma cutters
- Medical technology
  - Dialysis
- Product type: Regenerative turbine pump
- Shaft sealing/coupling:
  None
  magnetic coupling
- Pump design: Bracket pump
- Typical media:
  Water max. +80 °C
  Oil max. +80 °C
  Water/glycol mixture max. +80 °C
- Self-priming: No
- Variable speed: No
- Total head: 1–38 m
- Flow rate: 1–5 l/min
- Nominal pressure: PN 10 – PN 16
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V
- Nominal motor power: 80 W
- Nominal motor speed: 9000 rpm
- Suction-side connection design: Thread: G, NPT, Rc/PT
- Suction-side connection sizeG ⅛”
- Pressure-side connection design: Thread: G, NPT, Rc/PT
- Pressure-side connection size: G ⅛”
- Material designs:
  Stainless steel
  Brass
- Explosion protection: None
- Product data sheet

Automotive starter motor with metallic cylindrical body and plastic end cap, featuring mounting bolts and electrical connections.

LY-8000-MM Series

DC SI
Total head/pressure 3.00 - 52.00 m
Flow rate 0.20 - 4.60 l/min
- Regenerative turbine pump
- Canned motor pump
- Adjustable speed
- Compact
- Suitable for the delivery of gas shares
- Steep characteristic curve
- Long-lasting
- Road and rail
  - Air conditioning systems and auxiliary heaters
  - Cooling of electrical and mechanical vehicle components, e.g. traction coolers, gearboxes and batteries
- Medical technology
  - Dialysis
- Product type: Regenerative turbine pump
- Shaft sealing:
  None
  Canned motor
- Pump design: Canned motor pump
- Typical media:
  Water max. +80 °C
  Oil max. +80 °C
  Water/glycol mixture max. +80 °C
- Self-priming: No
- Variable speed: Yes
- Total head: 3–52 m
- Flow rate: 0.2–4.6 l/min
- Nominal pressure: PN 20
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V
- Nominal motor power: 80 W
- Nominal motor speed: 1000 – 10.000 rpm
- Suction-side connection design: Thread: G, NPT, Rc/PT
- Suction-side connection size: G ⅛”
- Pressure-side connection design: Thread: G, NPT, Rc/PT
- Pressure-side connection size: G ⅛”
- Material designs:
  Stainless steel
  Brass
- Explosion protection: None
- Product data sheet

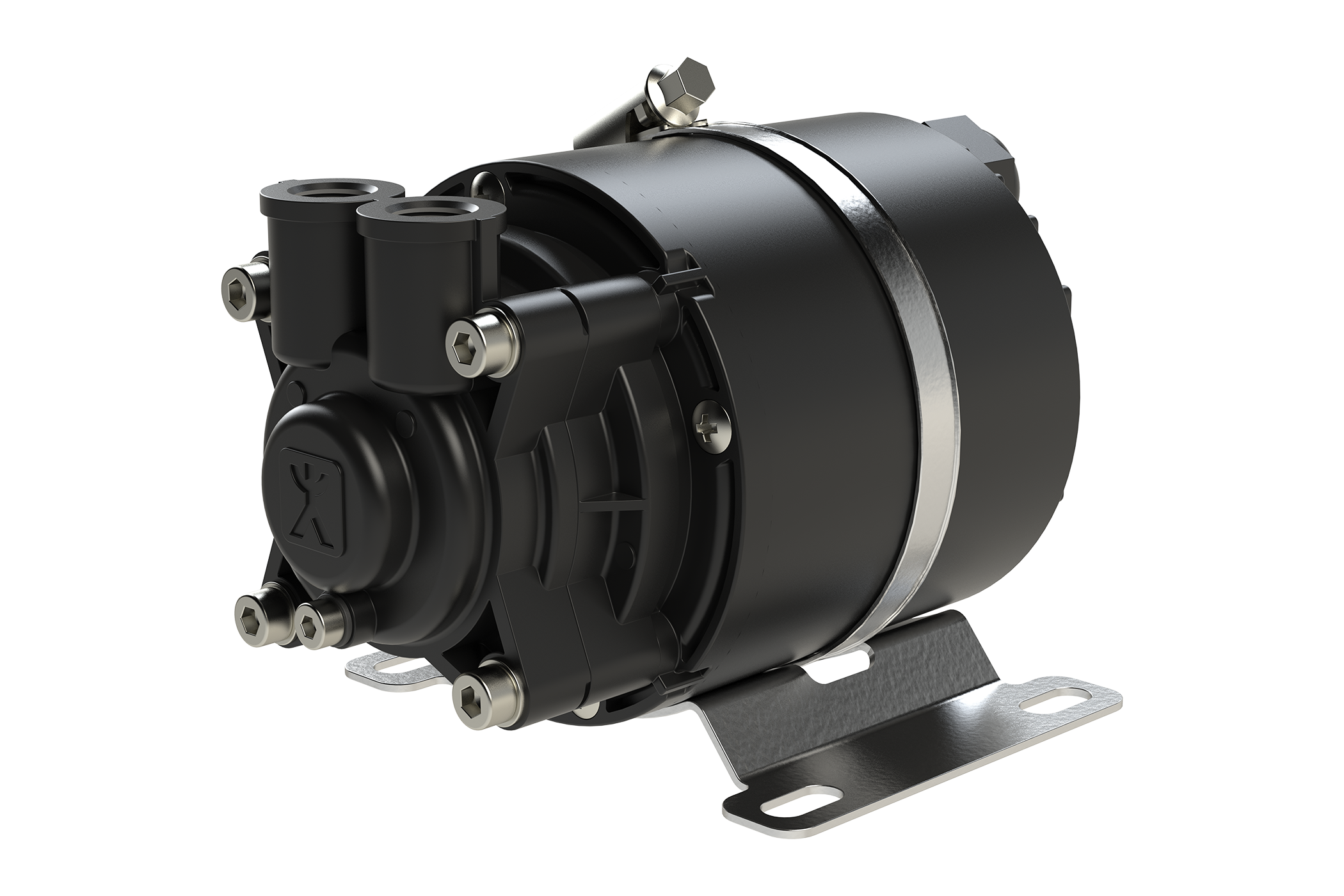

Black and silver electric motor with mounting bracket, viewed from side against black background.

Y-1638-MM Series

DC SI
Total head/pressure 3.00 - 57.00 m
Flow rate 0.30 - 9.00 l/min
- Regenerative turbine pump
- Canned motor pump
- Adjustable speed
- Compact
- Suitable for the delivery of gas shares
- Steep characteristic curve
- Long-lasting
- Medical technology
  - Computer tomographs
  - C-arms (X-ray machines)
- Product type: Regenerative turbine pump
- Shaft sealing:
  None
  Canned motor
- Pump design: Canned motor pump
- Typical media:
  Water max. +80 °C
  Oil max. +80 °C
  Water/glycol mixture max. +80 °C
- Self-priming: No
- Variable speed: Yes
- Total head: 3–57 m
- Flow rate: 0.3–9 l/min
- Nominal pressure: PN 6 – PN 10
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage: 24 V
  48 V on request
- Nominal motor power: 150 W
- Nominal motor speed: 2000 – 6000 rpm
- Suction-side connection design: Thread: G, NPT, Rc/PT
- Suction-side connection size: G ¼”
- Pressure-side connection design: Thread: G, NPT, Rc/PT
- Pressure-side connection size: G ¼”
- Material designs:
  Stainless steel
  PPS
- Explosion protection: None
- Product data sheet

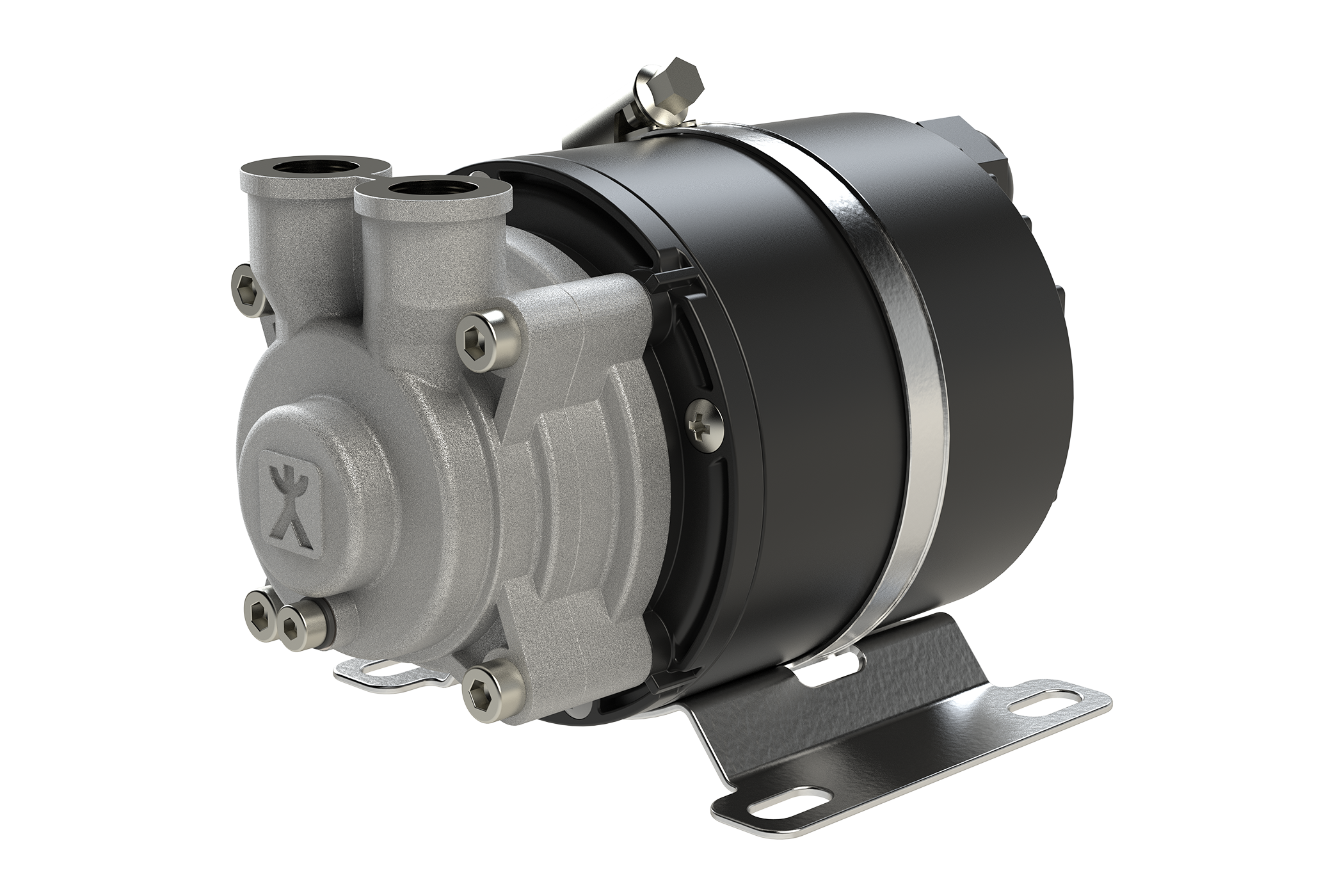

A mechanical component with a metallic gray front and a black cylindrical back, mounted on a metal bracket with two holes for screws.

Y-2640-MM Series

DC SI
Total head/pressure 3.00 - 36.00 m
Flow rate 1.00 - 20.00 l/min
- Regenerative turbine pump
- Canned motor pump
- Adjustable speed
- Compact
- Suitable for the delivery of gas shares
- Steep characteristic curve
- Long-lasting
- Medical technology
  - Computer tomographs
  - C-arms (X-ray machines)
- Product type: Regenerative turbine pump
- Shaft sealing:
  None
  Canned motor
- Pump design: Canned motor pump
- Typical media:
  Water max. +80 °C
  Oil max. +80 °C
  Water/glycol mixture max. +80 °C
- Self-priming: No
- Variable speed: Yes
- Total head: 3–36 m
- Flow rate: 1–20 l/min
- Nominal pressure: PN 10
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage:
  24 V
  48 V on request
- Nominal motor power: 150 W
- Nominal motor speed: 2000 – 6000 rpm
- Suction-side connection design: Thread: G, NPT, Rc/PT
- Suction-side connection size: G ¼”
- Pressure-side connection design: Thread: G, NPT, Rc/PT
- Pressure-side connection size: G ¼”
- Material designs:
  Stainless steel
- Explosion protection: None
- Product data sheet

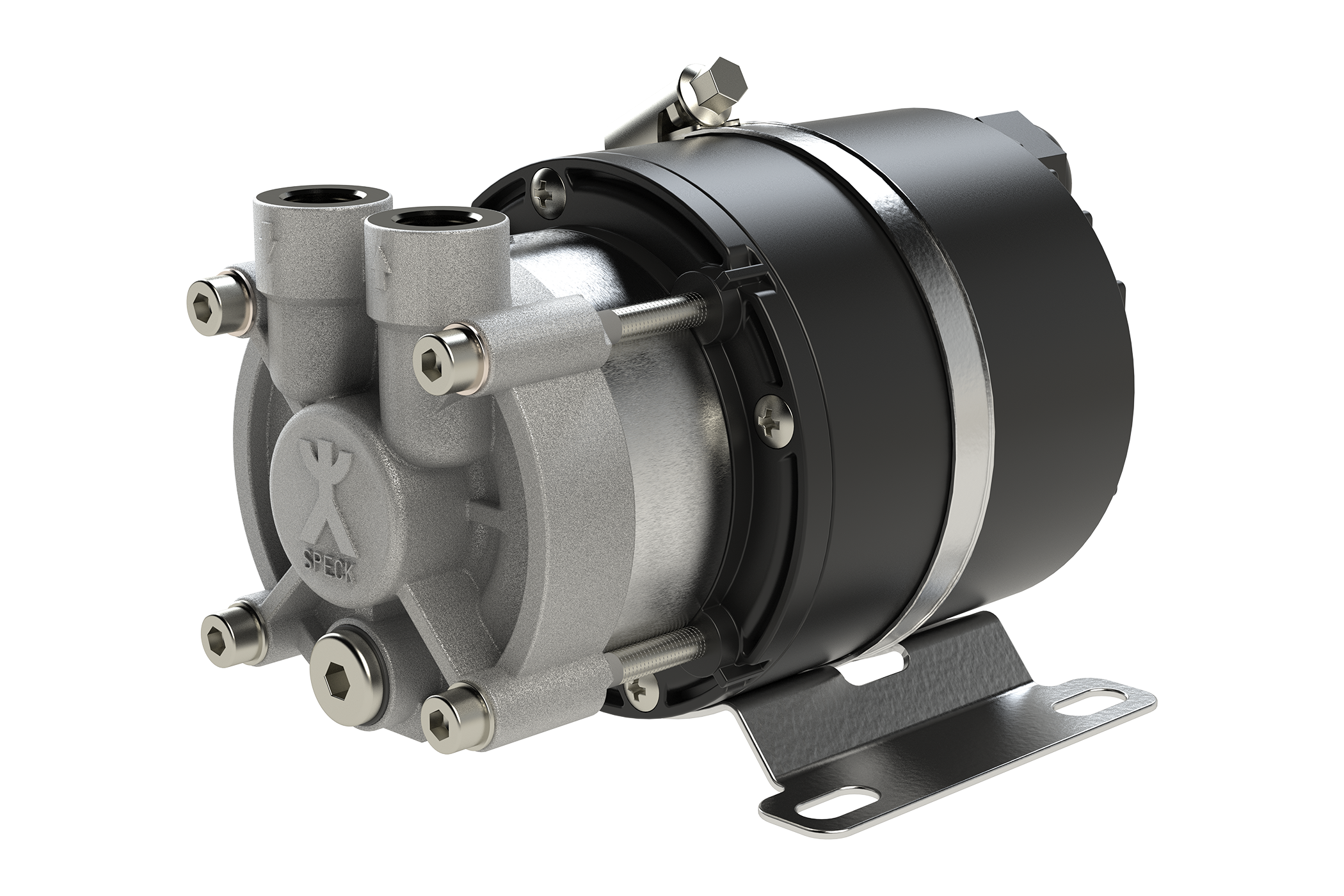

A mechanical device with metal and black components, likely a pump or motor, mounted on a metal bracket.

Y-2951W-MM Series

DC SI
Total head/pressure 3.00 - 44.00 m
Flow rate 1.00 - 17.00 l/min
- Regenerative turbine pump
- Canned motor pump
- Adjustable speed
- Compact
- Suitable for the delivery of gas shares
- Steep characteristic curve
- Long-lasting
- Temperature control
  - Laboratory tempering devices
  - Hot-water tempering devices
  - Oil tempering devices
  - Tool tempering for plastic injection moulding
- Industrial cooling
  - Chillers/cooling machines
  - Cooling appliances
  - Welding appliances
  - Plasma cutters
  - Industrial lasers
- Medical technology
  - Medical lasers
- Food and beverage industry
  - Reverse osmosis systems
- Road and rail
  - Delivery of potable and service water in carriages
- Product type: Regenerative turbine pump
- Shaft sealing:
  None
  Canned motor
- Pump design: Canned motor pump
- Typical media:
  Water max. +80 °C
  Oil max. +80 °C
  Water/glycol mixture max. +80 °C
- Self-priming: No
- Variable speed: Yes
- Total head: 3–44 m
- Flow rate: 1–17 l/min
- Nominal pressure: PN 10
- Motor current type: Direct current
- Type of motor: DC motor BLDC
- Nominal motor voltage:
  24 V
  48 V on request
- Nominal motor power: 150 W
- Nominal motor speed: 2000 – 5000 rpm
- Suction-side connection design: Thread: G, NPT, Rc/PT
- Suction-side connection size: G ¼”
- Pressure-side connection design: Thread: G, NPT, Rc/PT
- Pressure-side connection size: G ¼”
- Material designs:
  Stainless steel
  Brass
- Explosion protection: None
- Product data sheet
