Vacuum systems (also called vacuum units, vacuum equipment and compact systems) consist of additional integrated components alongside a vacuum pump.

Operational safety and optimum configuration thanks to ideally coordinated system components – for your application too.

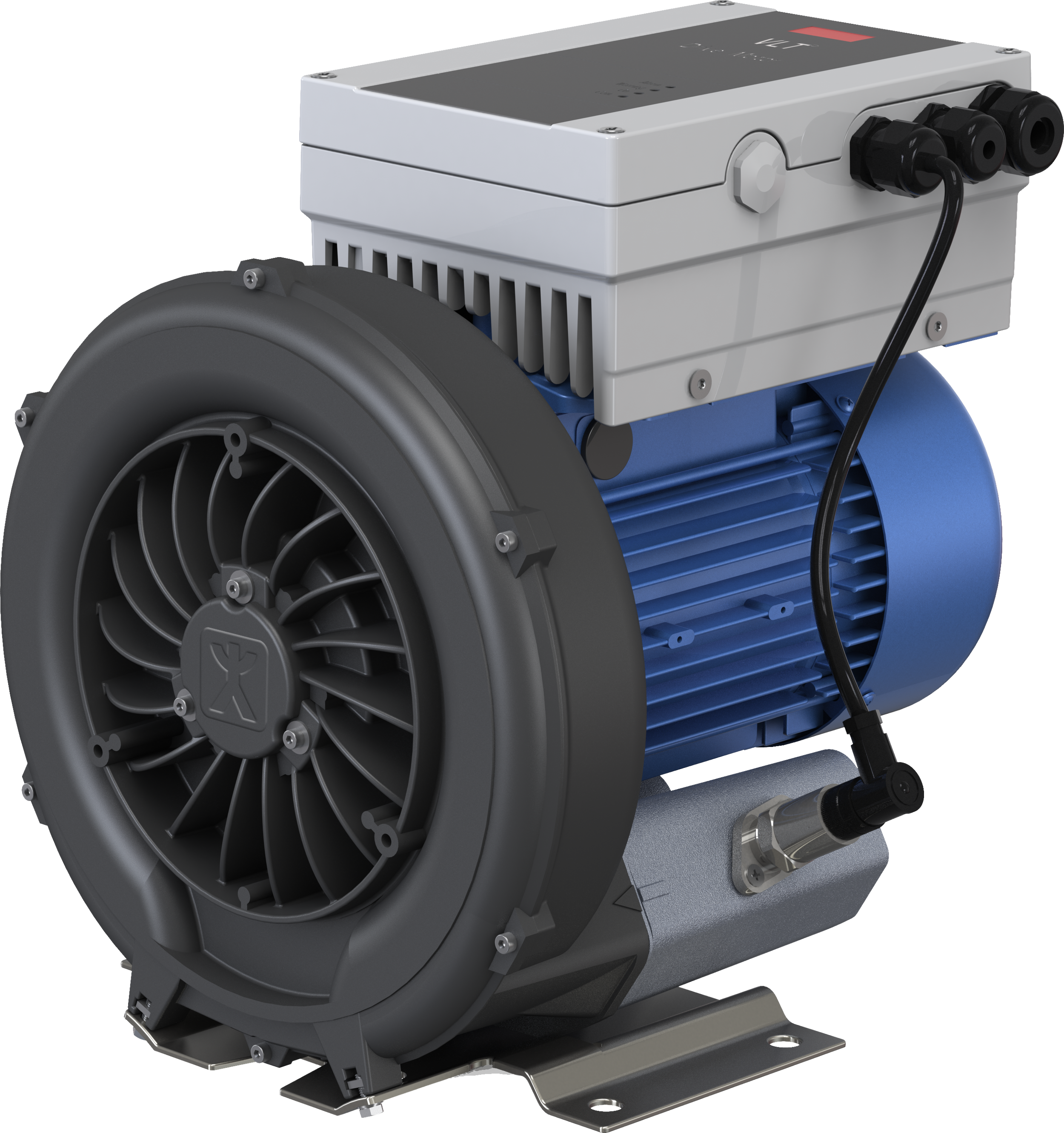

BlueLineVB

  • 50 Hz SI

    Suction capacity 0.00 - 500.00 m3/h

    Rel. negative pressure -260.00 - 0.00 mbar

    • Vacuum unit with side channel blower from the VB series

    • Speed-controlled

    • Designed for suction of moist air

    • Longer service life than conventional side channel blowers thanks to optimised, moisture-resistant bearings

    • On-demand vacuum generation for high efficiency

    • Easy to install in the place of existing side channel blowers

    • Decentralised system, intelligent control system, easy to operate

    • Plastics processing

      • Wet and dry calibration of plastic profiles

      • Extruder compounding

    • Product type: BluSystems vacuum unit

    • Shaft sealing: Radial shaft sealing

    • Pump design: Side channel blower

    • Typical media: Dry and moist gases

    • Variable speed: Yes

    • Max. rel. negative pressure: -260 mbar

    • Max. suction capacity – gas: 500 m3/h

    • Motor current type3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 1.5 – 4.3 kW

    • Motor frequency: 10 – 70 Hz

    • Suction-side connection design: Threaded

    • Suction-side connection size: G 1½”– 2”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G 1½”– 2”

    • Material designs:
      Aluminium

    • Explosion protection:
      None

Enquire now

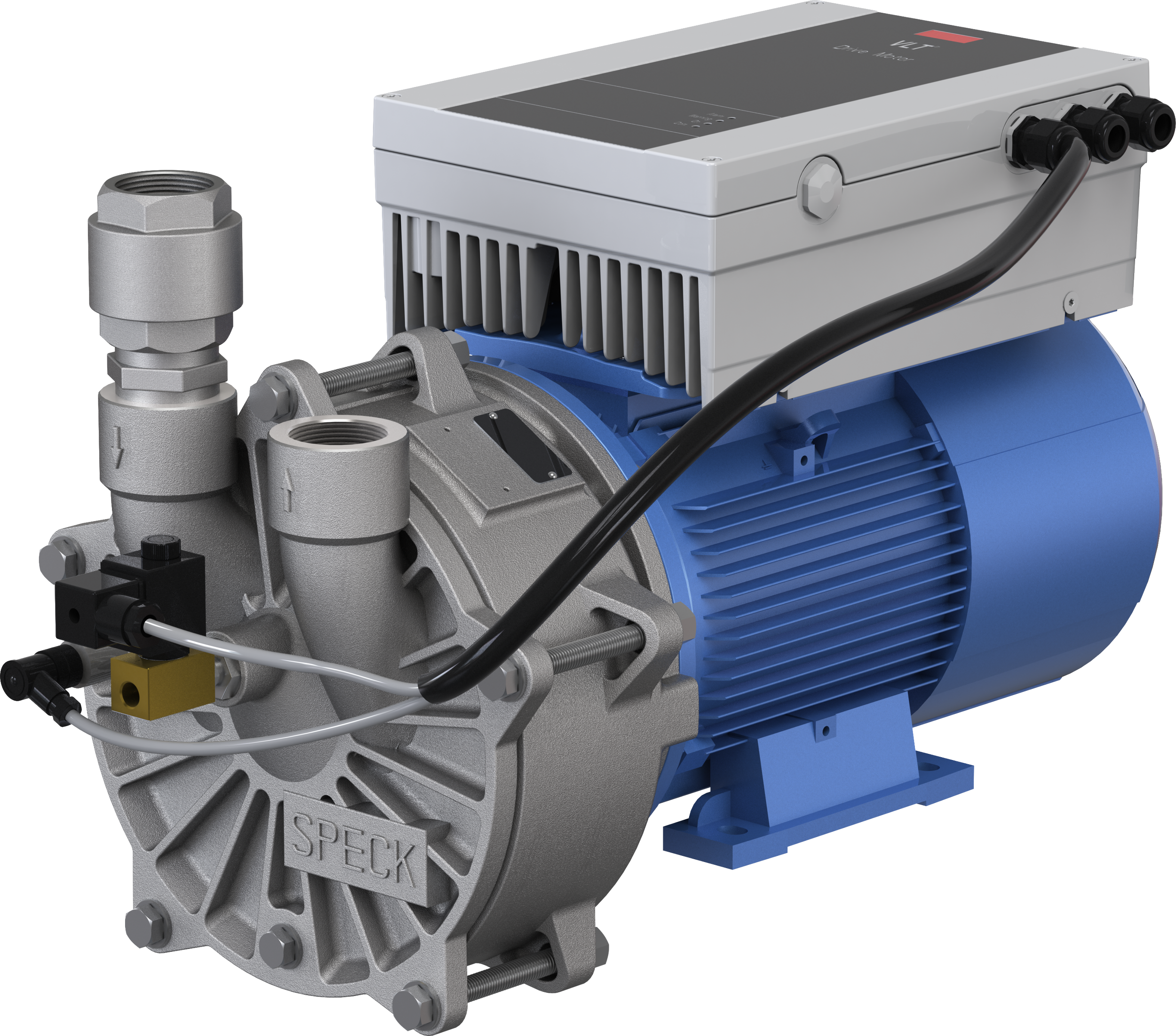

BluLineVG

  • 50 Hz SI

    Suction capacity 0.00 - 146.00 m3/h

    Rel. negative pressure -930.00 - 0.00 mbar

    • Vacuum unit with liquid ring vacuum pump from the VG series

    • Speed-controlled

    • Designed for suction of air with low levels of water

    • On-demand vacuum generation for high efficiency

    • Easy to install in the place of existing vacuum pumps

    • Decentralised system, intelligent control system, easy to operate

    • Plastics processing

      • Wet and dry calibration of plastic profiles

      • Extruder compounding

    • Product type: BluSystems vacuum unit

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump (liquid ring vacuum pump)

    • Typical media: Gases with water shares

    • Variable speed: Yes

    • Max. rel. negative pressure: 930 mbar

    • Max. suction capacity - gas: 146 m3/h

    • Max. suction capacity – water: 2.5 m3/h

    • Motor current type3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 1.5 – 5.5 kW

    • Motor frequency: 20 – 60 Hz

    • Suction-side connection design: Threaded
      Flange in acc. with DIN EN 1092 and ANSI B 16.5

    • Suction-side connection size:
      G 1” – G 2½”
      DN 40 – DN 50

    • Pressure-side connection design: Threaded
      Flange in acc. with DIN EN 1092 and ANSI B 16.5

    • Pressure-side connection size:
      G 1” – G 2½”
      DN 40 – DN 50

    • Material designs:
      Stainless steel
      Grey cast iron

    • Explosion protection:
      None

Enquire now

BluLineVN

  • 50 Hz SI

    Suction capacity 0.00 - 150.00 m3/h

    Rel. negative pressure -930.00 - 0.00 mbar

    • Vacuum unit with liquid ring vacuum pump from the VN series

    • Speed-controlled

    • Designed for suction of air with high levels of water

    • On-demand vacuum generation for high efficiency

    • Easy to install in the place of existing vacuum pumps

    • Decentralised system, intelligent control system, easy to operate

    • Plastics processing

      • Wet and dry calibration of plastic profiles

      • Extruder compounding

    • Product type: BluSystems vacuum unit

    • Shaft sealing: Mechanical seal

    • Pump design: Close-coupled pump (liquid ring vacuum pump with hub control)

    • Typical media: Gas/water mixtures

    • Variable speed: Yes

    • Max. rel. negative pressure: 930 mbar

    • Max. suction capacity – gas: 150 m3/h

    • Max. suction capacity – water: 4 m3/h

    • Motor current type3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 3.0 – 5.5 kW

    • Motor frequency: 20 – 60 Hz

    • Suction-side connection design: Threaded

    • Suction-side connection size: G 1½”

    • Pressure-side connection design: Threaded

    • Pressure-side connection size: G 1½”

    • Material designs:
      Stainless steel
      Grey cast iron

    • Explosion protection:
      None

Enquire now

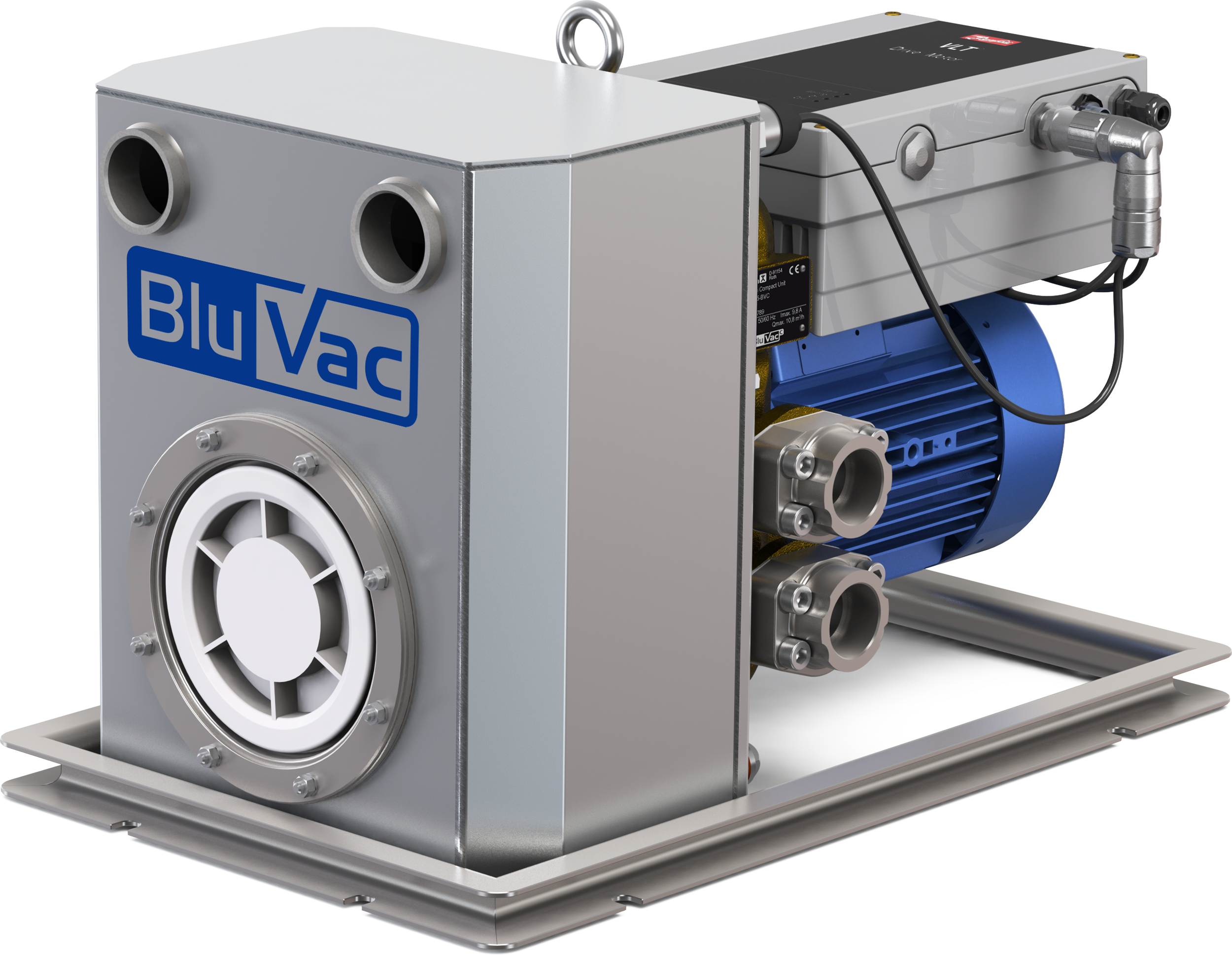

BluVacCompact

  • 50 Hz SI

    Suction capacity 0.00 - 105.00 m3/h

    Rel. negative pressure -930.00 - 0.00 mbar

    • Vacuum unit with bi-functional vacuum water pump

    • Speed-controlled

    • Built-in, stainless steel separator

    • Designed for suction of air-water mixes

    • Compact design

    • On-demand vacuum generation for high efficiency

    • Easy to install in the place of existing vacuum pumps

    • Decentralised system, intelligent control system, easy to operate

    • Plastics processing

      • Wet and dry calibration of plastic profiles

      • Extruder compounding

    • Product type: BluSystems vacuum unit

    • Shaft sealing: Mechanical seal and packing ring

    • Pump design: Bi-functional close-coupled pump (liquid ring vacuum pump/water pump) with built-in separator

    • Typical media: Gas/water mixtures

    • Variable speed: Yes

    • Max. rel. negative pressure: 930 mbar

    • Max. suction capacity – gas: 105 m3/h

    • Min. suction capacity – water: 6 m3/h

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 2.8 – 4.3 kW

    • Motor frequency: 7 – 67 Hz

    • Suction-side connection design: Threaded

    • Suction-side connection size: G 1½”

    • Pressure-side connection design: SAE

    • Pressure-side connection size: SAE 1¼”

    • Material designs:
      Grey cast iron
      Non-ferrous metal

    • Explosion protection:
      None

  • Brochure – Vacuum units for profile extrusion

Enquire now

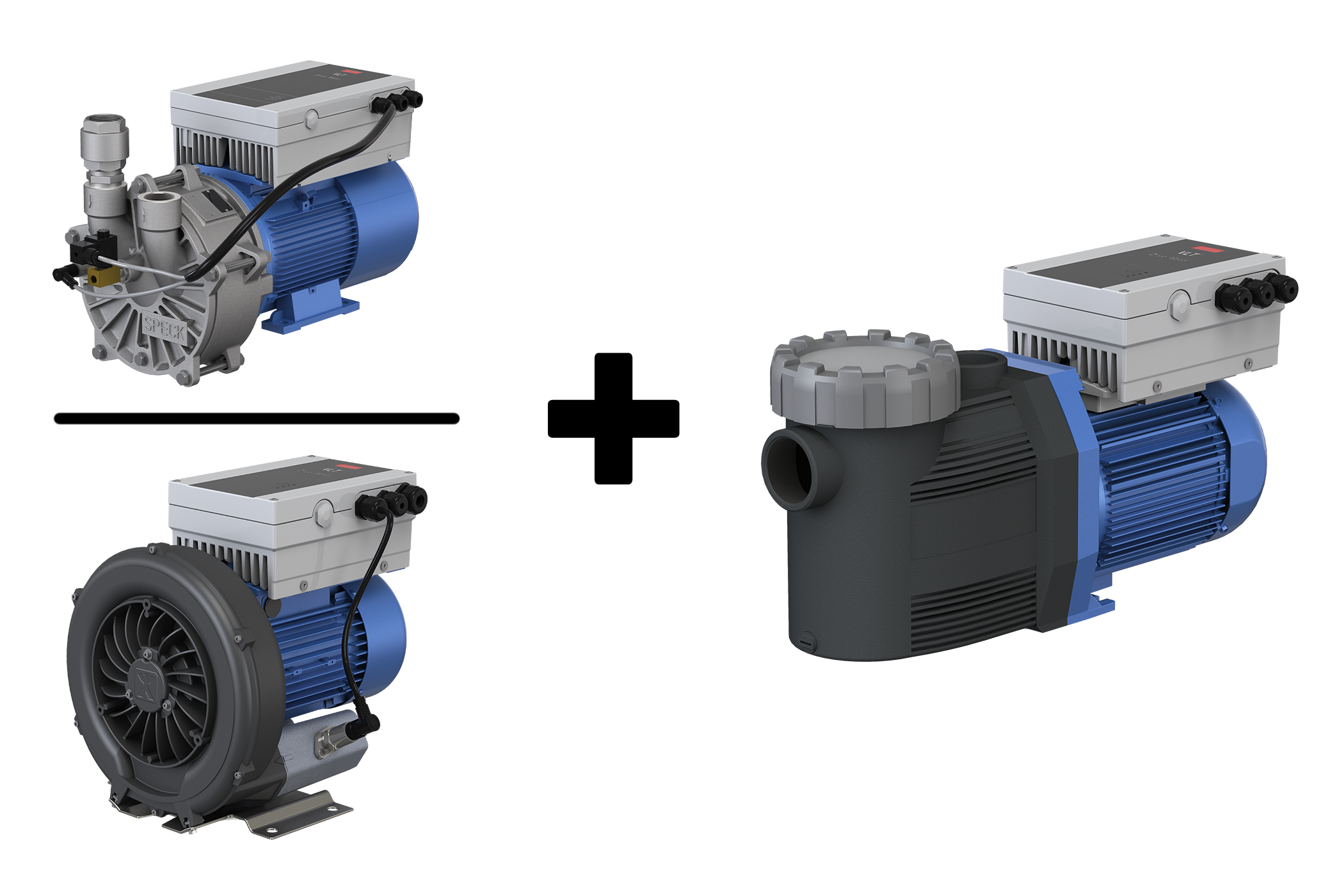

BluVacD

  • 50 Hz SI

    Suction capacity 0.00 - 500.00 m3/h

    Rel. negative pressure -930.00 - 0.00 mbar

    • Decentralised vacuum unit

    • Speed-controlled

    • Designed for parallel suction of air and water from an on-site separator (e.g. vacuum tank) in the calibration table

    • Energy-saving vacuum generation thanks to speed control on the vacuum pump or the side channel blower

    • Energy-saving water discharge thanks to speed-controlled discharge pump from the ME-...-BVD series

    • On-demand vacuum generation for high efficiency

    • Easy to install in the place of existing vacuum pumps

    • Decentralised system, intelligent control system, easy to operate

    • Plastics processing

      • Wet and dry calibration of plastic profiles

      • Extruder compounding

    • Product type: BluSystems vacuum unit

    • Shaft sealing: Mechanical seal

    • Pump design: Side channel blower or liquid ring vacuum pump with additional water pump

    • Typical media: Moist gases or gas/water mixtures

    • Variable speed: Yes

    • Performance data:
      Dependent on components:
      Side channel blower (VB)
      Liquid ring vacuum pump (VG)
      Water pump (ME)

    • VB-...-BVD: Max. rel. negative pressure: 260 mbar

    • VB-...-BVD: Max. suction capacity – gas: 500 m3/h

    • VG-...-BVD: Max. rel. negative pressure: 930 mbar

    • VG-...-BVD: Max. suction capacity – gas: 146 m3/h

    • ME-...-BVD: Max. suction capacity – water: 30 m3/h

    • Explosion protection:
      None

Enquire now
