Side channel pumps (also known as turbine pumps) are hydraulic continuous-flow machines and a sub-type of centrifugal pump. They are classed as hydrodynamic pumps.

For decades now, Speck has been developing and manufacturing side channel pumps and completely revised the modular system of the SK and ASK model series in 2015.

ASKG Series

  • 50 Hz SI

    Total head/pressure 5.00 - 320.00 m

    Flow rate 7.00 - 583.00 l/min

    • Side channel pump

    • Multi-stage

    • With NPSH pre-stage

    • Mechanical seal cooled or non-cooled

    • Packing gland

    • Free-flying shaft, bearing support version or bracket pump

    • Self-priming

    • Suitable for the delivery of gas shares

    • Suitable for pumping fluids under physically unfavourable suction-side conditions

    • Suitable for pumping of fluids close to boiling point

    • Suitable for pumping of fluids with no abrasive impurities

    • Medium-specific designs, e.g. for acids, lyes, fuels, glycol, glycerine, hot water, oil, etc.

    • Heating and cooling technology

      • Filling and emptying thermal oil systems

      • Boiler

    • Plastics processing

      • Polystyrene moulded parts processing

    • Shipping

      • Freshwater transportation

      • Saltwater transportation

      • Compressor cooling with water/glycol mixtures

    • Energy technology

      • Feeding boilers in boiler systems and steam generators

      • Tank farms

      • Transportation of liquid gas

      • Tanker filling

      • Pumping of fuel in emergency power plants

    • Chemical and pharmaceutical industry

      • Condensate drainage

    • Product type: Side channel pump

    • Shaft sealing/coupling: Mechanical seal

    • Pump design: Free-flying shaft or bracket pump

    • Typical media:
      Water (max: . +180 °C)
      Oil (min. -100 °C, max. +350 °C)

    • Self-priming: Yes

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head:
      5–320 m

    • Flow rate:
      0.4–35.0 m3/h

    • Nominal pressure:
      PN 40

    • Nominal motor speed:
      1450 rpm

    • Suction-side connection design: Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs

    • Suction-side connection size:
      DN 40 – DN 100

    • Pressure-side connection design: Flange in acc. with DIN EN 1092, Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs

    • Pressure-side connection size:
      DN 20 – DN 65

    • Material designs:
      Stainless steel
      Bronze
      Spheroidal graphite cast iron

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now

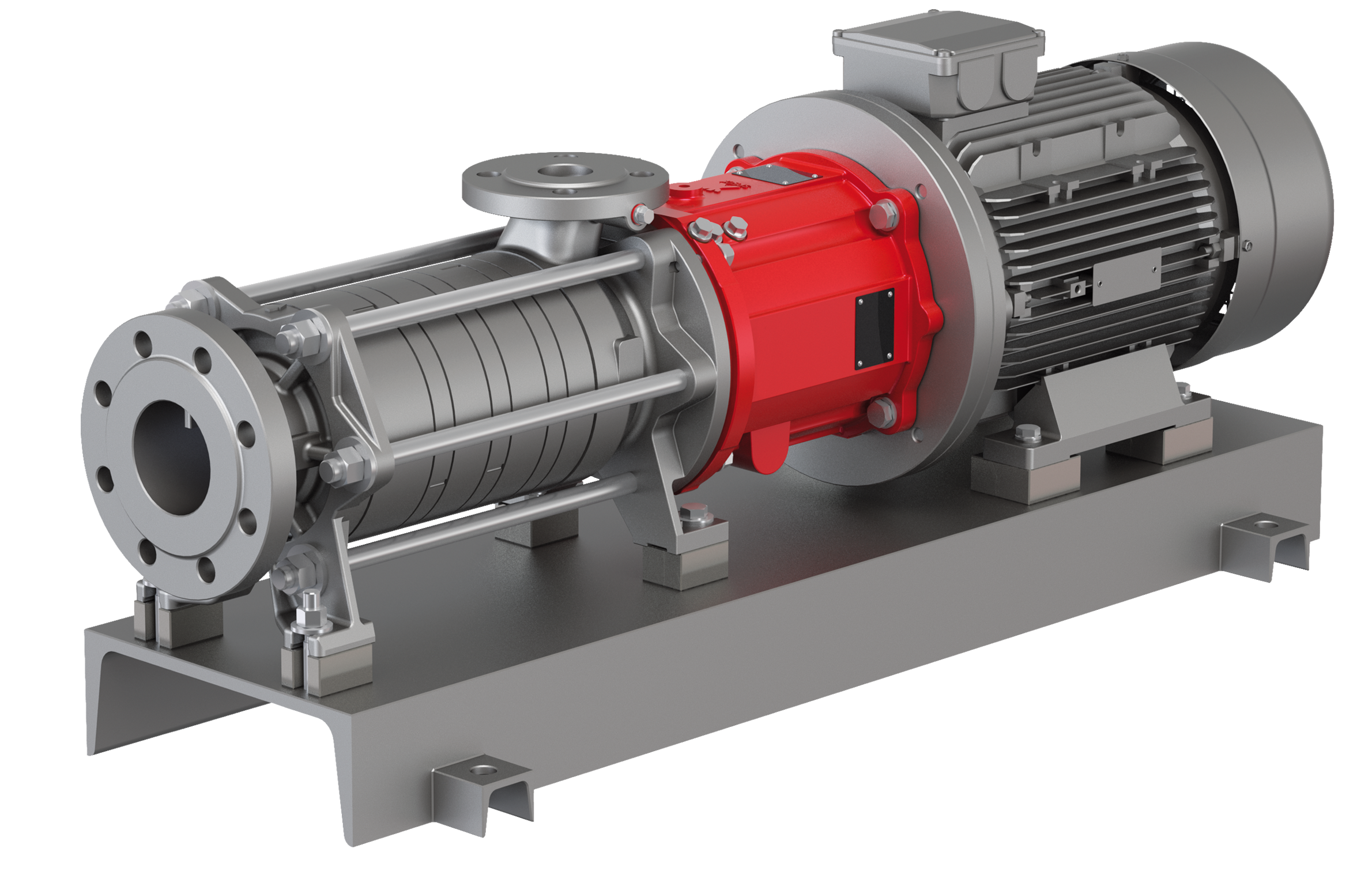

ASKM Series

  • 50 Hz SI

    Total head/pressure 5.00 - 320.00 m

    Flow rate 7.00 - 583.00 l/min

    • Side channel pump

    • Multi-stage

    • With NPSH pre-stage

    • Magnetic coupling with alloy C-4 or ceramic separating can

    • Free-flying shaft, bearing support version or bracket pump

    • Self-priming

    • Suitable for the delivery of gas shares

    • Suitable for pumping fluids under physically unfavourable suction-side conditions

    • Suitable for pumping of fluids close to boiling point

    • Suitable for pumping of fluids with no abrasive impurities

    • Medium-specific designs, e.g. for acids, lyes, fuels, glycol, glycerine, hot water, oil, etc.

    • Heating and cooling technology

      • Filling and emptying thermal oil systems

      • Boiler

    • Plastics processing

      • Polystyrene moulded parts processing

    • Shipping

      • Freshwater transportation

      • Saltwater transportation

      • Compressor cooling with water/glycol mixtures

    • Energy technology

      • Feeding boilers in boiler systems and steam generators

      • Tank farms

      • Transportation of liquid gas

      • Tanker filling

      • Pumping of fuel in emergency power plants

    • Chemical and pharmaceutical industry

      • Condensate drainage

    • Product type: Side channel pump

    • Shaft sealing/coupling: Magnetic coupling

    • Pump design: Free-flying shaft or bracket pump

    • Typical media:
      Water (max: . +180 °C)
      Oil (min. -100 °C, max. +350 °C)

    • Self-priming: Yes

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head:
      5–320 m

    • Flow rate:
      0.4–35.0 m3/h

    • Nominal pressure:
      PN 40

    • Nominal motor speed:
      1450 rpm

    • Suction-side connection design: Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs

    • Suction-side connection size:
      DN 40 – DN 100

    • Pressure-side connection design: Flange in acc. with DIN EN 1092, Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs

    • Pressure-side connection size:
      DN 20 – DN 65

    • Material designs:
      Stainless steel
      Bronze
      Spheroidal graphite cast iron

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now

GY-028 Series

  • 50 Hz SI

    Total head/pressure 5.00 - 170.00 m

    Flow rate 3.00 - 34.00 l/min

    • Side channel pump

    • Multi-stage

    • Mechanical seal

    • Bracket pump

    • Self-priming

    • Suitable for the delivery of gas shares

    • Suitable for pumping of fluids with no abrasive impurities

    • Medium-specific designs

    • Road and rail

      • Street sweepers

      • Delivery of potable and service water in carriages

      • Fuel pumping

    • Shipping

      • Freshwater transportation

    • Energy technology

      • Feeding boilers in boiler systems and steam generators

      • Tank farms

      • Pumping of fuel in emergency power plants

    • Chemical and pharmaceutical industry

      • Condensate drainage

    • Product type: Side channel pump

    • Shaft sealing: Mechanical seal

    • Pump design: Bracket pump

    • Typical media:
      Water (max. +120 °C)

    • Self-priming: Yes

    • Variable speed: Frequency-converter-compatible motor on request

    • Total head:
      5–170 m

    • Flow rate:
      3–34 l/min

    • Nominal pressure: PN 25

    • Motor current type: 3~

    • Type of motor: Asynchronous motor

    • Nominal motor power: 0.55 kW – 1.50 kW

    • Nominal motor speed: 2800 rpm

    • Suction-side connection design: Flange in acc. with DIN EN 1092, Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs

    • Suction-side connection size:
      G ¾”

    • Pressure-side connection design: Flange in acc. with DIN EN 1092, Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs

    • Pressure-side connection size:
      G ¾”

    • Material designs:
      Stainless steel
      Grey cast iron

    • Explosion protection:
      None
      II 3G, II 3D
      II 2G, II 2D

Enquire now
